earth terminal WTN 95 PE
Article number 5D.S95.9055.0

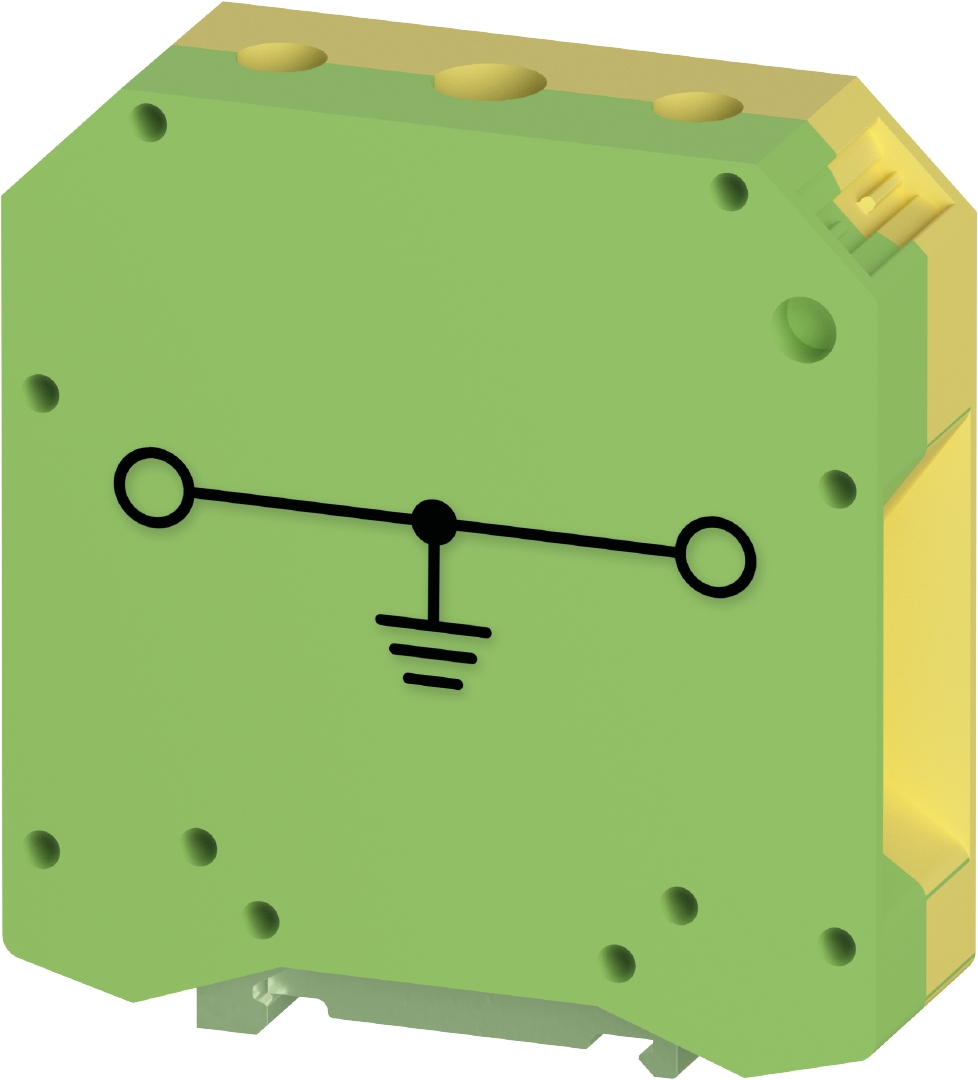

earth terminal WTN 95 PE rated voltage 1000 V, screw connection, number of levels 1, number of clamp positions per level 3, nominal cross section 95 mm², connectable conductor cross section fine stranded without cable end sleeve 35mm² - 95mm², mounting method DIN rail (top hat rail), color green/yellow, width/grid dimension 25 mm, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
5D.S95.9055.0
|
|---|---|
|
article description
|
|
|
EAN
|
4049088725715
|
|
Minimum order quantitiy
|
10
|
|
country of origin
|
CN
|
|
customs tariff number
|
85369010
|
packaging dimensions
|
length packed
|
160 mm
|
|---|---|
|
width packed
|
135 mm
|
|
height packed
|
105 mm
|
|
gross weight packed
|
2759 g
|
|
volume packed
|
2268 ccm
|
|
net weight single part
|
268.17 g
|
|
volume single part
|
226.8 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
10 piece(s)
|
certificates / approvals
general
|
nominal cross section
|
95 mm²
|
|---|---|
|
color
|
green/yellow
|
|
number of levels
|
1
|
|
number of clamp positions per level
|
3
|
|
width/grid dimension
|
25 mm
|
|
insulating housing
|
PA
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
mounting method
|
DIN rail (top hat rail)
|
|
connection type
|
screw connection
|
|
number of clamp positions per level
|
3
|
|
mounting method
|
DIN rail (top hat rail)
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
halogen free
|
yes
|
technical data
|
rated voltage
|
1000 V
|
|---|---|
|
rated impulse voltage
|
8 kV
|
|
pollution degree
|
3
|
|
closing plate required
|
no
|
|
length
|
80 mm
|
|
type of insulation material
|
thermoplastic
|
|
width
|
25 mm
|
|
height
|
89.9 mm
|
|
operating temperature
|
-40 - 55 °C
|
connection data
|
connection type
|
screw connection
|
|---|---|
|
connection type 1
|
screw connection
|
|
minimum cross section solid
|
35 mm²
|
|
maximum cross section solid
|
95 mm²
|
|
minimum cross section fine stranded
|
35 mm²
|
|
maximum cross section fine stranded
|
95 mm²
|
|
minumum conductor cross section (flex., stranded) with cable end sleeve
|
35 mm²
|
|
maximum conductor cross section (flex., stranded) with cable end sleeve
|
95 mm²
|
|
wire strip length
|
25 mm
|
|
torque conductor mounting
|
17.9 Nm
|
technical data UL/CSA
|
cross section UL
|
2-4/0 AWG
|
|---|---|
|
voltage UL
|
600 V
|
|
cross section CSA
|
2-4/0 AWG
|
|
voltage CSA
|
600 V
|
classification
|
ETIM 9.0
|
EC000901
|
|---|
product compliance
|
REACH-SVHC conformity status
|
compliant
|
|---|
