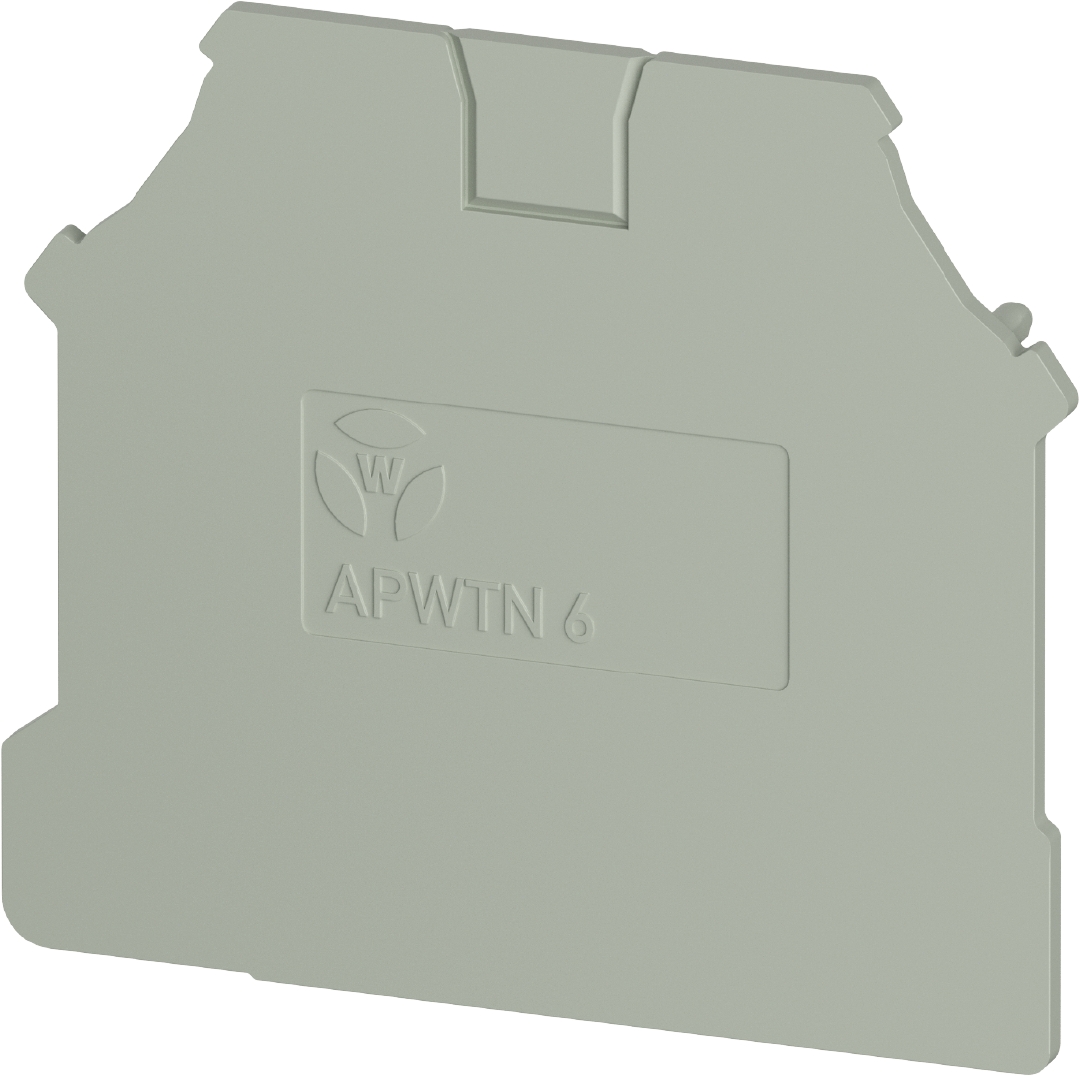

end plate APWTN 6
Article number 0D.S06.2055.0
end plate inflammability class of insulation material acc. with ul94 V0, type of end plate yes, thickness 1.2 mm, length 42.8 mm, color grey
commercial data
|
article number
|
0D.S06.2055.0
|
|---|---|
|
article description
|
|
|
EAN
|
4049088723278
|
|
Minimum order quantitiy
|
50
|
|
country of origin
|
CN
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
135 mm
|
|---|---|
|
width packed
|
105 mm
|
|
height packed
|
40 mm
|
|
gross weight packed
|
116 g
|
|
volume packed
|
567 ccm
|
|
net weight single part
|
1.64 g
|
|
volume single part
|
11.34 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
50 piece(s)
|
general
|
color
|
grey
|
|---|---|
|
type of end plate
|
yes
|
|
thickness
|
1.2 mm
|
|
snap in
|
yes
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
1.2 mm
|
|
length
|
43.8 mm
|
|
material
|
plastic
|
|
height
|
39.4 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000886
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
