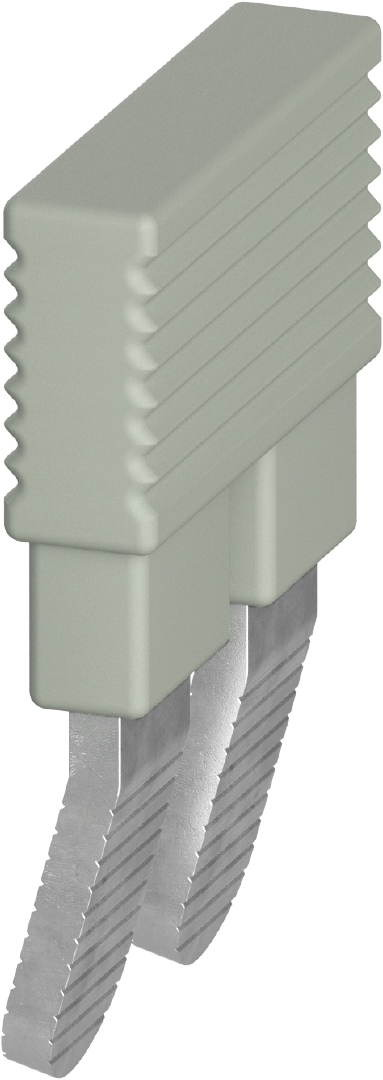

insert bridge IVB WTN 10-2 IN
Article number 0D.S11.3227.0
insert bridge IVB WTN 10-2 IN modular spacing 10 mm, insulated yes, number of poles 2, color grey, height 26.7 mm, mounting method screwable, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.S11.3227.0
|
|---|---|
|
article description
|
|
|
EAN
|
4049088723667
|
|
Minimum order quantitiy
|
100
|
|
country of origin
|
CN
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
150 mm
|
|---|---|
|
width packed
|
100 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
51 g
|
|
volume packed
|
150 ccm
|
|
net weight single part
|
5 g
|
|
volume single part
|
9.21 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
10 piece(s)
|
general
|
color
|
grey
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
18.4 mm
|
|
length
|
4.5 mm
|
|
modular spacing
|
10 mm
|
|
number of bridged clamps
|
2
|
|
mounting method
|
screwable
|
|
insulated
|
yes
|
|
model
|
cross connector
|
|
height
|
26.7 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000489
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 196.96kB | |
|
|
- | 197.28kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 61.37kB | |
|
|
- | 59.31kB | TIF |
|
|
- | 1.49MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 618.54kB | |
|
|
- | 1.23MB | STP |
|
|
- | 2.58MB | IGS |
|
|
- | 528.32kB | JT |
