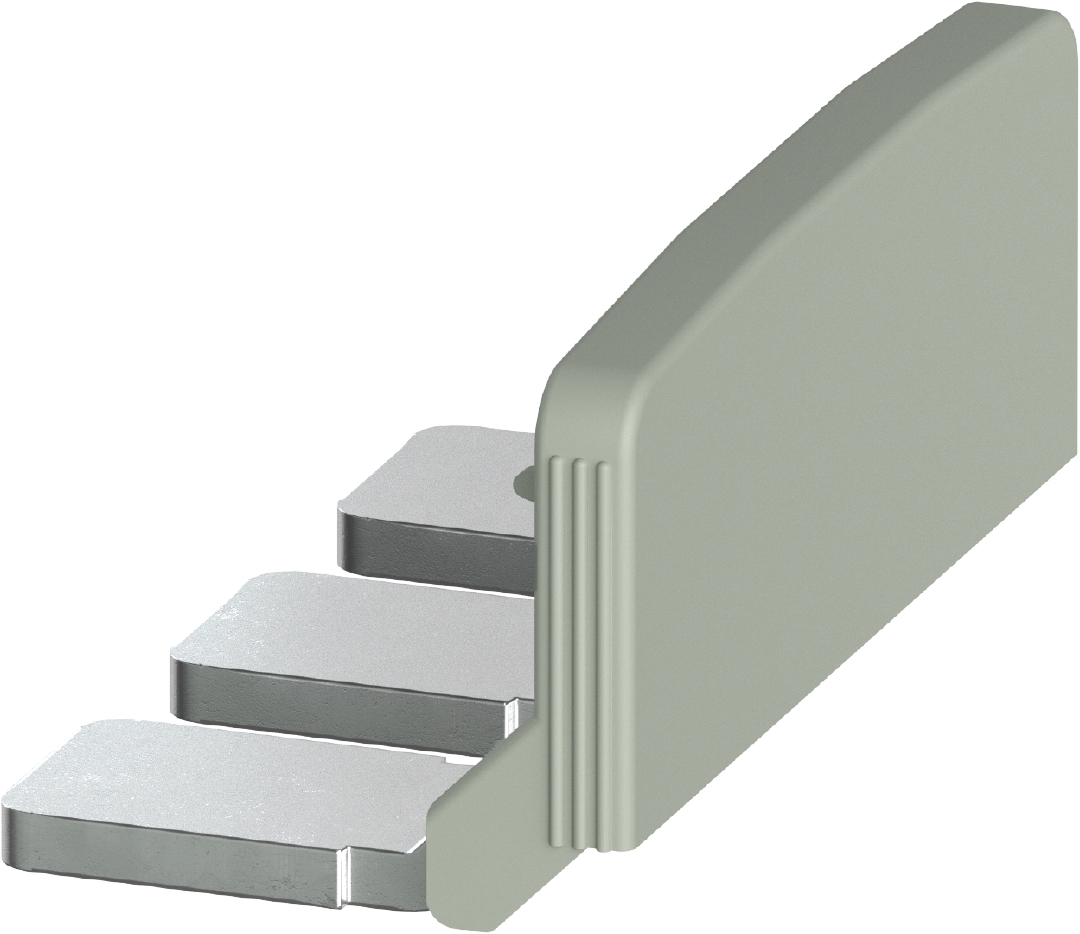

insert bridge IVB WTN 150-3 IN
Article number 0D.S51.3327.0
insert bridge IVB WTN 150-3 IN modular spacing 31 mm, insulated yes, number of poles 3, color grey, height 39.6 mm, mounting method screwable, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.S51.3327.0
|
|---|---|
|
article description
|
|
|
EAN
|
4049088724053
|
|
Minimum order quantitiy
|
50
|
|
country of origin
|
CN
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
210 mm
|
|---|---|
|
width packed
|
140 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
160.6 g
|
|
volume packed
|
294 ccm
|
|
net weight single part
|
159.6 g
|
|
volume single part
|
115.38 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
1 piece(s)
|
general
|
color
|
grey
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
85.6 mm
|
|
length
|
44.5 mm
|
|
modular spacing
|
31 mm
|
|
number of bridged clamps
|
3
|
|
mounting method
|
screwable
|
|
insulated
|
yes
|
|
model
|
cross connector
|
|
height
|
39.6 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000489
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 196.96kB | |
|
|
- | 197.29kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 57.64kB | |
|
|
- | 55.55kB | TIF |
|
|
- | 1.11MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 408.81kB | |
|
|
- | 707.17kB | STP |
|
|
- | 1.59MB | IGS |
|
|
- | 331.85kB | JT |
