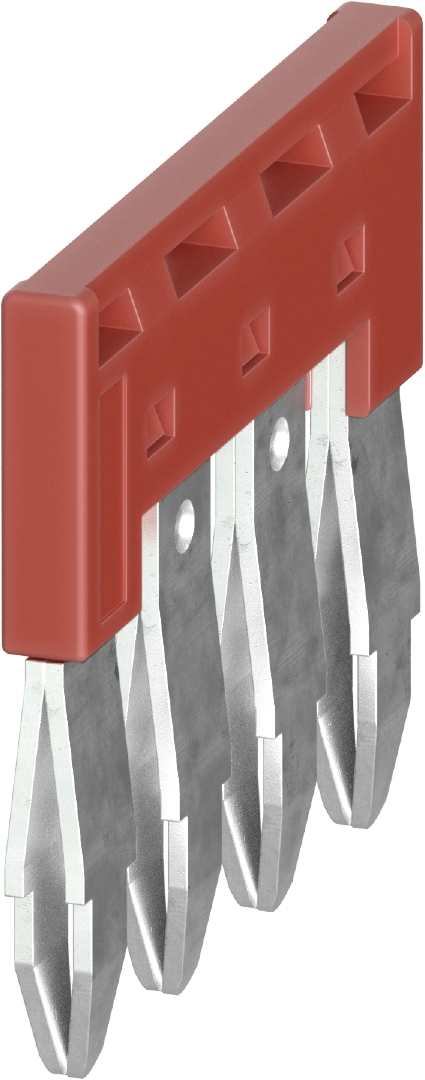

jumper bar IVB WTN 6-4
Article number 0D.S06.3427.5
jumper bar IVB WTN 6-4 modular spacing 8 mm, insulated yes, number of poles 4, color red, height 24.9 mm, mounting method pluggable, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.S06.3427.5
|
|---|---|
|
article description
|
|
|
EAN
|
4049088723353
|
|
Minimum order quantitiy
|
200
|
|
country of origin
|
CN
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
185 mm
|
|---|---|
|
width packed
|
120 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
211 g
|
|
volume packed
|
222 ccm
|
|
net weight single part
|
4.2 g
|
|
volume single part
|
4.61 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
50 piece(s)
|
general
|
color
|
red
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
28.8 mm
|
|
length
|
2.7 mm
|
|
modular spacing
|
8 mm
|
|
number of bridged clamps
|
4
|
|
mounting method
|
pluggable
|
|
insulated
|
yes
|
|
model
|
cross connector
|
|
height
|
24.9 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000489
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 196.96kB | |
|
|
- | 197.28kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 55.07kB | |
|
|
- | 53.08kB | TIF |
|
|
- | 1.09MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 312.28kB | |
|
|
- | 1.05MB | STP |
|
|
- | 2.52MB | IGS |
|
|
- | 428.28kB | JT |
