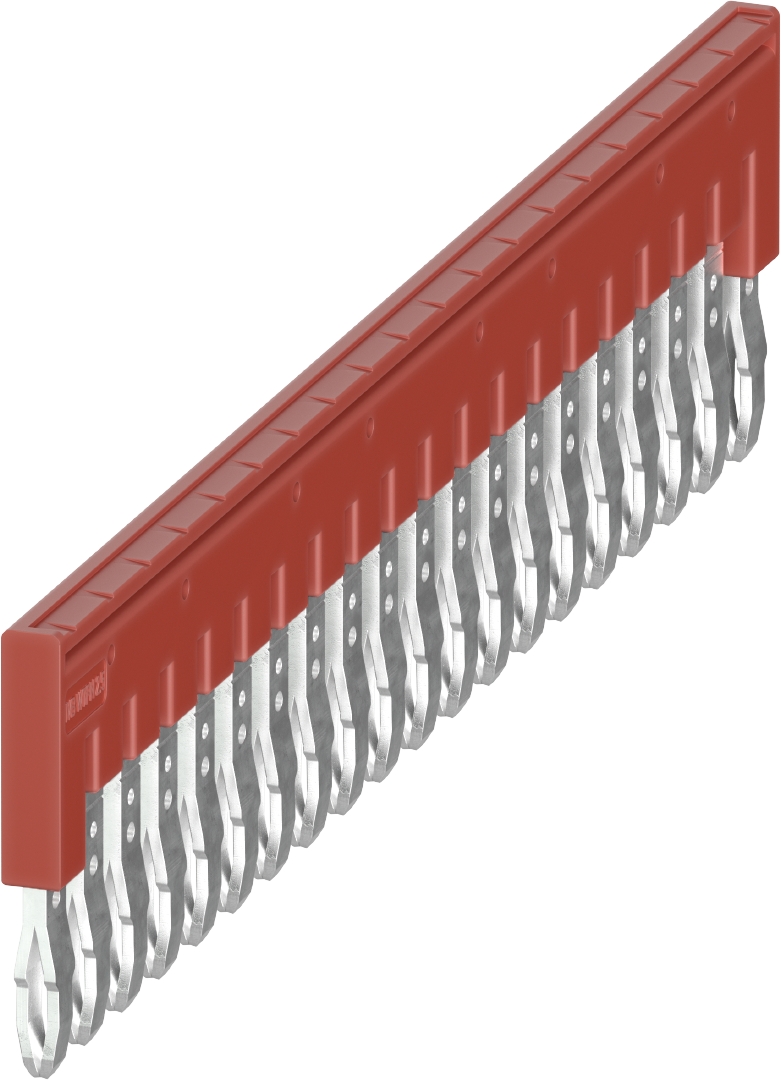

jumper bar IVB WTPN 2,5-20
Article number 0D.203.5027.5
jumper bar IVB WTPN 2,5-20 modular spacing 5.1 mm, insulated yes, number of poles 20, color red, height 23 mm, mounting method pluggable, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.203.5027.5
|
|---|---|
|
article description
|
|
|
EAN
|
4049088729843
|
|
Minimum order quantitiy
|
100
|
|
country of origin
|
CN
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
185 mm
|
|---|---|
|
width packed
|
120 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
141.4 g
|
|
volume packed
|
222 ccm
|
|
net weight single part
|
14.04 g
|
|
volume single part
|
17.989 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
10 piece(s)
|
general
|
color
|
red
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
109.4 mm
|
|
length
|
3 mm
|
|
modular spacing
|
5.1 mm
|
|
number of bridged clamps
|
20
|
|
mounting method
|
pluggable
|
|
insulated
|
yes
|
|
model
|
cross connector
|
|
height
|
23 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000489
|
|---|
product compliance
|
REACH-SVHC conformity status
|
compliant
|
|---|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 197.06kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 60.88kB | |
|
|
- | 58.77kB | TIF |
|
|
- | 1.25MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 412.31kB | |
|
|
- | 1.86MB | STP |
|
|
- | 5.57MB | IGS |
|
|
- | 885.08kB | JT |
