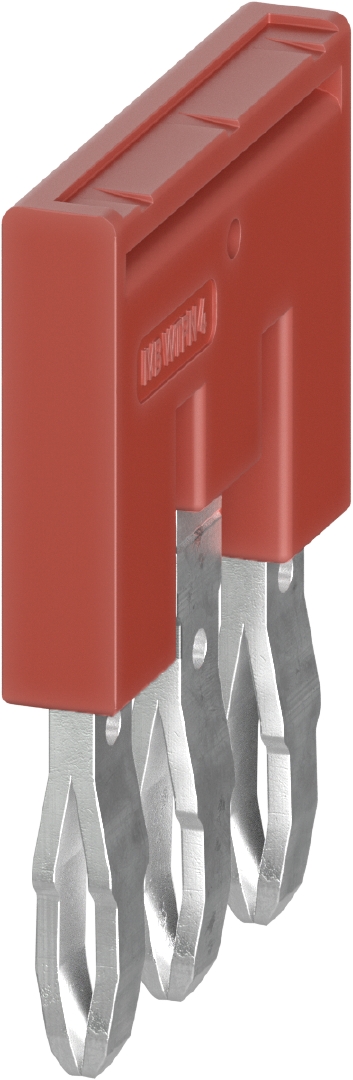

jumper bar IVB WTPN 4-3
Article number 0D.204.3327.5
jumper bar IVB WTPN 4-3 modular spacing 6.1 mm, insulated yes, number of poles 3, color red, height 23 mm, mounting method pluggable, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.204.3327.5
|
|---|---|
|
article description
|
|
|
EAN
|
4049088731662
|
|
Minimum order quantitiy
|
200
|
|
country of origin
|
CN
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
150 mm
|
|---|---|
|
width packed
|
100 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
117.5 g
|
|
volume packed
|
150 ccm
|
|
net weight single part
|
2.33 g
|
|
volume single part
|
2.835 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
50 piece(s)
|
general
|
color
|
red
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
16.7 mm
|
|
length
|
3 mm
|
|
modular spacing
|
6.1 mm
|
|
number of bridged clamps
|
3
|
|
mounting method
|
pluggable
|
|
insulated
|
yes
|
|
model
|
cross connector
|
|
height
|
23 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000489
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 197.05kB | |
|
|
- | 197.28kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 58.51kB | |
|
|
- | 56.42kB | TIF |
|
|
- | 1.21MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 387.14kB | |
|
|
- | 704.62kB | STP |
|
|
- | 1.83MB | IGS |
|
|
- | 307.56kB | JT |
