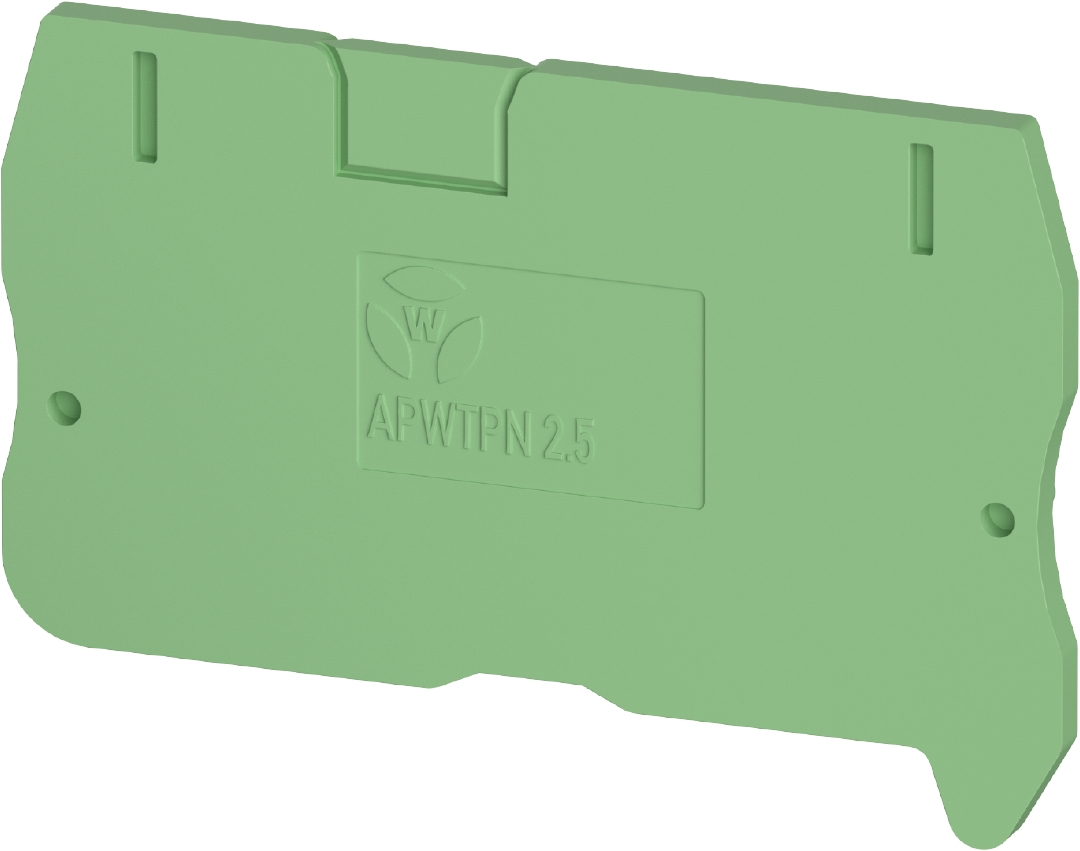

end plate APWTPN 2,5 GN
Article number 0D.203.2055.7
end plate inflammability class of insulation material acc. with ul94 V0, type of end plate yes, thickness 2 mm, length 49 mm, color green
commercial data
|
article number
|
0D.203.2055.7
|
|---|---|
|
article description
|
|
|
EAN
|
4049088707322
|
|
Minimum order quantitiy
|
50
|
|
country of origin
|
CN
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
135 mm
|
|---|---|
|
width packed
|
105 mm
|
|
height packed
|
40 mm
|
|
gross weight packed
|
124 g
|
|
volume packed
|
567 ccm
|
|
net weight single part
|
1.8 g
|
|
volume single part
|
11.34 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
50 piece(s)
|
general
|
color
|
green
|
|---|---|
|
type of end plate
|
yes
|
|
thickness
|
2 mm
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
2 mm
|
|
length
|
49 mm
|
|
material
|
plastic
|
|
height
|
33.1 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000886
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 196.96kB | |
|
|
- | 197.28kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 48.92kB | |
|
|
- | 46.96kB | TIF |
|
|
- | 1.10MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 217.54kB | |
|
|
- | 540.07kB | STP |
|
|
- | 1.37MB | IGS |
|
|
- | 293.64kB | JT |
