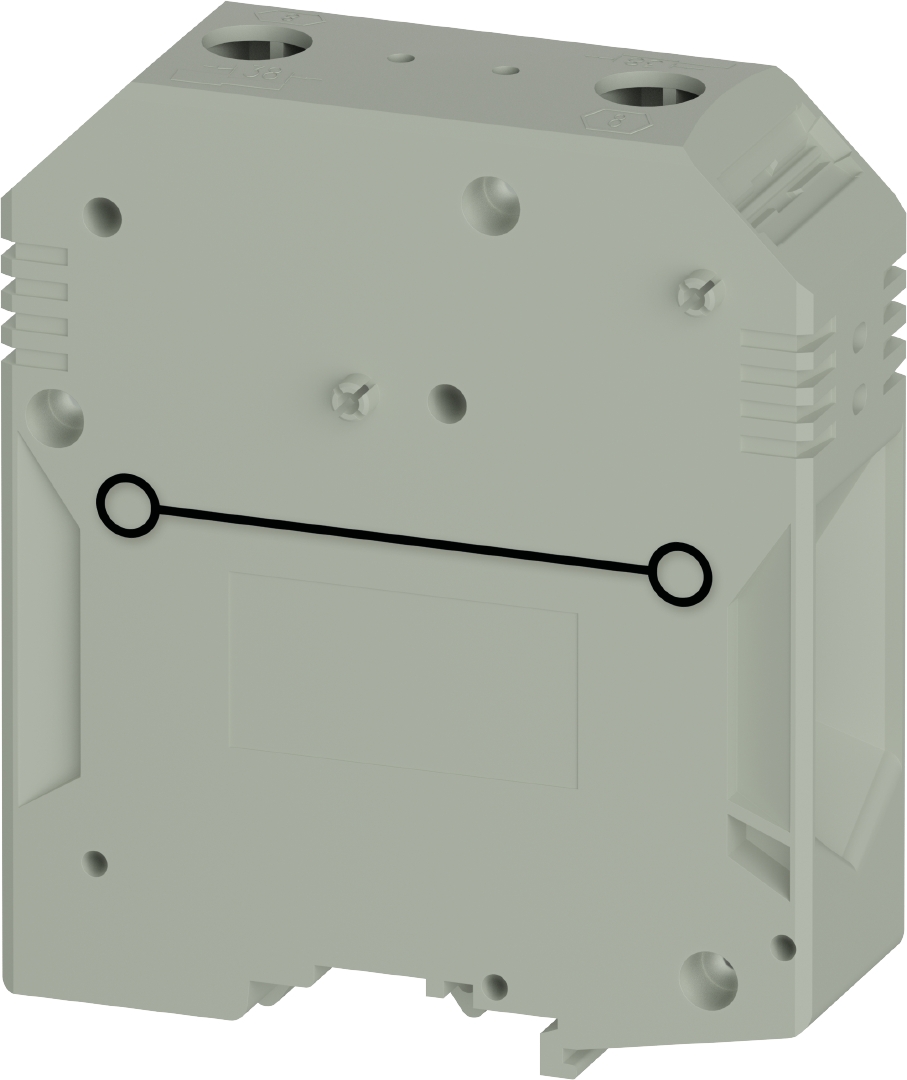

feed-through terminal WTN 150
Article number 5D.S97.0055.0
feed-through terminal WTN 150 rated voltage 1000 V, rated current 309 A, screw connection, number of levels 1, number of clamp positions per level 2, nominal cross section 150 mm², connectable conductor cross section fine stranded without cable end sleeve 35mm² - 150mm², mounting method DIN rail (top hat rail), color grey, width/grid dimension 38 mm, inflammability class of insulation material acc. with ul94 V0
Overview
Technical Data
Accessories
Downloads
commercial data
| article number | 5D.S97.0055.0 |
|---|---|
| article description | |
| EAN | 4049088725760 |
| Minimum order quantitiy | 5 |
| country of origin | CN |
| customs tariff number | 85369010 |
packaging dimensions
| length packed | 160 mm |
|---|---|
| width packed | 135 mm |
| height packed | 105 mm |
| gross weight packed | 1611 g |
| volume packed | 2268 ccm |
| net weight single part | 306.85 g |
| volume single part | 453.6 ccm |
| packaging | cardboard |
| packaging quantity | 5 piece(s) |
