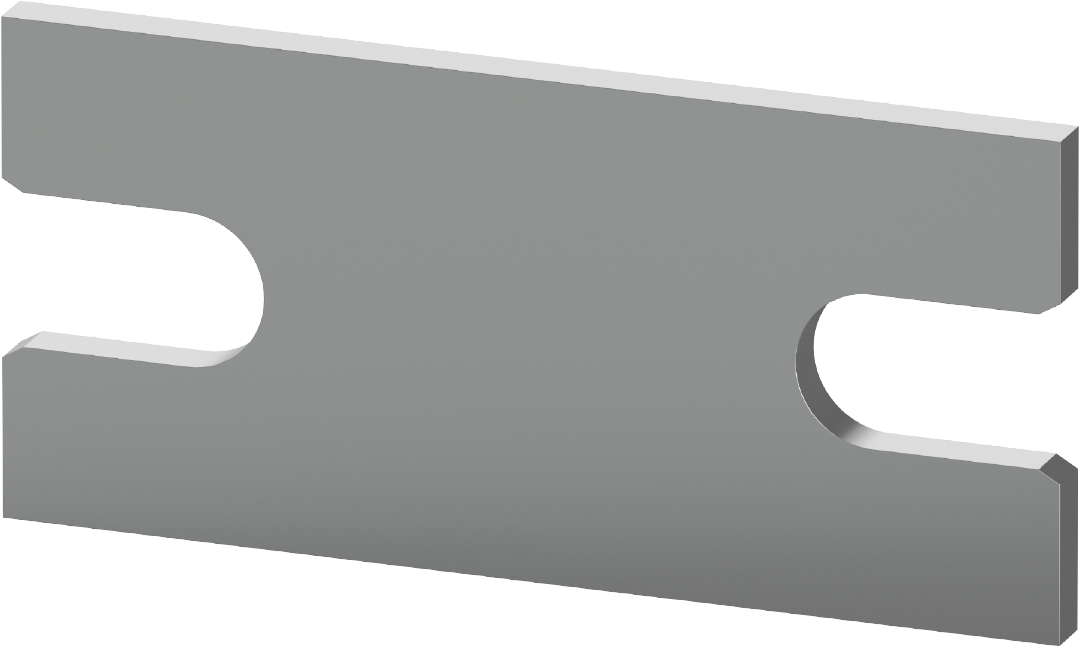

jumper bar VB WRTN 185-2
Article number 0D.S44.3227.0
jumper bar VB WRTN 185-2 modular spacing 55 mm, insulated no, number of poles 2, color grey, height 4 mm, mounting method screwable, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.S44.3227.0
|
|---|---|
|
article description
|
|
|
EAN
|
4049088727351
|
|
Minimum order quantitiy
|
10
|
|
country of origin
|
CN
|
|
customs tariff number
|
85369095
|
packaging dimensions
|
length packed
|
150 mm
|
|---|---|
|
width packed
|
100 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
206.448 g
|
|
volume packed
|
150 ccm
|
|
net weight single part
|
102.724 g
|
|
volume single part
|
0.067 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
2 piece(s)
|
general
|
color
|
grey
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
40 mm
|
|
length
|
85 mm
|
|
modular spacing
|
55 mm
|
|
number of bridged clamps
|
2
|
|
mounting method
|
screwable
|
|
insulated
|
no
|
|
model
|
cross connector
|
|
height
|
4 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000489
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
| REACH-SVHC certificate | - | 197.05kB | |
| RoHS certificate | - | 197.28kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Customer drawings | - | 48.78kB | |
| Customer drawings (TIFF) | - | 46.86kB | TIF |
| Customer drawings (DXF) | - | 872.27kB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
| 3D product images | - | 112.39kB | |
| CAD STEP data | - | 25.40kB | STP |
| CAD IGES data | - | 70.47kB | IGS |
| CAD JT data | - | 21.73kB | JT |
