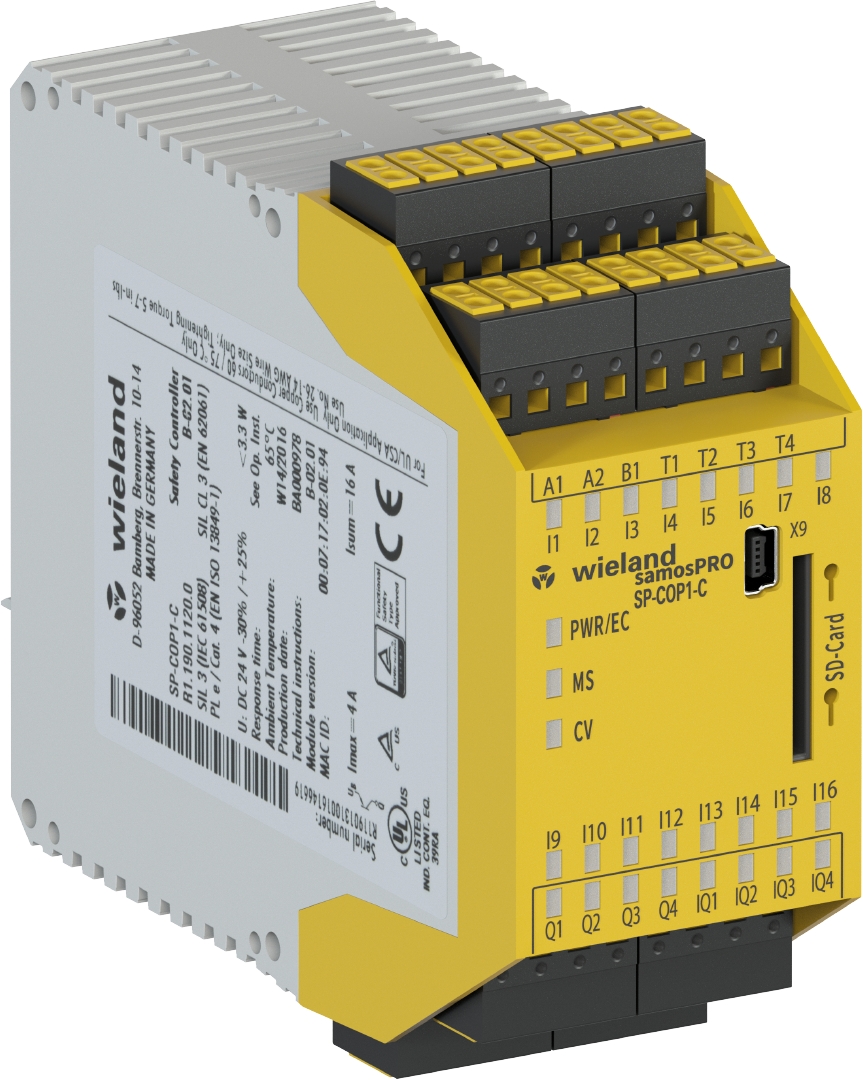

configurable control component SP-COP1-C DC 24V

NO LONGER AVAILABLE

Article number R1.190.1120.0

samosPRO-Compact module, 20 safe inputs, 4 safe outputs, USB-Interface, Pluggable push-in terminals

Overview

Technical Data

Accessories

Fits with

Downloads

commercial data

article number	R1.190.1120.0
article description
EAN	4049088257759
Minimum order quantitiy	1
country of origin	DE
customs tariff number	85371091

packaging dimensions

length packed	167 mm
width packed	142 mm
height packed	55 mm
gross weight packed	335 g
volume packed	1305 ccm
net weight single part	270 g
volume single part	1305 ccm
packaging	cardboard
packaging quantity	1 piece(s)

certificates / approvals

suitable for safety functions	yes
number of HW-interfaces USB	1
number of HW-interfaces industrial Ethernet	0
supporting TCP/IP protocol	no
supporting MODBUS protocol	no
supporting protocol for PROFINET IO	no
supporting protocol for EtherNet/IP	no
SIL according to IEC 61508	3
type of data transmission	serial
networkability	no
Erweiterbar	yes
programmable	yes
in-/outputs configurable	yes

connection data

type of electric connection	spring clamp connection
detachable clamps	yes

safety parameters

category (ISO 13849-1)	4
PL (ISO 13849-1)	Level e
SILCL (IEC 62061)	3
HFT	1
TM	20 a
note	more safety characteristics can be found in the manual.

with automatic closing	yes
function contactless working protection installation	yes
function operating mode selection	yes
function emergency stop	yes
function contacter monitoring	yes
function restart blockage	yes
function acces control	yes
function affirm pushbutton	yes
function 2-hand switching	yes
on delay timer	yes
off delay timer	yes

number of outputs	4
output current	4 A
short-circuit protection, outputs	yes
type of digital output	transistor
min. allowed output voltage	16.2 V
max. allowed output voltage	30 V
max. number of digital outputs, integrated	4

control circuit

min. rated DC voltage for controls	15.6 V
max. rated DC voltage for controls	30 V
number of inputs	20
input current with signal 1	2.3 mA
permitted voltage at input	30 V

min. supply voltage	16.8 V
max. supply voltage	30 V
nominal voltage DC	24 V

depth	115 mm
width	45 mm
height	96 mm

ETIM 5.0	configurable control component
ECLASS 8.1	configurable control component
ETIM 4.0	configurable control component
ETIM 6.0	EC002538
ETIM 7.0	EC002538
ECLASS 11	27243101
ETIM 8.0	EC002538
ETIM 9.0	EC002538

product compliance

ROHS conformity status	compliant/exempted
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	Duty-To-Declare
REACH-SVHC substances	Plumbum
REACH-SVHC CAS numbers	7439-92-1

Documentation

Filename	Description	Filesize	File type
VDMA library	-	34.29kB	ZIP
SW manual	-	12.86MB	PDF
HW manual	-	7.80MB	PDF
Mounting instructions (short)	-	1.30MB	PDF

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	1.65MB	PDF
CE declaration	-	56.52kB	PDF
UKCA declaration of conformity	-	4.74MB	PDF
Approval cULus	-	927.30kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	197.83kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	16.90MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	75.48kB	PDF
Customer drawings (TIFF)	-	73.17kB	TIF
Customer drawings (DXF)	-	4.50MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	592.10kB	PDF
CAD STEP data	-	6.45MB	STP
CAD IGES data	-	12.63MB	IGS
CAD JT data	-	2.73kB	JT

Software

Filename	Description	Filesize	File type
SISTEMA libraries	-	34.99kB	ZIP
EPLAN P8 data	-	2.06MB	EDZ
Software (samosPLAN6)	-	286.00B	HTM
