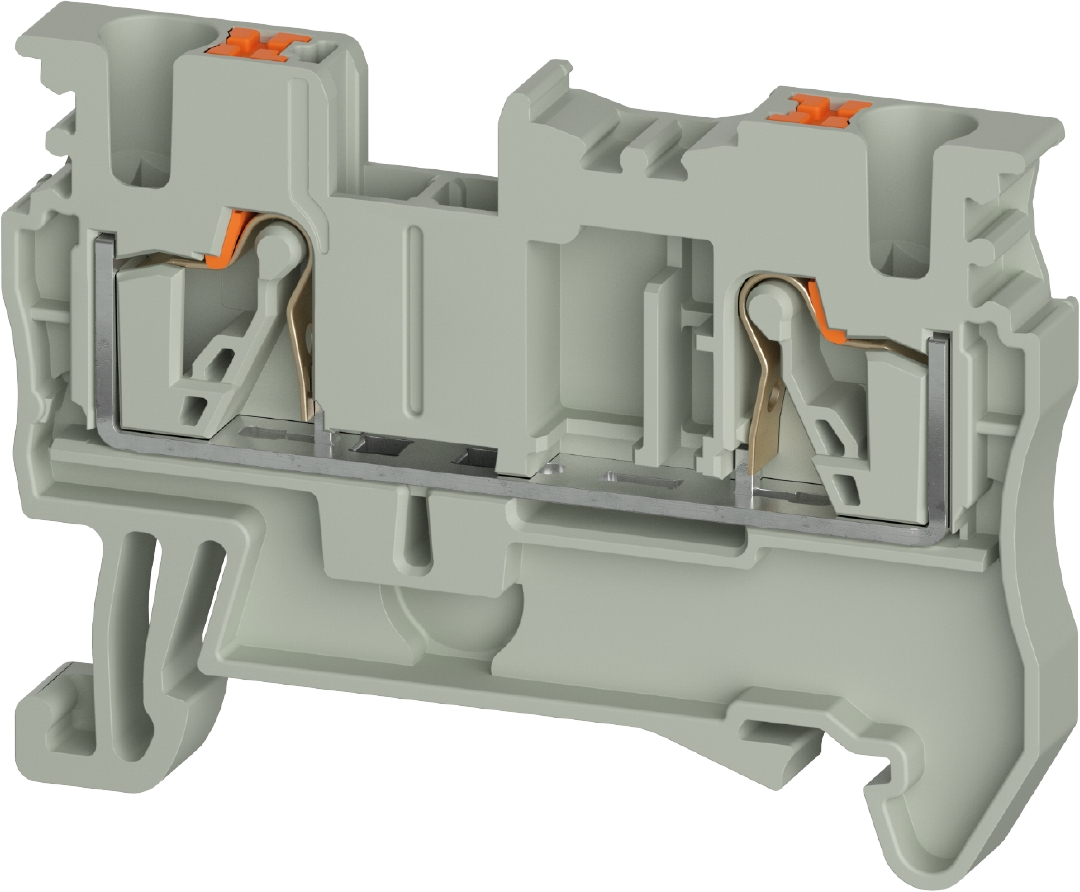

feed-through terminal WTPN 2.5
Article number 5D.203.0055.0
feed-through terminal WTPN 2.5 rated voltage 800 V, rated current 24 A, push-In connection//true, number of levels 1, number of clamp positions per level 2, nominal cross section 2.5 mm², connectable conductor cross section fine stranded without cable end sleeve 0,14mm² - 2,5mm², mounting method DIN rail (top hat rail), color grey, width/grid dimension 5.1 mm, inflammability class of insulation material acc. with ul94 V0, terminal blocks for electrical installations yes
Overview
Technical Data
Accessories
Downloads
commercial data
| article number | 5D.203.0055.0 |
|---|---|
| article description | |
| EAN | 4049088706240 |
| Minimum order quantitiy | 100 |
| country of origin | CN |
| customs tariff number | 85369010 |
packaging dimensions
| length packed | 254 mm |
|---|---|
| width packed | 105 mm |
| height packed | 40 mm |
| gross weight packed | 608 g |
| volume packed | 1066.8 ccm |
| net weight single part | 5.6 g |
| volume single part | 10.668 ccm |
| packaging | cardboard |
| packaging quantity | 100 piece(s) |
