Compact safety controllers – samos® PRO
samos® PRO combines programmable safety logic, safe inputs and outputs, communication interfaces and modular expansion in a compact controller platform. Configure systems with COMPACT controllers, digital or analogue I/O modules, gateways and compatible accessories to match machine size, network architecture and required safety functions.
SOFTWARE-PROGRAMMABLE SAFETY CONTROLLER
samos® PRO is the most compact, modular and programmable safety controller for machine and plant engineering. Safety functions are parameterised in compliance with standards using the intuitive and licence-free samos ® PLAN6 software. The focus is on user-friendly, standard-compliant implementation and simple integration into higher-level systems. The control system offers integrated Ethernet protocols and interfaces for this purpose.
Features OF THE SAFETY CONTROL SYSTEM
- Licence-free, intuitive samos® PLAN6 security software
- PROFINET IO, EtherNet/IP and Modbus TCP communication protocols integrated in the base module
- Compact base module with up to 20 inputs and outputs including terminals
- Optimum scalability thanks to a wide range of digital and analogue expansion models and gateways for all common industrial fieldbuses
- Operating temperature range from -25°C to +65°C
- Simple, intuitive and fast programming, verification and validation
- Cost-optimised thanks to customised, modular adaptation options
- Use at extreme temperatures
SAMOS® PRO COMPACT
STARTER-SET
The simple entry into the samos® safety world.
Test our safety system with our samos® PRO Starter-Set.
NOW ALSO WITH MOTION FUNCTION!
SAMOS® PRO MOTION
samos® PRO MOTION - All in one safety controller for motion monitoring
- Motion integrated in the base module for safe standstill, speed, direction and position monitoring
- Intuitive parameterisation with 6 TÜV-certified motion function blocks
- Simple monitoring of vertical and slow-moving axes with configurable speed and position windows
- High availability and safety despite vibrations
- Increased safety level through redundancy and shaft break detection
Award-Winning Innovation
in Motion Control
We are proud to announce that samos® PRO MOTION has received the Gold Award in the Control Systems category of the Plant Engineering 2025 Product of the Year program.
This prestigious award underscores our commitment to innovation and safety in industrial automation. With powerful real-time motion control and certified functional safety, samos® PRO MOTION drives smarter, safer performance in robotics, packaging, and material handling applications.
THE BASIC MODULES IN COMPARISON
SAFETY SOFTWARE SAMOS® PLAN6
samos® PLAN6 is the license-free, user-friendly software for standard-compliant programming of safety functions for samos® PRO safety controllers. samos® PLAN6 supports PLC programmers, electrical designers and developers.
All functions are designed for user-friendly operation:
- Easy hardware selection via automatic module configuration
- Application-specific, TÜV-certified libraries with over 65 function blocks
- Special libraries for analog value processing, muting and presses
- Fast verification and validation through oscilloscope function in off- and online mode
- Automatic, configurable documentation at the push of a button

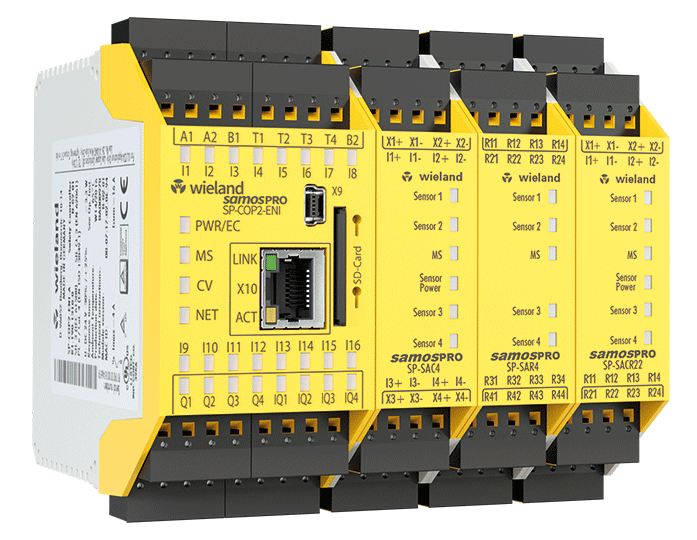

MODULAR SYSTEM DESIGN
FOR CUSTOMIZED SAFETY SOLUTIONS
Thanks to its modular system structure, samos® PRO implements safety functions efficiently and in a customized manner. With pluggable expansion modules, the safety controller is also suitable for large systems.

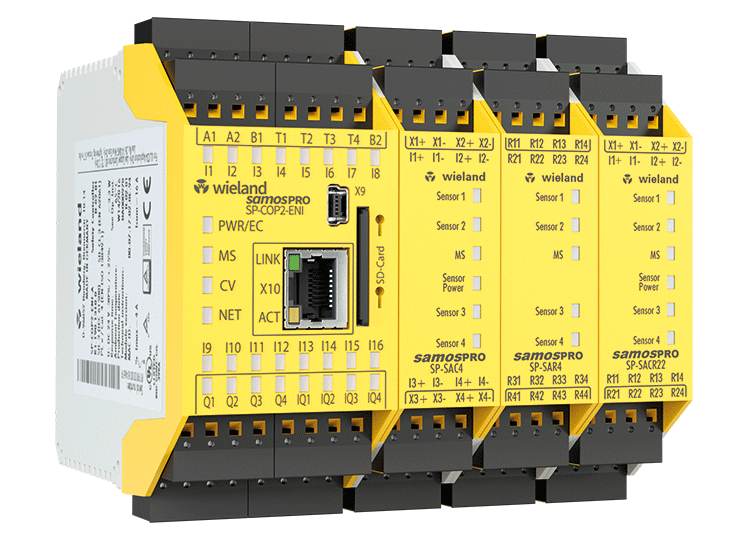

BASIC MODULE - COMPACT
- Integrated Industrial Ethernet protocols: PROFINET, EtherNet/IP, Modbus TCP
- Switching capacity of 4 A on each output pair
- Compact housing with 45 mm width
- 16 safe inputs, 4 safe outputs
- Use in extreme temperatures from -25°C to +65°C

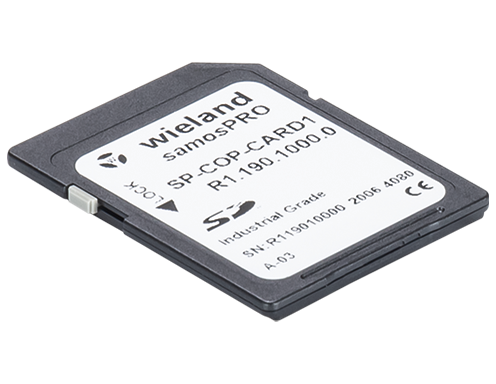

- Flexible programming via mini-USB, Ethernet and removable SD memory card
- Connection via terminal blocks (screw or push-in terminal)
- On-site diagnostics via integrated LEDs and remote diagnostics via Ethernet interfaces
BASIC MODULE - MOTION
Samos® PRO MOTION combines the features of samos® PRO COMPACT with the functionalities of a motion safety controller.
- Motion safety functions integrated in accordance with EN 61800-5-2:
- Safe standstill monitoring
- Safely reduced speed (SLS)
- Safe speed range (SSR)
- Safe speed monitoring (SMS)
- Safe direction of rotation (SDI)
- Safe position monitoring (SLP)
- 4 fast and safe motion inputs with 70kHz

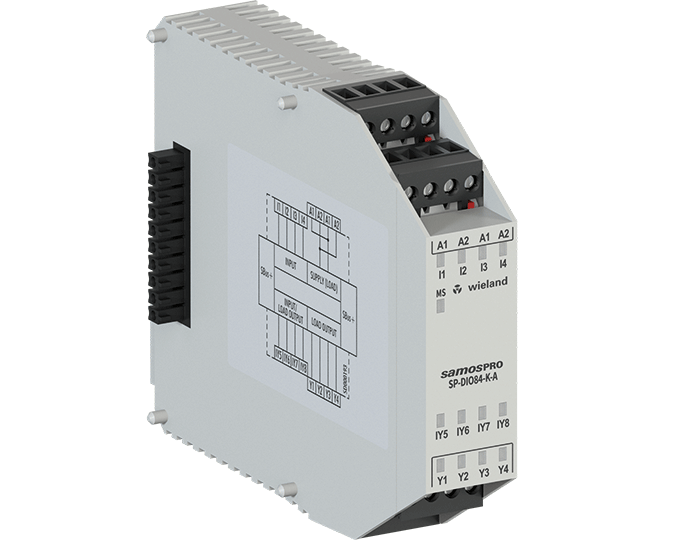

Digital modules
- Expandable with up to 12 digital I/O modules
- Up to 116 safe inputs
- Up to 56 Safe Outputs
Analog modules
- Monitoring of force, temperature, pressure, flow, distance, inclination and flow rates
- Up to 48 analog sensors can be connected in 2/3/4-wire technology
- Easy programming of limits, ranges, ratios and differences with application-specific, TÜV-certified function blocks

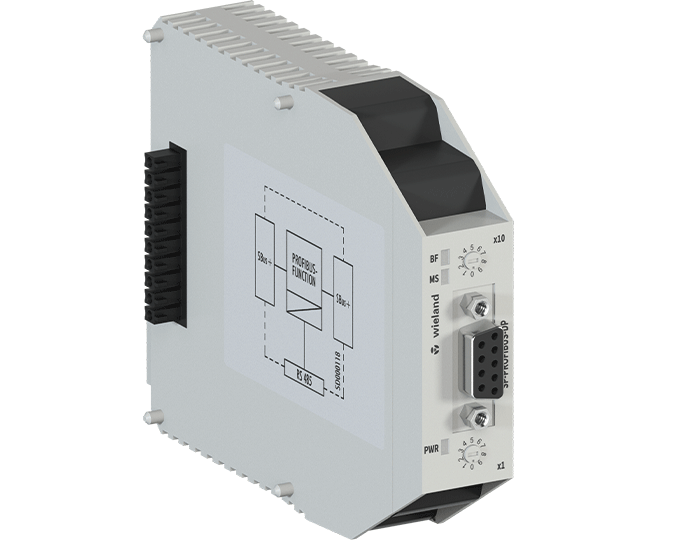

GATEWAY MODULES
- Support of CANopen, PROFIBUS and EtherCAT via external gateways
- Parallel use of up to 2 external and one internal gateway
- Possibility of remote diagnosis
TO THE EXTERNAL GATEWAYS
SAFE RELAY FOR DRIVE MONITORING
- Sensor-less standstill monitoring
- Standstill monitoring via HTL encoder or initiators
- PL e / SIL 3
- Pluggable terminals with screw or push-in connection
- Up to 8 A switching power
Certified safety
samos®PRO COMPACT is also certified for your safety application.
- IEC 60204-1/IEC 62061/EN 13849-1: Safety of machinery
- EN 692: Mechanical presses
- EN 693: Hydraulic presses
FUNCTIONAL SAFETY
PRACTICAL HANDBOOK
With the Functional Safety Practical Handbook, we offer you user-oriented assistance in designing safety solutions. Experienced practitioners and standards experts provide a comprehensive insight into the most important topics relating to functional safety. Application examples and sample solutions help to put theoretical knowledge into practice.
CAREFREE TO CE MARKING -
WITH THE WIELAND SAFETY EXPERTS
Safety has been our daily business – for more than 30 years. On the way to CE marking and safe operation, we are your reliable partner and contribute our experience to your project. Whether training or consulting: We put together your individual all-round carefree package for thestandard-compliant implementation of your machines. We support manufacturers and operators either in specific sub-steps such as inspection and overrun measurement, risk assessment of machines or validation of safety functions according to EN ISO 13849-2, or we accompany them holistically through the CE process up to CE conformity assessment according to machine directives.
