female contact 0,5-1,5 QMM AU
Article number 02.124.1429.0

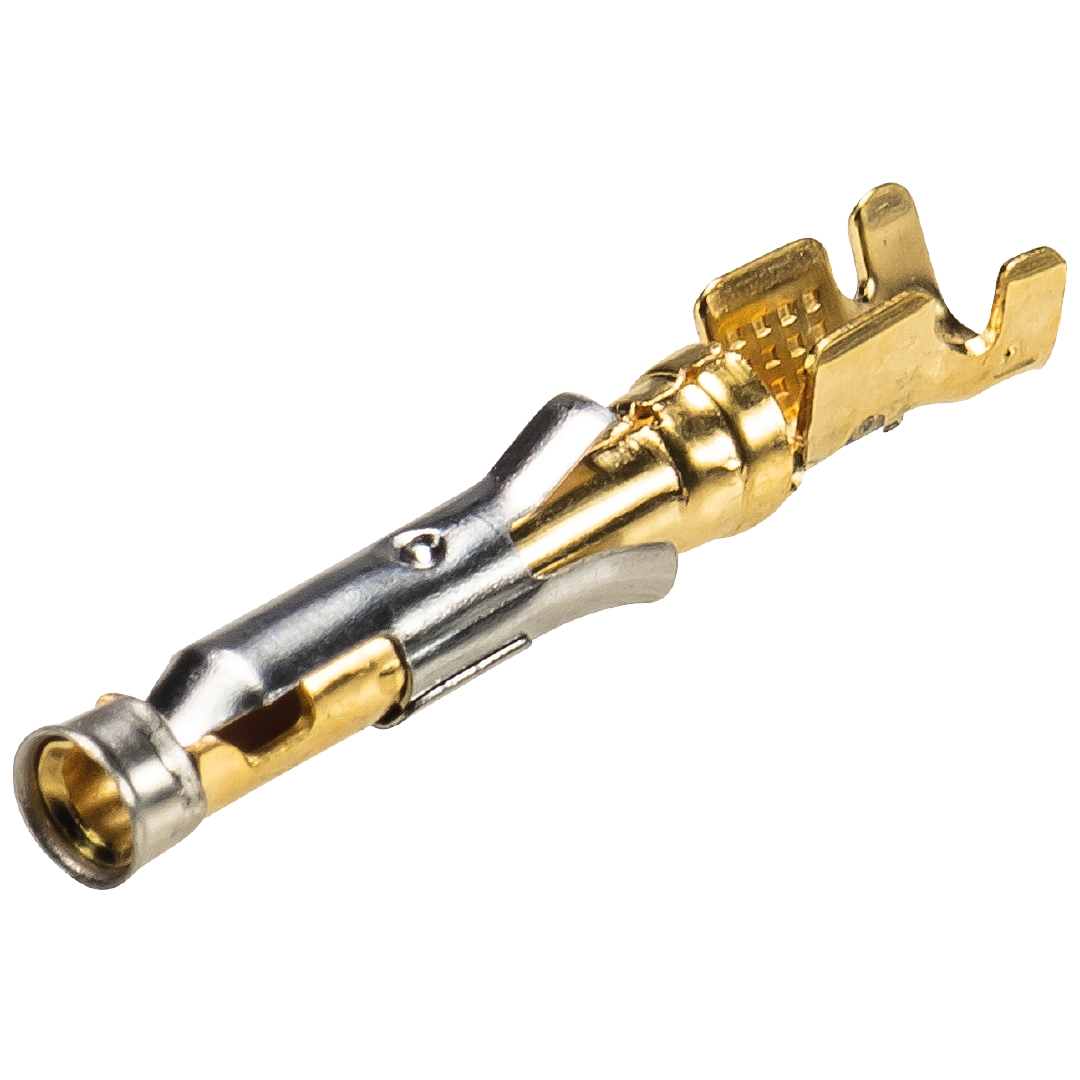

Female contact, stamped Ø 1,6 mm, 0,5-1,5 mm2, AWG 20-16, Au
commercial data
|
article number
|
02.124.1429.0
|
|---|---|
|
article description
|
|
|
EAN
|
4015573053618
|
|
Minimum order quantitiy
|
200
|
|
country of origin
|
PL
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
95 mm
|
|---|---|
|
width packed
|
70 mm
|
|
height packed
|
70 mm
|
|
gross weight packed
|
99.9 g
|
|
volume packed
|
465.5 ccm
|
|
net weight single part
|
0.4 g
|
|
volume single part
|
2.328 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
200 piece(s)
|
general
|
wire strip length
|
4 mm
|
|---|---|
|
min. conductor cross section flexible wire
|
0.5 mm²
|
|
max. conductor cross section flexible wire
|
1.5 mm²
|
|
min. UL/CSA wire diamter flexible wire
|
20 AWG
|
|
max. UL/CSA wire diamter flexible wire
|
16 AWG
|
|
connection type
|
crimp
|
|
material
|
bronze
|
|
massive contact
|
no
|
|
contact pin diameter
|
1.58 mm
|
|
inflammability class of insulation material acc. with UL94
|
other
|
|
contact resistance
|
4 mOhm
|
classification
|
ETIM 5.0
|
contact for industrial connectors
|
|---|---|
|
ECLASS 8.1
|
contact for industrial connectors
|
|
ETIM 4.0
|
contact for industrial connectors
|
|
ETIM 3.0
|
contact for heavy duty connectors
|
|
ETIM 6.0
|
EC000796
|
|
ETIM 7.0
|
EC000796
|
|
ECLASS 11
|
27440204
|
|
ETIM 8.0
|
EC000796
|
|
ETIM 9.0
|
EC000796
|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
