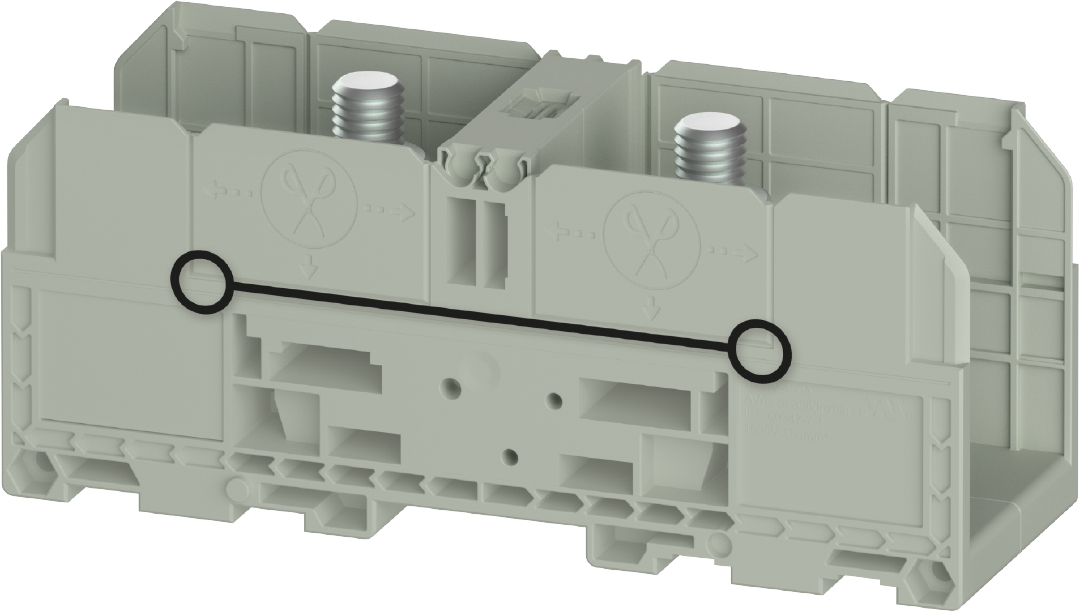

high current terminal WRTN 185
Article number 5D.S98.1555.0
high current terminal WRTN 185 rated voltage 1000 V, rated current 353 A, bolt connection, number of levels 1, number of clamp positions per level 2, nominal cross section 185 mm², connectable conductor cross section fine stranded without cable end sleeve 10mm² - 185mm², mounting method DIN rail (top hat rail), color grey, width/grid dimension 55 mm, inflammability class of insulation material acc. with ul94 V0
Overview
Technical Data
Accessories
Downloads
commercial data
| article number | 5D.S98.1555.0 |
|---|---|
| article description | |
| EAN | 4049088725814 |
| Minimum order quantitiy | 4 |
| country of origin | CN |
| customs tariff number | 85369010 |
packaging dimensions
| length packed | 268 mm |
|---|---|
| width packed | 205 mm |
| height packed | 78 mm |
| gross weight packed | 1465 g |
| volume packed | 4285 ccm |
| net weight single part | 338.02 g |
| volume single part | 1071.25 ccm |
| packaging | cardboard |
| packaging quantity | 4 piece(s) |
