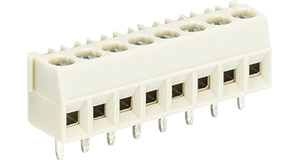

PCB terminal blocks – wiecon

wiecon PCB terminal blocks provide an economical and reliable solution for connecting conductors directly to printed circuit boards. A wide range of variants supports different application requirements, while proven connection technology ensures high contact reliability and secure wiring.

PCB terminals from Wieland combine many advantages

They are :

  • Space-saving and easy to use as only one component is required for the wire connection
  • Universal application

They also boast low contact resistance and a secure connection.

TECHNICAL DATA

Cable cross-sections from0,14 mm² to 16 mm²
For currents up to 76 A
For voltages up to 1000 V
Connection technologyScrew, tension spring, or push-in
Spacings2,5 mm to 10,16 mm
Can be arranged in a gridYes
No Flame variants available Yes

DOWNLOADS

Printed circuit board terminals and connectors - brochure

0580.1 | 15 MB
