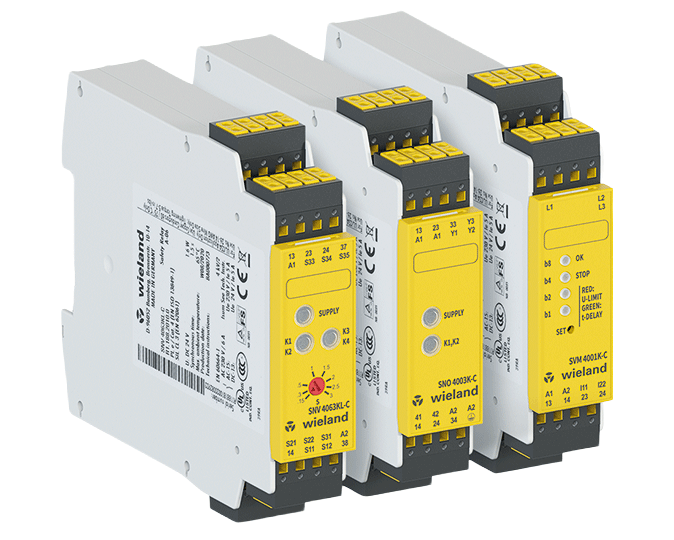

Safety relays – safeRELAY
safeRELAY safety relays monitor individual safety functions in compact machines and safety circuits. The range includes base units, time-delayed devices, contact expansion relays and motion-monitoring relays, with pluggable connection options and on-device diagnostics. Select by monitored safety function, input circuit, number and type of safety outputs, delay requirements, switching capacity, connection technology and the required performance level or safety integrity level.
SAFETY RELAYS
Compact design, flexible usage and variable connection options – these are the strengths of the safe relay from Wieland. With outstanding technical performance features, high economy and maximum safety, they are perfectly suitable for monitoring individual safety functions.
FEATURES
- Individual connection technology with pluggable screw or push-in terminals
- Large LED displays for status queries
- Compatible with all safe sensors
- Switching power of AC/DC loads up to 8 A
BENEFITS
- Convenient diagnosis on the device itself for high system availability and low downtimes
- Efficient commissioning and the simplest possible wiring thanks to devices with pluggable connections
- Economical and easy-to-use: Complete solution from just one source
- Ideal solution for compact machines with high productivity through fast response times
SWITCHING DEVICES FOR EVERY SAFETY FUNCTION
VARIANTS
Safe relays from Wieland for the simple performance of individual safety functions:
- Monitoring of safety doors and flaps
- Interlocking devices
- Access monitoring
- Speed, standstill and position monitoring
- Emergency Stop functions and restart inhibitors
- Two-hand operating devices
SAFE BASIC DEVICES
- Safe relay for monitoring individual safety functions
- Up to PL e / SIL3
- Pluggable terminals with screw or push-in connection
- Up to 8 A switching power
SAFE BASIC DEVICES WITH TIME FUNCTION
- Safe relay for monitoring individual safety functions
- Time delay of the outputs
- Up to PL e / SIL3
- Pluggable terminals with screw or push-in connection
- Up to 8 A switching power
SAFE CONTACT EXPANSION RELAY
- Contact expansion for safe switching devices and controllers
- Up to PL e / SIL 3
- Pluggable terminals with screw or push-in connection
- Up to 8 A switching power
SAFE RELAY FOR DRIVE MONITORING
- Sensor-less standstill monitoring
- Standstill monitoring via HTL encoder or initiators
- PL e / SIL 3
- Pluggable terminals with screw or push-in connection
- Up to 8 A switching power
