Temporary power distribution boxes – gesis® WIV

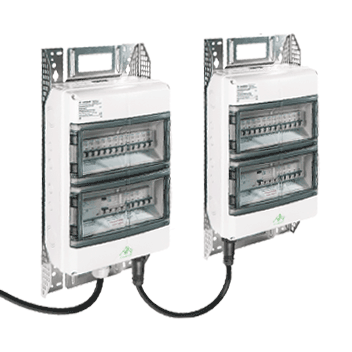

gesis® WIV distribution boxes provide a mobile solution for temporary electrical installations, from exhibition stands to lighting and event applications.
WIV DISTRIBUTION BOXES MAXIMUM FLEXIBILITY + MOBILITY.
Maximum flexibility + mobility: With our pluggable WIV exhibition distribution boxes you are well placed to benefit from a faultless operation in changing locations. Materials and components of proven quality ensure quick and smooth connections and safe supply on site.
Unable to find a suitable power distributor in our portfolio?
We will be happy to configure your distributor on request!
APPLICATIONS OF MOBILE POWER DISTRIBUTORS
Very quick assembly and dismantling times due to prefabricated components.
High flexibility due to pluggability and easy extension.
Wieland’s gesis®/RST® connector systems enable safe, fast, and error-free commissioning.
WIV DISTRIBUTION BOXES FAST, FLEXIBLE & PLUGGABLE
The distribution boxes are available with various connector systems, with gesis® MINI and gesis® CLASSIC being the ones for dry indoor areas. They also have safety sockets. If higher IP protection ratings are required, the RST® versions are used. The residual current and miniature circuit breakers and the master switches are all harmonized. The cabling for the exhibition stand is done with the above-mentioned systems. Various cable types, cross sections, and lengths as well as other components, such as distribution blocks, can be used.
The distribution boxes are constructed according to IEC 61439.
CONNECTOR SYSTEMS
Various installation connector systems are used for the inputs/outputs, in accordance with IEC 61535. Which of these systems is best for you will be influenced by external circumstances. We will be happy to advise you.
- gesis® MINI: For applications with little installation space available, gesis® MINI is the best choice.
- gesis® CLASSIC: The established standard system for the last 40 years offers a wide range of accessories.
- RST® CLASSIC: This is used where increased IP protection is required.
IP PROTECTION
A lower protection class is generally adequate for dry interiors. If exposure to water needs to be considered, a higher protection class will be necessary. The cables and connectors must also meet the requirements.
- Distribution boxes with RST® outlets
- The RST® System covers all protection classes from IP54 to IP69.
- The distributor must be protected against water (e.g. rain) from above.
COUNTER
The counter is used primarily to measure consumption. As all outer conductors can be recorded separately, it is possible to achieve a symmetrical load distribution.
MOUNTING
It is very easy to mount the distributor thanks to the robust and well-thought-out mounting bracket, even in confined installation conditions.
- Various punched holes in the rear panel
- Carrying handle integrated into the rear panel
Maximum safety is important to us! That is why the protective/switching devices used are harmonized and of the highest quality.
- Master switch
- Residual current circuit breaker
- Miniature circuit breaker
- Protected by transparent cover
- Cover for opening
THE ADVANTAGES OF OUR DISTRIBUTION BOXES
- Quick assembly/dismantling
- Safe connections
- Reusability of all components
- Robust distributor
- Easy handling of distribution boxes and of the entire system
1. QUICK COMMISSIONING
Depending on energy requirements, either a 20 kVA or a 40 kVA version is available. Energy is distributed and made available via Wieland’s connector systems. If other connections are needed per circuit, these are very easy to realize with our distribution blocks.
2. FLEXIBLE ADAPTATION
Depending on energy requirements, either a 20 kVA or a 40 kVA version is available. Energy is distributed and made available via Wieland’s connector systems. If other connections are needed per circuit, these are very easy to realize with our distribution blocks.
3. RECORDING OF ELECTRICAL DATA
Our distribution boxes can also be supplied with a multifunction meter for simple determination of electrical data, from the recording of electricity consumption to the logging of energy consumption.
4. SIMPLE PLANNING + IMPLEMENTATION
All that is required for system planning purposes is to determine the number of outlets and to define the desired connector system (gesis® MINI, gesis® CLASSIC, RST® CLASSIC).
All accessories can be found in our Shop!
