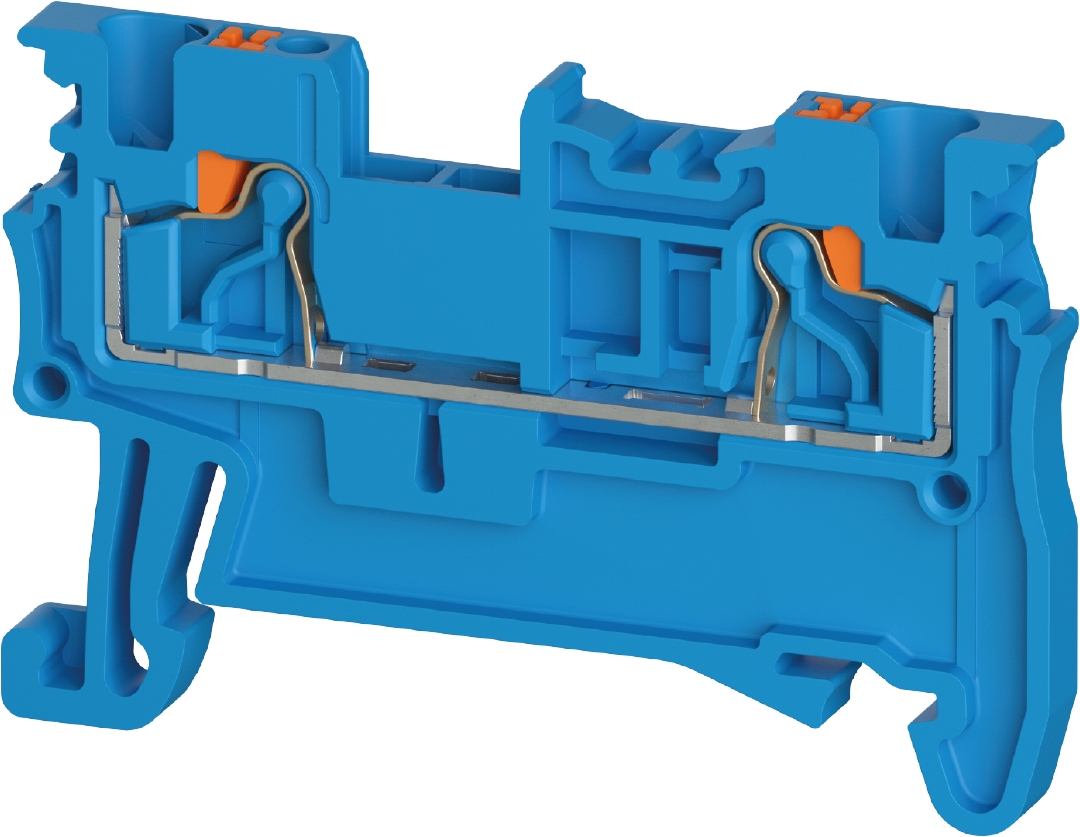

feed-through terminal WTPN 1.5 BL
Article number 5D.202.0055.6
feed-through terminal WTPN 1.5 BL rated voltage 500 V, rated current 17.5 A, push-In connection//true, number of levels 1, number of clamp positions per level 2, nominal cross section 1.5 mm², connectable conductor cross section fine stranded without cable end sleeve 0,14mm² - 1,5mm², mounting method DIN rail (top hat rail), color blue, width/grid dimension 3.5 mm, inflammability class of insulation material acc. with ul94 V0, terminal blocks for electrical installations yes
Overview
Technical Data
Accessories
Downloads
commercial data
| article number | 5D.202.0055.6 |
|---|---|
| article description | |
| EAN | 4049088719646 |
| Minimum order quantitiy | 100 |
| country of origin | CN |
| customs tariff number | 85369010 |
packaging dimensions
| length packed | 255 mm |
|---|---|
| width packed | 78 mm |
| height packed | 41 mm |
| gross weight packed | 355 g |
| volume packed | 815.49 ccm |
| net weight single part | 3.09 g |
| volume single part | 8.155 ccm |
| packaging | cardboard |
| packaging quantity | 100 piece(s) |
