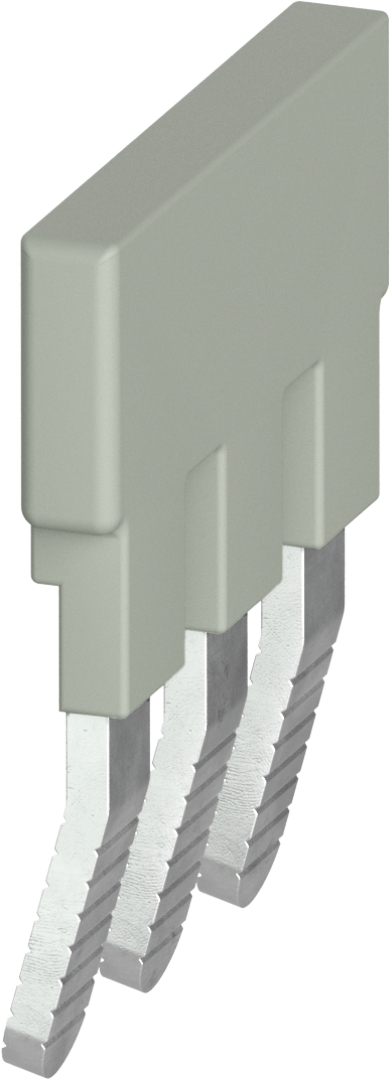

insert bridge IVB WTN 4-3 IN

Article number 0D.S05.3327.0

insert bridge IVB WTN 4-3 IN modular spacing 6.1 mm, insulated yes, number of poles 3, color grey, height 20.3 mm, mounting method screwable, inflammability class of insulation material acc. with ul94 V0

commercial data

article number	0D.S05.3327.0
article description	insert bridge IVB WTN 4-3 IN
EAN	4049088723209
Minimum order quantitiy	200
country of origin	CN
customs tariff number	85366990

packaging dimensions

length packed	150 mm
width packed	100 mm
height packed	10 mm
gross weight packed	90.5 g
volume packed	150 ccm
net weight single part	1.79 g
volume single part	2.84 ccm
packaging	bag
packaging quantity	50 piece(s)

general

color	grey
inflammability class of insulation material acc. with UL94	V0
width/grid dimension	17.7 mm
length	2.3 mm
modular spacing	6.1 mm
number of bridged clamps	3
mounting method	screwable
insulated	yes
model	cross connector
height	20.3 mm
halogen free	yes

classification

ETIM 9.0	EC000489

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Documentation

Filename	Description	Filesize	File type
Data sheet	-	89.36kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF
RoHS certificate	-	197.29kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	56.45kB	PDF
Customer drawings (TIFF)	-	54.45kB	TIF
Customer drawings (DXF)	-	1.31MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	440.75kB	PDF
CAD STEP data	-	1.04MB	STP
CAD IGES data	-	1.97MB	IGS
CAD JT data	-	420.16kB	JT
