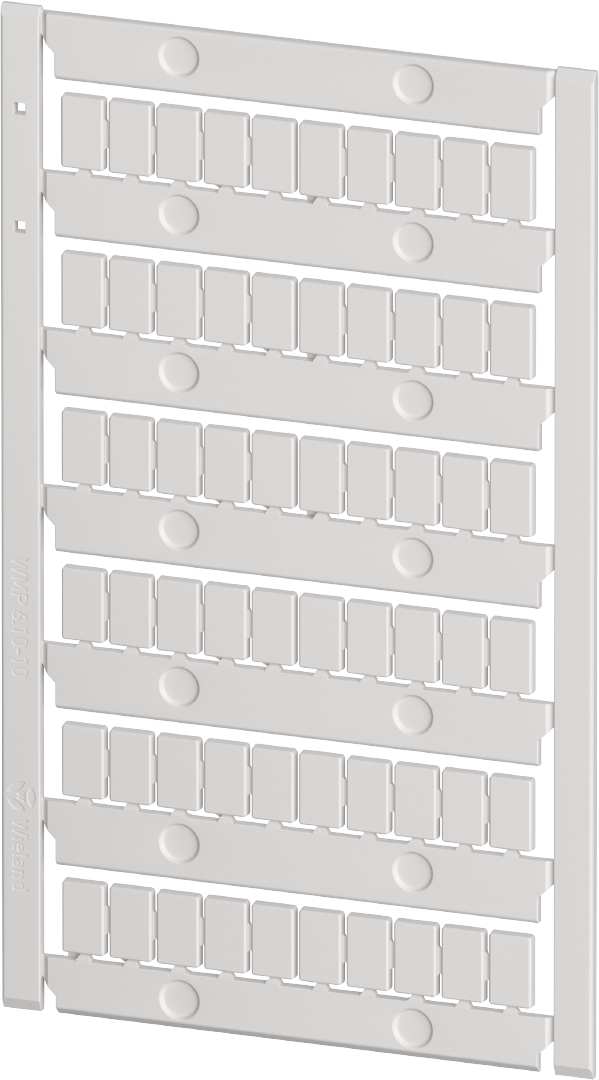

marking plate WMP 6.10-10

Article number 0D.204.7056.0

marking plate WMP 6.10-10 modular spacing 6.1 mm, material plastic, color white, length 128 mm, height 76 mm, mounting method snap-on, inflammability class of insulation material acc. with ul94 V0

commercial data

article number	0D.204.7056.0
article description	marking plate WMP 6.10-10
EAN	4049088707476
Minimum order quantitiy	20
country of origin	CN
customs tariff number	39269097

packaging dimensions

length packed	142 mm
width packed	81 mm
height packed	78 mm
gross weight packed	346 g
volume packed	897.156 ccm
net weight single part	15.14 g
volume single part	89.716 ccm
packaging	cardboard
packaging quantity	20 piece(s)

general

color	white
inflammability class of insulation material acc. with UL94	V0
width/grid dimension	9.8 mm
length	128 mm
material	plastic
imprint	none
modular spacing	6.1 mm
mounting method	snap-on
height	76 mm
imprint	none
halogen free	yes

general

color	white
marking	ohne Beschriftung

classification

ETIM 9.0	EC000761

product compliance

REACH-SVHC conformity status	compliant

Documentation

Filename	Description	Filesize	File type
Data sheet	-	103.10kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	64.56kB	PDF
Customer drawings (TIFF)	-	62.56kB	TIF
Customer drawings (DXF)	-	4.23MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	173.88kB	PDF
CAD STEP data	-	90.88kB	STP
CAD IGES data	-	292.37kB	IGS
CAD JT data	-	66.08kB	JT
