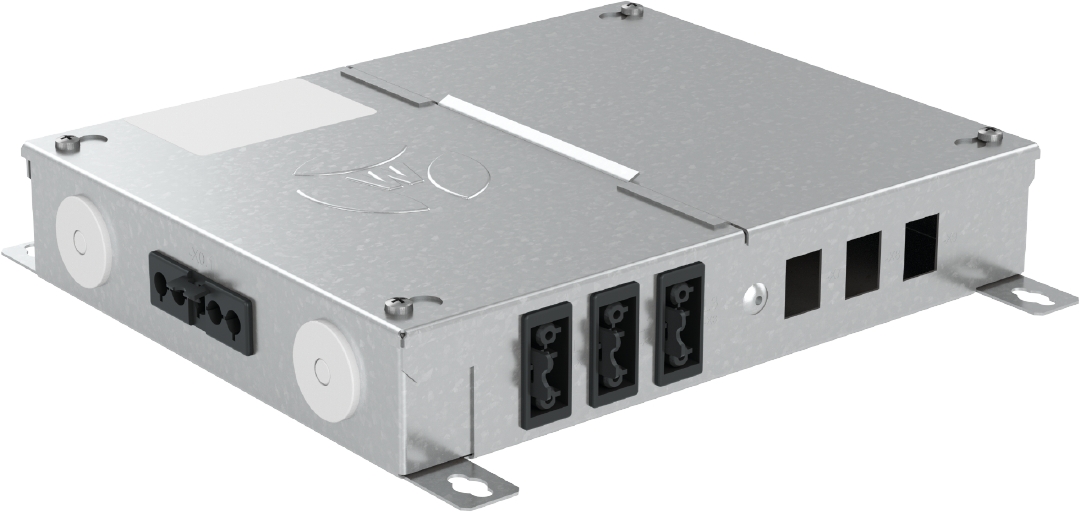

Distribution Box CPO MIX 6/6
System gesis® CPO – Distribution Box, pre-wired for pluggable decentralised power and data distribution. In the distribution box made of 1 mm galvanised sheet steel, a 5-pole gesis® CLASSIC, black coded, serves as input for the energy side. Each outer conductor is routed twice to a pluggable outgoing circuit. The six outlets are designed as 3-pole gesis® CLASSIC connectors and colour-coded in black. Power and data distribution is mechanically separated in the Distribution Box. An additional hammer head rail serves as input for the data side. Six cut-outs are provided in the distributor for the installation of RJ45 Key-Stone modules. The Key-Stone modules are enclosed and must be installed on site. The system distributor therefore offers six decentralised distribution points for data technology.
Scegli da Wieland, ordina dal tuo rivenditore. Trova il partner commerciale che offre gli articoli Wieland che desideri.
Acquista presso un rivenditore| Codice | 98.530.1207.0 |
|---|---|
| Descrizione dell'articolo | Distribution Box CPO MIX 6/6 |
| EAN | 4049088701924 |
| Quantità minima d’ordine | 5 |
| Paese d'origine | CZ |
| Numero di tariffa doganale | 85371098 |
| Lunghezza imballato | 392 mm |
|---|---|
| Larghezza imballata | 392 mm |
| Altezza imballata | 262 mm |
| Peso lordo imballato | 8915 g |
| Volume confezionato | 40260 ccm |
| Peso netto parte singola | 1591 g |
| Volume della parte individuale | 8052 ccm |
| Imballo | cartone |
| quantità di imballaggi | 5 pezzo/pezzi |
