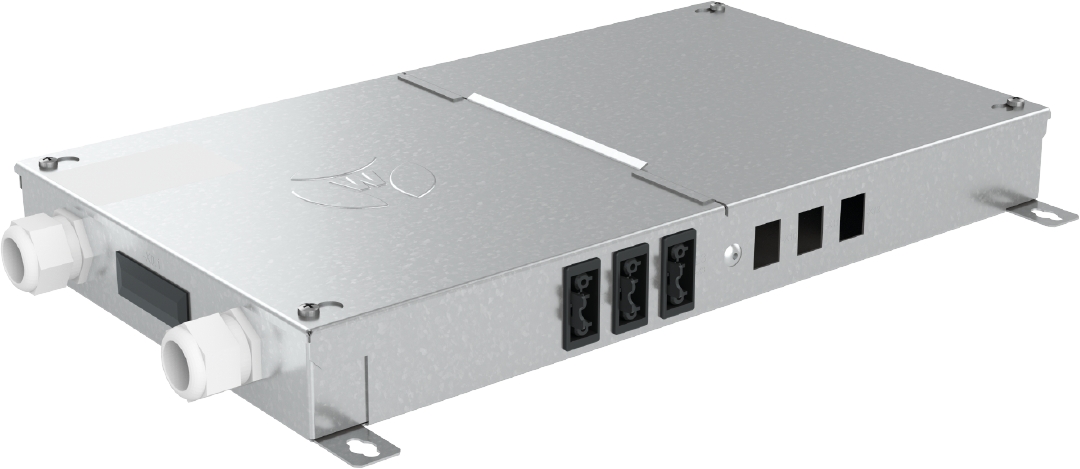

Distribution Box CPO MIX 9/9 VER.
System gesis® CPO – – Distribution Box, pre-wired for pluggable decentralised power and data distribution. In the distribution box made of 1 mm galvanised sheet steel, two cable glands serve as input and forwarding for the energy side. An internal terminal block is available for the power supply. Each outer conductor is routed three times to a pluggable outgoing circuit. The nine outlets are designed as 3-pole gesis® CLASSIC connectors and colour-coded in black. Power and data distribution is mechanically separated in the Distribution Box. An additional hammer head rail serves as input for the data side. Nine cut-outs are provided in the distributor for the installation of RJ45 Key-Stone modules. The Key-Stone modules are enclosed and must be installed on site. The system distributor therefore offers nine decentralised distribution points for data technology.
| Codice | 98.530.1300.1 |
|---|---|
| Descrizione dell'articolo | Distribution Box CPO MIX 9/9 VER. |
| EAN | 4049088645495 |
| Quantità minima d’ordine | 5 |
| Paese d'origine | CZ |
| Numero di tariffa doganale | 85371098 |
| Lunghezza imballato | 392 mm |
|---|---|
| Larghezza imballata | 392 mm |
| Altezza imballata | 262 mm |
| Peso lordo imballato | 13360 g |
| Volume confezionato | 40260 ccm |
| Peso netto parte singola | 2560 g |
| Volume della parte individuale | 8052 ccm |
| Imballo | cartone |
| quantità di imballaggi | 5 pezzo/pezzi |
