bottom BAS GUM GL 6 M20 B1
Article number 70.430.0637.1

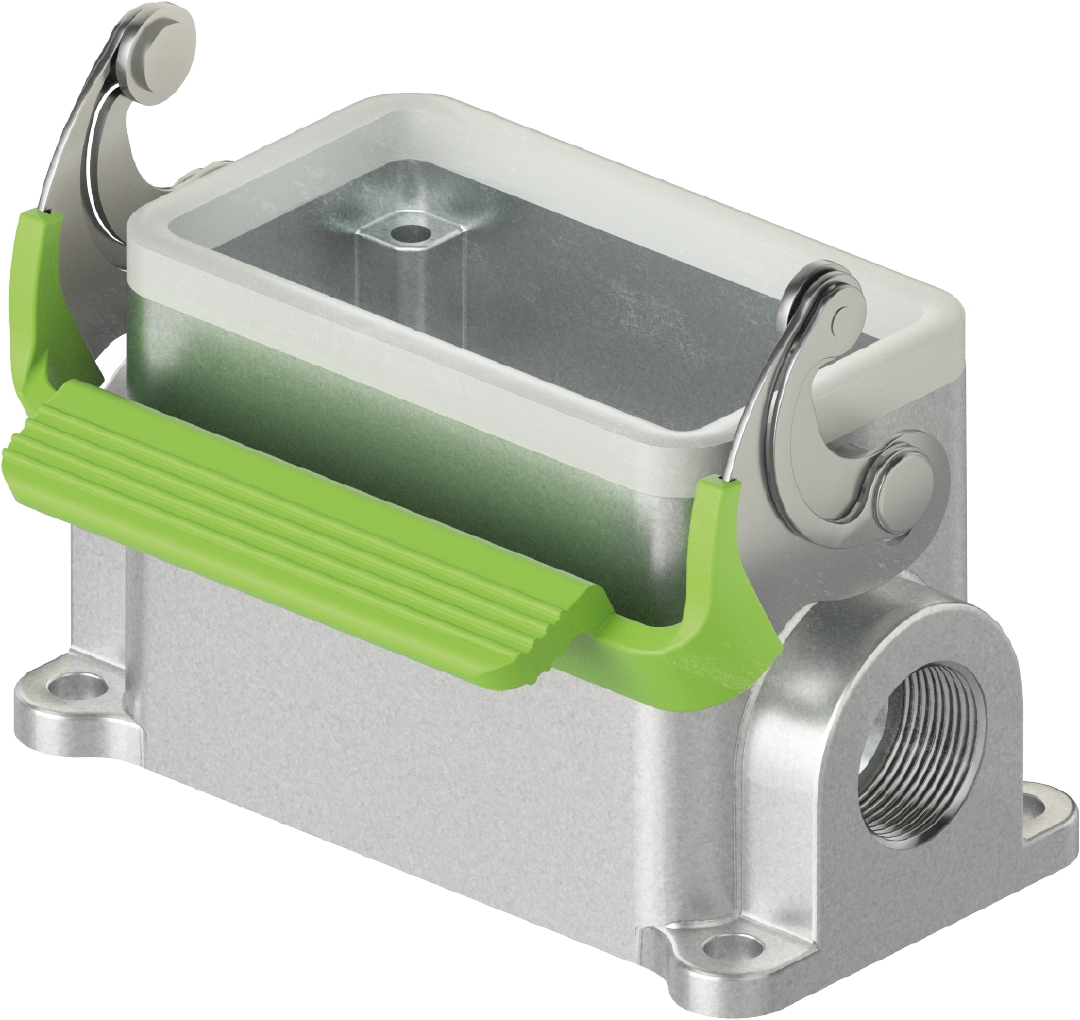

Bottom-base revos basic metal-series without coating, with single locking lever and threaded hole M20 on the right and left side, low version, 6-polig

commercial data
article number
70.430.0637.1
article description
bottom BAS GUM GL 6 M20 B1
EAN
4049088343247
Minimum order quantitiy
1
country of origin
DE
customs tariff number
85389099
packaging dimensions
length packed
250 mm
width packed
200 mm
height packed
52 mm
gross weight packed
210 g
volume packed
750 ccm
net weight single part
205 g
volume single part
750 ccm
packaging
bag
packaging quantity
1 piece(s)
general
housing material
aluminum
color
grey
surface
bare
degree of protection (IP)
IP66
UV resistant
yes
inflammability class of insulation material acc. with UL94
other
operating temperature range min.
-40 °C
operating temperature range max.
120 °C
model
construction
6
model of the housing
surface mounting (base)
locking mechanism
single locking lever
cable entry
two-sided
type of cable
thread
with cable screw gland
no
thread size M
20
hinged lid
no
EMC-version
no
thread size PG
length
84 mm
width
52 mm
height
54.6 mm
classification
ECLASS 8.1
housing for industrial connectors
ETIM 4.0
housing for industrial connectors
ETIM 3.0
housing for industry plug connectors
ETIM 6.0
EC000437
ETIM 7.0
EC000437
ECLASS 11
27440202
ETIM 8.0
EC000437
ETIM 9.0
EC000437
product compliance
ROHS conformity status
compliant
REACH-SVHC conformity status
compliant

Fits with

Article number Article-type description Price Quantity
70.300.0602.0 female insert BAS BUS 6 2,5 50 AG
70.415.0653.0 male insert BAS STP 6 2,5 50 AG
70.405.0653.0 female insert BAS BUP 6 2,5 50 AG
70.302.0640.0 female insert BAS BUS OD 6 2,5 50
72.310.0653.0 male insert BAS STS 6 2,5 69
70.311.0640.0 male insert BAS STS 6 2,5 50 AU
70.300.0640.0 female insert BAS BUS 6 2,5 50
70.310.0640.0 male insert BAS STS 6 2,5 50
70.500.0653.0 female insert BAS BUF 6 2,5 50
70.710.0658.0 male insert BAS STC 6 50
70.310.0602.0 male insert BAS BUS OD 6 2,5 50
70.700.0658.0 female insert BAS BUC 6 50
72.710.0658.0 male insert BAS STC 6 69
73.810.2453.0 male insert DD STC 24 1,5 25
70.810.1056.0 male insert BAS STCK 10 50 PC
70.510.0653.0 male insert BAS STF 6 2,5 50
73.800.2453.0 female insert DD BUC 24 1,5 25
70.312.0640.0 male insert BAS STS OD 6 2,5 50
72.700.0658.0 female insert BAS BUC 6 69
70.800.1056.0 female insert BAS BUCH 10 50 PC
72.300.0653.0 female insert BAS BUS 6 2,5 69
70.301.0640.0 female insert BAS BUS 6 2,5 50 AU

Documentation

Filename Description Filesize File type
Data sheet - 119.84kB PDF

Approbation

Filename Description Filesize File type
EC declaration of conformity - 45.12kB PDF
UKCA declaration of conformity - 39.31kB PDF

Product compliance

Filename Description Filesize File type
REACH-SVHC certificate - 196.96kB PDF
RoHS certificate - 197.29kB PDF

Marketing

Filename Description Filesize File type
Catalogues - 41.84MB PDF

Drawings

Filename Description Filesize File type
Customer drawings - 67.15kB PDF
Customer drawings (TIFF) - 65.15kB TIF
Customer drawings (DXF) - 954.09kB DXF

CAD model

Filename Description Filesize File type
3D product images - 334.83kB PDF
CAD STEP data - 678.87kB STP
CAD IGES data - 2.41MB IGS
CAD JT data - 133.65kB JT
