cover for female connector SW
Article number Z5.565.9853.1

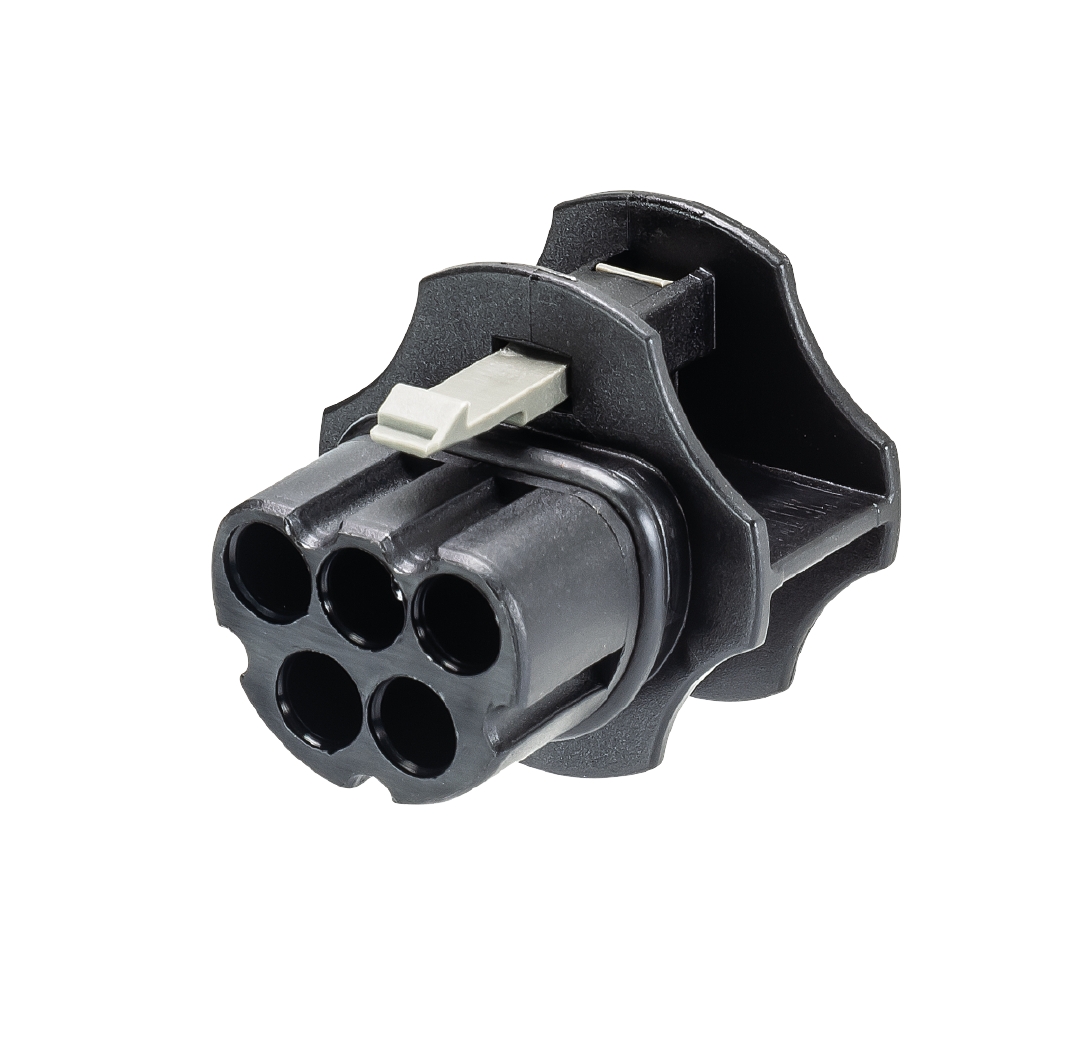

RST20i5/4 cover piece, for covering unused female connectors, color black
commercial data
|
article number
|
Z5.565.9853.1
|
|---|---|
|
article description
|
cover for female connector SW
|
|
EAN
|
4015573848689
|
|
Minimum order quantitiy
|
1
|
|
country of origin
|
DE
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
176 mm
|
|---|---|
|
width packed
|
124 mm
|
|
height packed
|
137 mm
|
|
gross weight packed
|
690 g
|
|
volume packed
|
2990 ccm
|
|
net weight single part
|
6.024 g
|
|
volume single part
|
29.9 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
100 piece(s)
|
technical data
|
length
|
30 mm
|
|---|---|
|
width
|
30 mm
|
|
height
|
32 mm
|
|
color
|
black
|
|
version of construction
|
not captive against loss, for female
|
|
type of construction
|
cover piece for 4-/5-pole
|
classification
|
ETIM 5.0
|
accessories for plug-in building installation
|
|---|---|
|
ECLASS 8.1
|
plug-in building installation (electro, unspecified)
|
|
ETIM 6.0
|
EC002863
|
|
ETIM 7.0
|
EC002863
|
|
ECLASS 11
|
27440690
|
|
ETIM 8.0
|
EC002863
|
|
ETIM 9.0
|
EC002863
|
