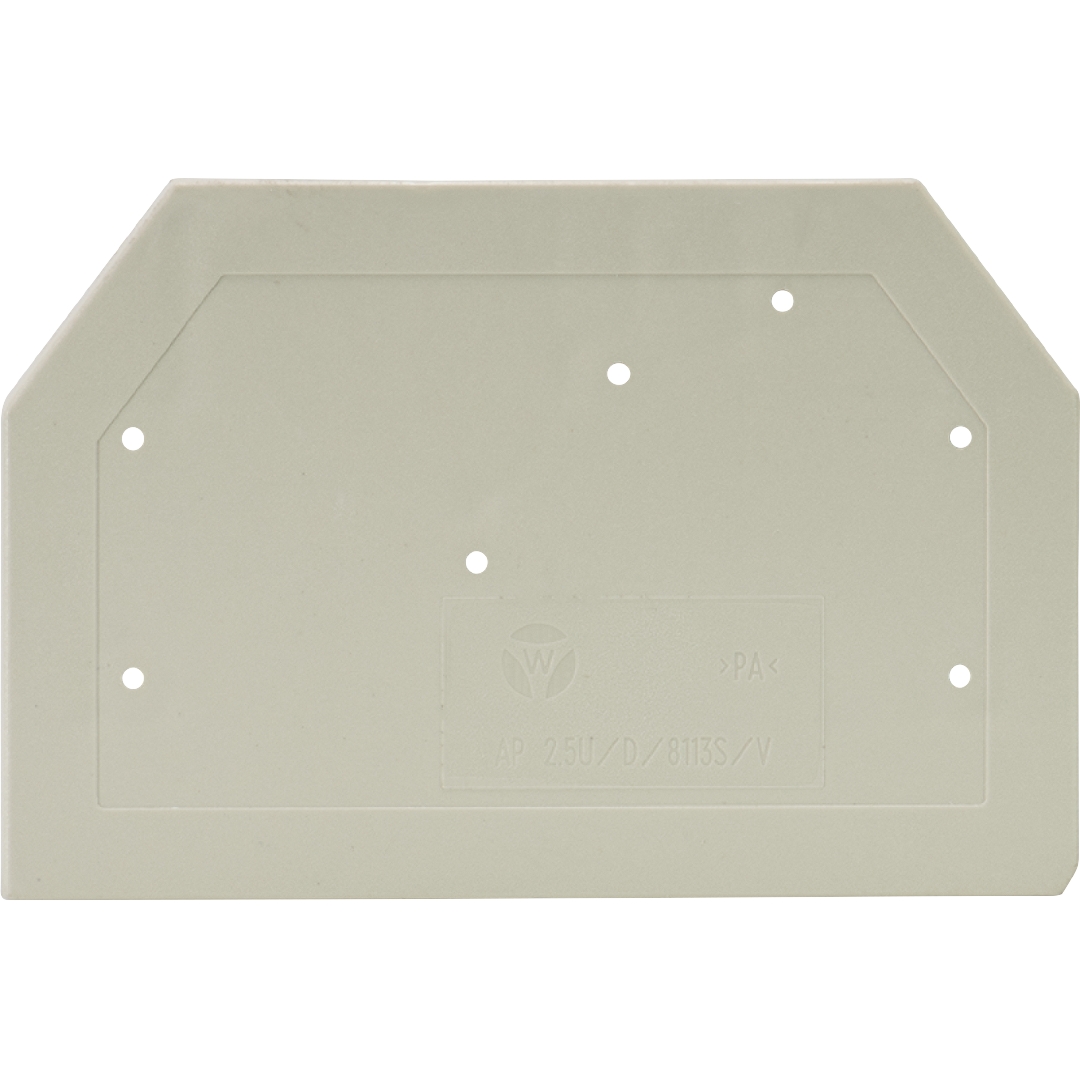

end plate AP 2,5 U/D/8113 S/V/V0
Article number 07.311.9055.0
End plate for DIN rail terminal blocks type WK U/D8113 S/V..., color: grey
commercial data
|
article number
|
07.311.9055.0
|
|---|---|
|
article description
|
end plate AP 2,5 U/D/8113 S/V/V0
|
|
EAN
|
4015573600133
|
|
Minimum order quantitiy
|
500
|
|
country of origin
|
DE
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
300 mm
|
|---|---|
|
width packed
|
150 mm
|
|
height packed
|
0 mm
|
|
gross weight packed
|
33 g
|
|
volume packed
|
198 ccm
|
|
net weight single part
|
3 g
|
|
volume single part
|
19.8 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
10 piece(s)
|
general
|
color
|
grey
|
|---|---|
|
type of end plate
|
yes
|
|
type of partition
|
no
|
|
thickness
|
2.5 mm
|
|
snap in
|
yes
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
classification
|
ETIM 5.0
|
endplate and partition plate
|
|---|---|
|
ECLASS 8.1
|
endplate and partition plate
|
|
ETIM 4.0
|
endplate and partition plate
|
|
ETIM 3.0
|
endplate and partition plate
|
|
ETIM 6.0
|
EC000886
|
|
ETIM 7.0
|
EC000886
|
|
ECLASS 11
|
27141133
|
|
ETIM 8.0
|
EC000886
|
|
ETIM 9.0
|
EC000886
|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Documentation
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Data sheet | - | 45.25kB | |
| Tender specifications | - | 539.00B | HTM |
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
| REACH-SVHC certificate | - | 196.96kB | |
| RoHS certificate | - | 197.18kB |
Marketing
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Catalogues | - | 18.17MB |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
| 3D product images | - | 27.41kB | |
| CAD STEP data | - | 10.80kB | STP |
| CAD IGES data | - | 18.42kB | IGS |
| CAD JT data | - | 12.13kB | JT |
