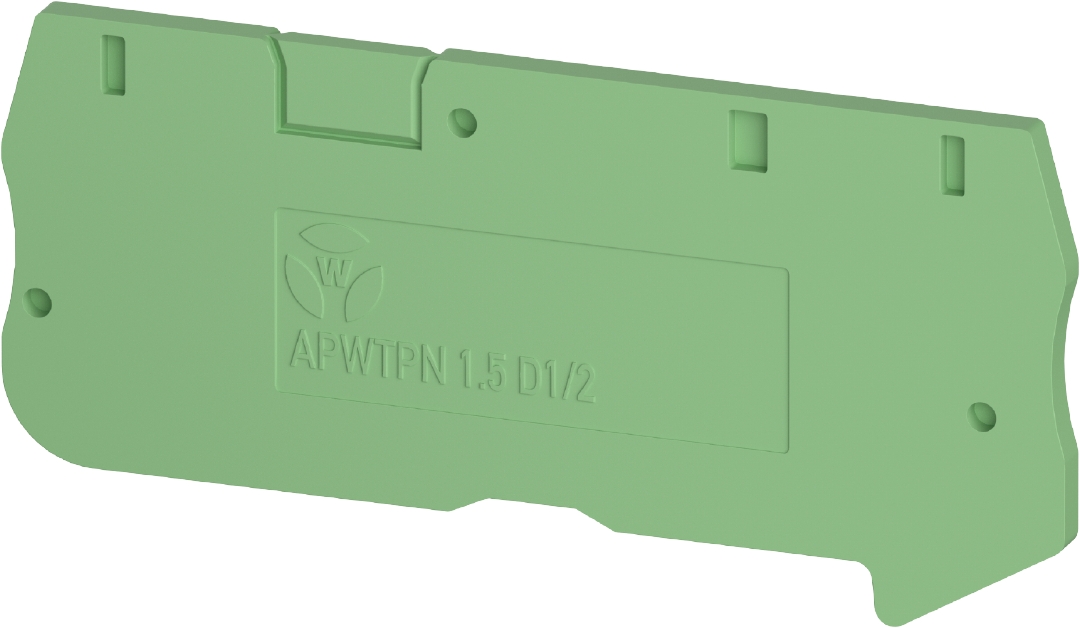

end plate APWTPN 1.5 D1/2 GN
Article number 0D.202.2155.7
end plate inflammability class of insulation material acc. with ul94 V0, type of end plate yes, thickness 2 mm, length 58 mm, color green
commercial data
|
article number
|
0D.202.2155.7
|
|---|---|
|
article description
|
end plate APWTPN 1.5 D1/2 GN
|
|
EAN
|
4049088718014
|
|
Minimum order quantitiy
|
100
|
|
country of origin
|
CN
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
185 mm
|
|---|---|
|
width packed
|
120 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
41 g
|
|
volume packed
|
222 ccm
|
|
net weight single part
|
2 g
|
|
volume single part
|
11.056 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
20 piece(s)
|
general
|
color
|
green
|
|---|---|
|
type of end plate
|
yes
|
|
thickness
|
2 mm
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
2 mm
|
|
length
|
58 mm
|
|
material
|
plastic
|
|
height
|
27.7 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000886
|
|---|
product compliance
|
REACH-SVHC conformity status
|
compliant
|
|---|
