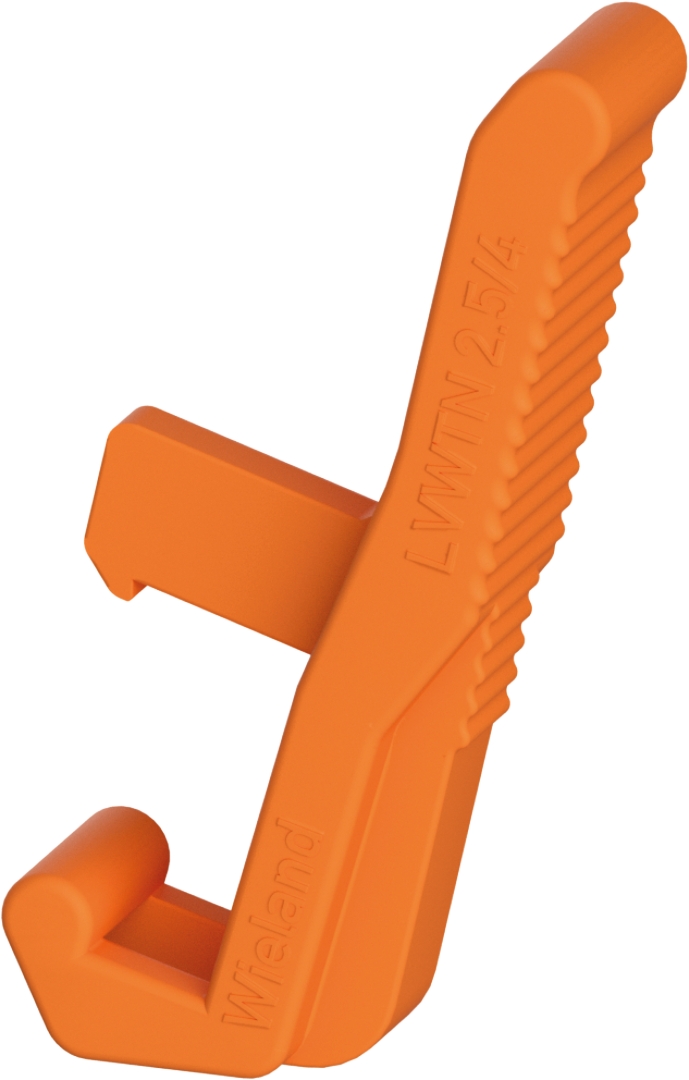

lever LVWTN 2.5/4
Article number 0D.S03.6955.9
lever LVWTN 2.5/4 length 13.2 mm, height 22.5 mm, material plastic, color orange, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
0D.S03.6955.9
|
|---|---|
|
article description
|
lever LVWTN 2.5/4
|
|
EAN
|
4049088723025
|
|
Minimum order quantitiy
|
100
|
|
country of origin
|
CN
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
100 mm
|
|---|---|
|
width packed
|
70 mm
|
|
height packed
|
10 mm
|
|
gross weight packed
|
27.4 g
|
|
volume packed
|
70 ccm
|
|
net weight single part
|
1.32 g
|
|
volume single part
|
5.67 ccm
|
|
packaging
|
bag
|
|
packaging quantity
|
20 piece(s)
|
general
|
color
|
orange
|
|---|---|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
width/grid dimension
|
5 mm
|
|
length
|
13.2 mm
|
|
material
|
plastic
|
|
height
|
22.5 mm
|
|
halogen free
|
yes
|
classification
|
ETIM 9.0
|
EC000886
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Documentation
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 90.05kB |
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 196.95kB | |
|
|
- | 197.28kB |
Marketing
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 18.17MB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 51.42kB | |
|
|
- | 49.46kB | TIF |
|
|
- | 1.05MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 546.77kB | |
|
|
- | 832.31kB | STP |
|
|
- | 2.22MB | IGS |
|
|
- | 529.00kB | JT |
