THE MULTI-POLE

revos HD

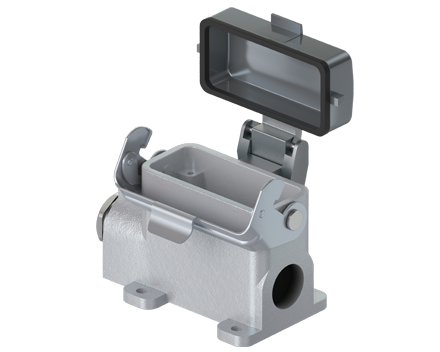

revos HD is the specialist for high-pole connections. The robust housings offer space for contact inserts with 15 to 64 poles and are designed for currents up to 10 A (as per DIN EN 17 5301-801). Alongside system engineering and machine building, revos HD also demonstrates its strengths in escalators, small motors, and injection molding machines.

Revos HD

THE MULTI-POLE SPECIALIST IN HARSH ENVIRONMENTS

revos HD boasts:

  • A high contact density
  • A reduction in control cabinet volume due to the compact design
  • Simple potential distribution with insulated connection comb
  • A wide variety of labeling options

revos HD is ideal for use in machine, control, and switching systems.



Revos HD

TECHNICAL DATA



Connection technologiesCrimp, screw
Rated currentUp to 16 A
Rated voltage250 V
Number of poles15, 25, 40, 64 / 10, 16, 32
Contact surfaceTin, silver, gold
Protection ratingUp to IP65
Pollution degree3
Temperature range-40 to +110 °C



DOWNLOADS

revos Industrial Multipole Connector - Catalog

0530.1 | 39 MB
