FSC WIRING SYSTEM

wiecon FSC

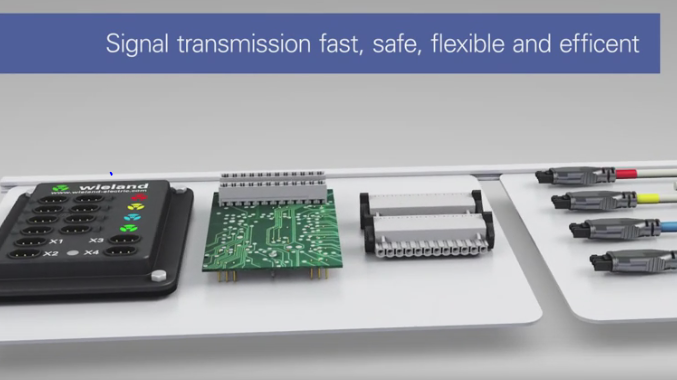

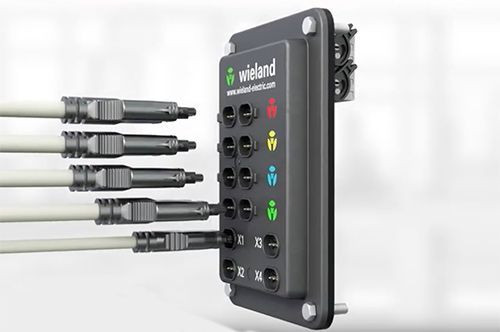

The modular FSC wiring system with its one-way pluggability is an easy-to-handle form of control cabinet wiring for serial system engineering.

The FSC module combines the feed-through and distribution of signal cables in a particularly compact form and allows coded plugging with nearly unlimited variety.



FSC

FAST & PERFECT INSTALLATION

Series production of systems is optimized through the use of pre-assembled cables with coded plugs and customized PCBs.

The wiecon FSC module bundles the benefits of all areas to create a contemporary, optimized installation. With full testing of cables and codings, time and money can be saved during production without the need to use qualified personnel.

TECHNICAL DATA

Nominal voltage 24 V DC
Nominal current 3 A
Protection rating IP54
Number of poles UP to 6
Coding Up to 32 coding options
Slots 10/12/16
Electronics Customer-specific placement
Approval UL/CSA

DOWNLOADS

Printed circuit board terminals and connectors - brochure

0580.1 | 7 MB
