Safety Light Curtains Type 4
The SLC4 series from Wieland is ideal for finger and hand protection and is used to monitor safe access to machines. The SLC4 safety light curtains guarantee high availability and a reduction in machine/plant downtimes. The two different variants Base and Standard-Muting can solve standard as well as more complex applications, including muting-applications.
Safety Light Curtains Type 4
Hazardous points of operation and access to machines must be efficiently and ergocomically monitored, especially in production processes that requires frequent intervention. SLC4 from Wieland Electric provide a highly reliable and easy to use solution for these applications.
Features of the SLC4
Safety Light Curtains
- Configuration without software
- Zero dead zone
- All models are based on the same platform
- Cleary visible LEDs for on-site diagnostic and easy alignment
- Protective field heights from 300 up to 2100 mm
Benefits OF THE SLC4
Safety Light Curtains
- Easy and fast installation without programming. Plug&Play for Base models.
- Space saving installation and flexible integration in the machine
- Easy replacement without design changes + reduced number of required accessories
- Fast on-site diagnostic to reduce downtimes of the machine
- Suitable variant for almost any application
RELIABLE AND COST-EFFICIENT FINGER AND HAND PROTECTION
Variants OF THE SLC4
Safety Light Curtains
SLC4 safety light curtains from Wieland Electric are available as base and standard muting variants and offer functions that are perfectly suited to your different applications. As all variants are based on the same platform, the SLC4 safety light curtains can be easily interchanged, e.g. for customisation or retrofitting on machines.
COMPARISON OF OUR SAFETY LIGHT CURTAINS
Safety Light Curtians
SLC4 Base
- Suitable for finger and hand protection
- Easy installation (Plug&Play - use without configuration)
- Type 4/ PL e/ SIL 3
Safety Light Curtians

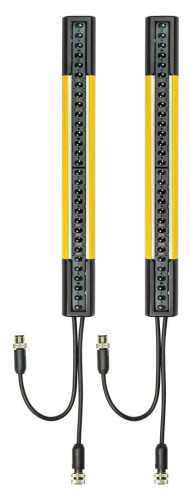

SLC4 Standard Muting
- Suitable for finger and hand protection with muting functions
- Easy commissioning and parameterization due to dip-switches
- Type 4/ PL e/ SIL 3
COMPATIBLE ACCESSORIES FOR SLC4 SAFETY LIGHT CURTAINS
Select suitable accessories for installing, aligning and extending your SLC4 safety light curtain application – including device columns, alignment plates and mirror columns for flexible machine safeguarding.

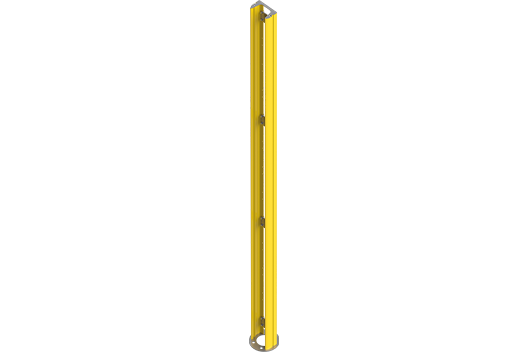

DEVICE COLUMN
For stable installation of SLC4 light curtains
Supports flexible mounting, optimized cable routing and easy cleaning.
- Stable mounting
- Tidy cable routing
- Easy to clean

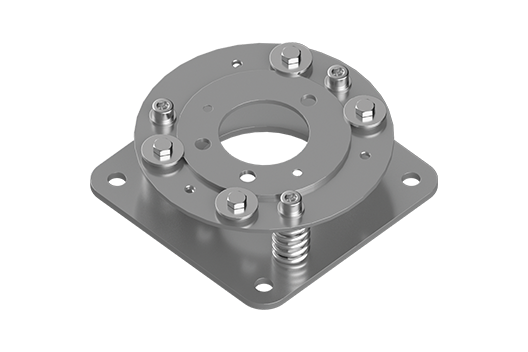

ALIGNMENT PLATE
For precise alignment during installation
Helps position SLC4 safety light curtains quickly and accurately.
- Precise alignment
- Faster setup
- Easier commissioning

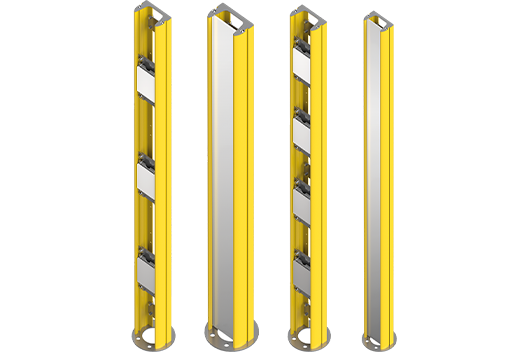

MIRROR COLUMN
For multi-side safeguarding
Deflects the protective field around the machine to enable flexible access protection.
- Extended protection around corners and edges
- Multi-side safeguarding
- Cost efficient solutions
| Article number | Description |
|---|---|
| R1.690.0020.0 | Device Column with mounting kit for floor assembly, height 1050 mm |
| R1.690.0021.0 | Device Column with mounting kit for floor assembly, height 1350 mm |
| R1.690.0022.0 | Device Column with mounting kit for florr assembly, height 1650 mm |
| R1.690.0023.0 | Device Column with mounting kit for florr assembly, height 1950 mm |
| R1.690.0024.0 | 360° Alignment Plate with mounting kit for Device and Mirror Columns |
| R1.690.0025.0 | 360° Alignment Plate with springs and mounting kit for Device and Mirror Columns |
| R1.690.0030.0 | Mirror Column with a fixed, continuous mirror surface and mountin kit for floor assembly, heigth 1050 mm |
| R1.690.0031.0 | Mirror Column with a fixed, continuous mirror surface and mountin kit for floor assembly, heigth 1350 mm |
| R1.690.0042.0 | Mirror Column with a fixed, continuous mirror surface and mountin kit for floor assembly, heigth 1650 mm |
| R1.690.0043.0 | Mirror Column with a fixed, continuous mirror surface and mountin kit for floor assembly, heigth 1950 mm |
