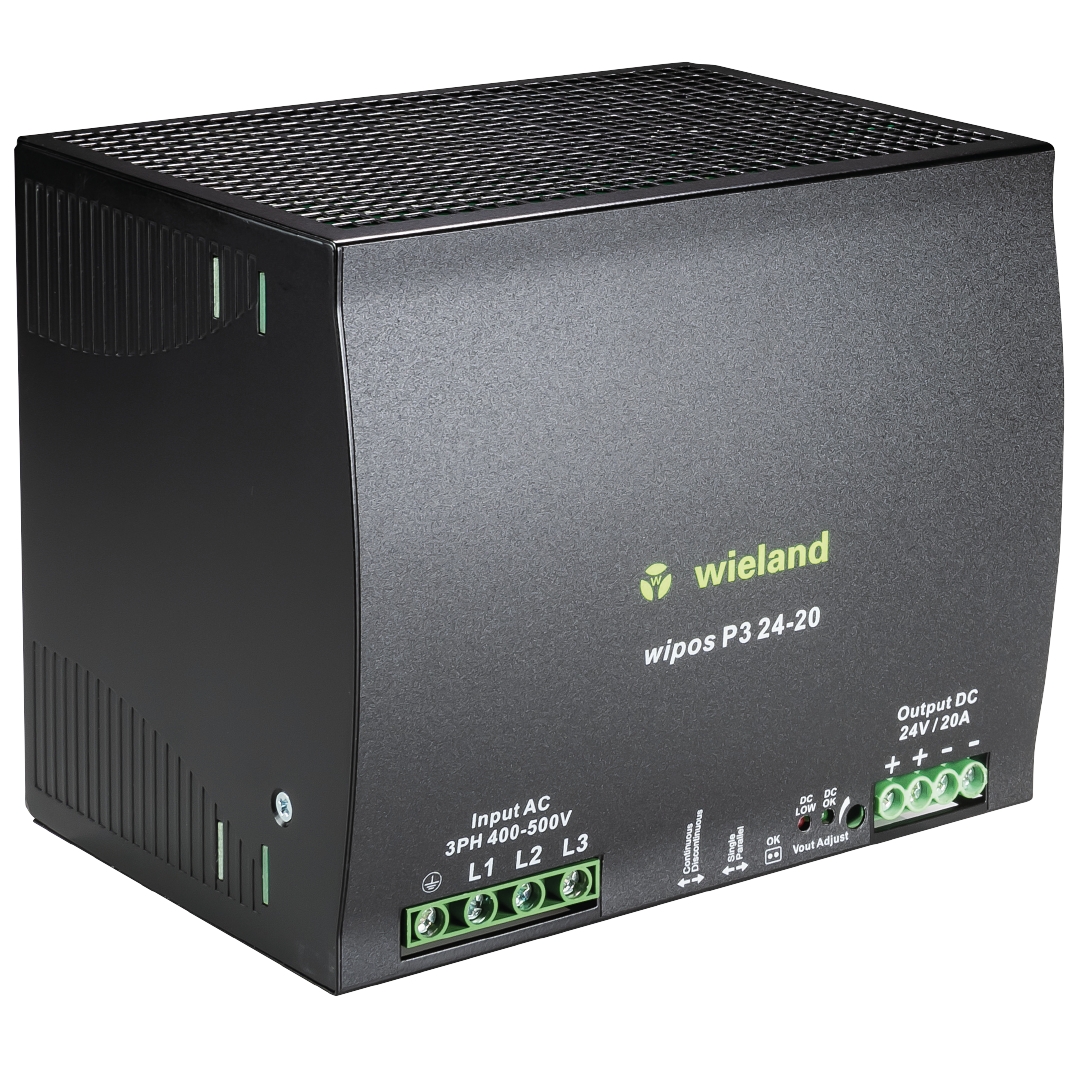

switched-mode power supply WIPOS P3 24-20

DISCONTINUATION - LAST ORDER

Article number 81.000.6180.0

wipos switched-mode power supply, nominal voltage: 24 V DC / 20A (setting range 22,5-28,5 V DC), sustained short-circuit protection, input voltage range: 340-575 V AC, 480-820 V DC, 3 phase, W x H x D: 150 × 123,6 × 118,2 mm

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Downloads

Retailer

commercial data

article number	81.000.6180.0
article description	switched-mode power supply WIPOS P3 24-20
EAN	4049088058240
Minimum order quantitiy	1
country of origin	TW
customs tariff number	85044083

packaging dimensions

length packed	200 mm
width packed	190 mm
height packed	165 mm
gross weight packed	1925.7 g
volume packed	6270 ccm
net weight single part	1694.3 g
volume single part	6270 ccm
packaging	cardboard
packaging quantity	1 piece(s)

certificates / approvals

general

connection type	screw connection
suitable for modular version	no
mounting type, other	no
mounting type, wall mounting	no
rail mounting possible	yes
housing material	metal
operating temperature min.	-30 °C
operating temperature max.	71 °C
storage temperature / transport min.	85 °C
storage temperature / transport max.	-30 °C
degree of protection (IP)	IP20
pollution degree	2
parallel-service possible	yes
number of parallel switchable device	2
relative humidity min.	20 %
relative humidity max.	95 %
number of phases	3 phase power supply

technical data

power consumption	533 VA
type of voltage (input voltage)	AC/DC
power output	480 W
type of output voltage	DC
output voltage stabilized	yes
min. output voltage	22.5 V
max. output voltage	28.5 V
output voltage	24 V
output current	20 A
input voltage AC min.	340 V
input voltage AC max.	575 V
input voltage DC min.	480 V
input voltage DC max.	820 V
connector cross section (input	min. 0.5mm² (AWG24)max. 6mm² (AWG10)
connector cross section (output)	min. 0.5mm² (AWG24)max. 6mm² (AWG10)
rated frequency min.	47 Hz
rated frequency max.	63 Hz
power-factor correction (PFC)	ja
function display	"DC OK" (LED green) (U(o) 17.6...19.4V)
overload protection min.	110 %
overload protection max.	135 %
efficiency	90 %
grid control	1 %
load fluctuation	1 %
temperature coefficient	±0,03%/K
ripple and noise	0.1 V
isolating voltage Input AC	3000 V
isolating voltage Output DC	4242 V
cohesive resistance (In-/Output)	100 MOhm
relative humidity min.	20 %
cooling	free convection
MTBF	411,000h
wire strip length	8 m
permissible torque max.	0.6 Nm
number of +	2
number of -	2
further terminals	L1, L2, L3, N, PE, OK (2x Relay-NO)
relative humidity max.	95 %
output voltage accuracy	1 %
control"Continuous/ Discontinuous"	behaviour at short circuiting (Fold Forward/Hiccup mode)
control "Single / Parallel"	operating mode: single operation / parallel operation
function display "DC Low"	"DC Low" (LED red)
relay contact "OK"	19.4 V
relay contact "isolation voltage"	500 V
relay contact "load current"	0.3 A
input fuse	3x T3,15A / 500V AC (intern)
TÜV/safety	EN60950-1, EN61558-1, EN61558-2-16(comply with EN60204) , IRAM
approval UL	UL 508 Listed, UL60950-1 Recognized
short-circuit protective device	Continuous (switch setting "C"): Current limiting (fold Forward)Discontinuous (switch setting "D"): Hiccup-Mode: Cut-off after 3 seconds, autom. restart after 30 seconds.
max. starting current	20 A
input protection	varistor (voltage-sensitive resistor)

output

type of output voltage	DC
power output	480 W
output voltage stabilized	yes
output voltage	24 V
min. output voltage	22.5 V
max. output voltage	28.5 V
output current	20 A
Over voltage proctection (OVP)	33 V

input

type of voltage (input voltage)	AC/DC
power consumption	533 VA
input voltage DC min.	480 V
input voltage DC max.	820 V
input voltage AC min.	340 V
input voltage AC max.	575 V
rated frequency min.	47 Hz
rated frequency max.	63 Hz
max. starting current	20 A
input fuse	3x T3,15A / 500V AC (intern)
input protection	varistor (voltage-sensitive resistor)

dimensions

depth	119 mm
width	151 mm
height	124 mm
mounting distance horizontal	25 mm
mounting distance vertical	25 mm
weight	1.75 kg

classification

ETIM 5.0	DC-power supply
ECLASS 8.1	DC-power supply
ETIM 6.0	EC002540
ETIM 7.0	EC002540
ECLASS 11	27040701
ETIM 8.0	EC002540
ETIM 9.0	EC002540

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Documentation

Filename	Description	Filesize	File type
Mounting instructions	-	321.38kB	PDF
Technical data sheet - catalogue excerpts	-	189.22kB	PDF
Data sheet	-	118.43kB	PDF

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	275.91kB	PDF
UKCA declaration of conformity	-	57.06kB	PDF
Approval cULus	-	214.09kB	PDF
Approval cURus	-	108.91kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF
RoHS certificate	-	197.18kB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	49.11kB	PDF
Customer drawings (TIFF)	-	46.85kB	TIF
Customer drawings (DXF)	-	2.68MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	1.34MB	PDF
CAD STEP data	-	11.42MB	STP
CAD IGES data	-	17.08MB	IGS
CAD JT data	-	4.79MB	JT

Software

Filename	Description	Filesize	File type
EPLAN P8 data	-	1.74MB	ZIP
