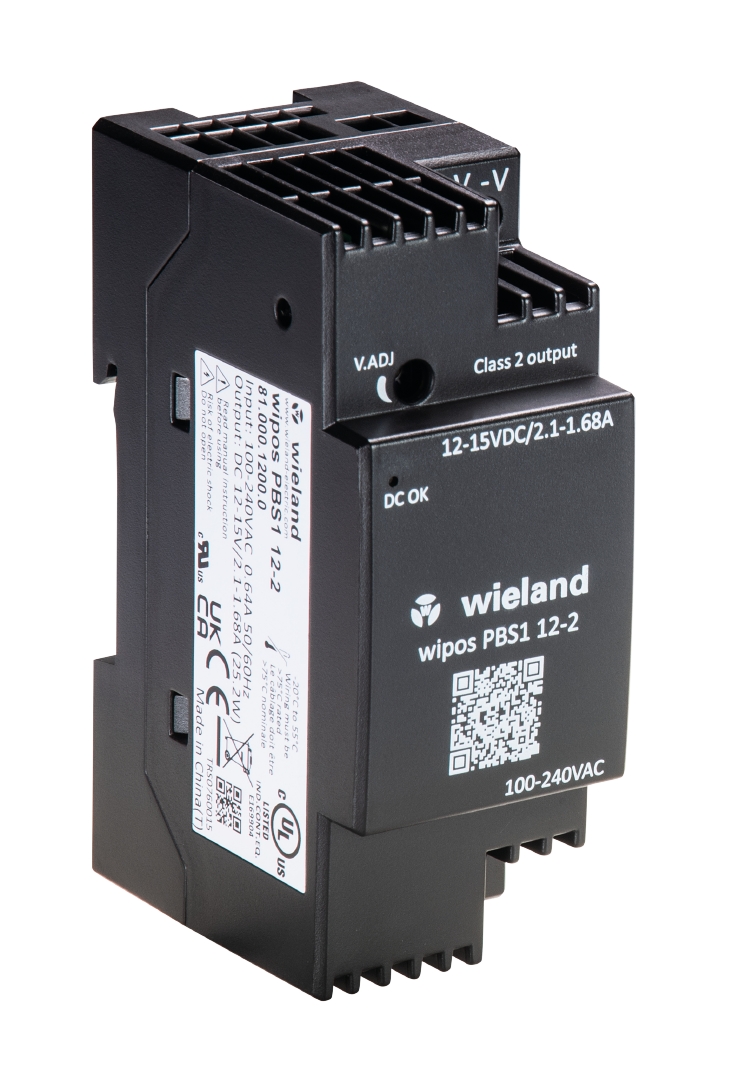

switched-mode power supply WIPOS PBS1 12-2

Article number 81.000.1200.0

Primary-switched power supply unit wipos PBS1, Screw connection, DIN Rail mounting, Input: 85-264 V AC, Output: 12-15 V DC / 2,1 A, Power: 25,2 W, Efficiency: 88.0%, WxHxD: 36x91x55,6

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Downloads

Retailer

commercial data

article number	81.000.1200.0
article description	switched-mode power supply WIPOS PBS1 12-2
EAN	4049088730832
Minimum order quantitiy	1
country of origin	CN
customs tariff number	85044083

packaging dimensions

length packed	0 mm
width packed	0 mm
height packed	0 mm
gross weight packed	0 g
volume packed	0 ccm
net weight single part	120 g
volume single part	301.098 ccm
packaging	cardboard
packaging quantity	1 piece(s)

certificates / approvals

general

connection type	screw connection
suitable for modular version	yes
mounting type, other	no
mounting type, wall mounting	no
rail mounting possible	yes
housing material	Polycarbonate (PC)
operating temperature min.	-20 °C
operating temperature max.	71 °C
storage temperature / transport min.	85 °C
storage temperature / transport max.	-40 °C
degree of protection (IP)	IP20
protection class	II
pollution degree	2
parallel-service possible	no
relative humidity min.	5 %
relative humidity max.	95 %
number of phases	single phase power supply

technical data

type of voltage (input voltage)	AC
power output	25.2 W
type of output voltage	DC
output voltage stabilized	yes
secondary voltage range max.	12 V
min. output voltage	12 V
max. output voltage	19 V
min. input voltage	100 V
output voltage	12 V
output current	2 A
max. input voltage	240 V
min. output voltage	12 V
max. output voltage	19 V
input voltage AC min.	85 V
input voltage AC max.	264 V
input voltage DC min.	120 V
input voltage DC max.	375 V
input current, max.	0.4 A
display	LED
connector cross section (input	min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
connector cross section (output)	min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
rated frequency min.	47 Hz
rated frequency max.	63 Hz
power-factor correction (PFC)	ja
overload protection min.	105 %
efficiency	88 %
grid control	1 %
load fluctuation	1 %
hold time 115V AC	20 ms
isolating voltage Input AC	3000 V
cohesive resistance (In-/Output)	100 MOhm
relative humidity min.	5 %
cooling	free convection
MTBF	-
wire strip length	5 mm
permissible torque max.	0.56 Nm
number of +	1
number of -	1
further terminals	L, N
relative humidity max.	95 %
control "Adj"	trimming potentiometer for fine-tuning of U(out)
short-circuit protective device	current limiting (hiccup mode)
max. starting current	50 A

output

type of output voltage	DC
power output	25.2 W
output voltage stabilized	yes
output voltage	12 V
min. output voltage	12 V
max. output voltage	19 V
min. output voltage	12 V
max. output voltage	19 V
output current	2 A

input

type of voltage (input voltage)	AC
input voltage DC min.	120 V
input voltage DC max.	375 V
min. input voltage	100 V
max. input voltage	240 V
input voltage AC min.	85 V
input voltage AC max.	264 V
rated frequency min.	47 Hz
rated frequency max.	63 Hz
input current, max.	0.4 A
max. starting current	50 A

dimensions

depth	55.6 mm
width	36 mm
height	94 mm
weight	120 g

classification

ETIM 5.0	DC-power supply
ECLASS 8.1	DC-power supply
ETIM 6.0	EC002540
ETIM 7.0	EC002540
ECLASS 11	27040701
ETIM 8.0	EC002540
ETIM 9.0	EC002540

product compliance

REACH-SVHC conformity status	compliant
