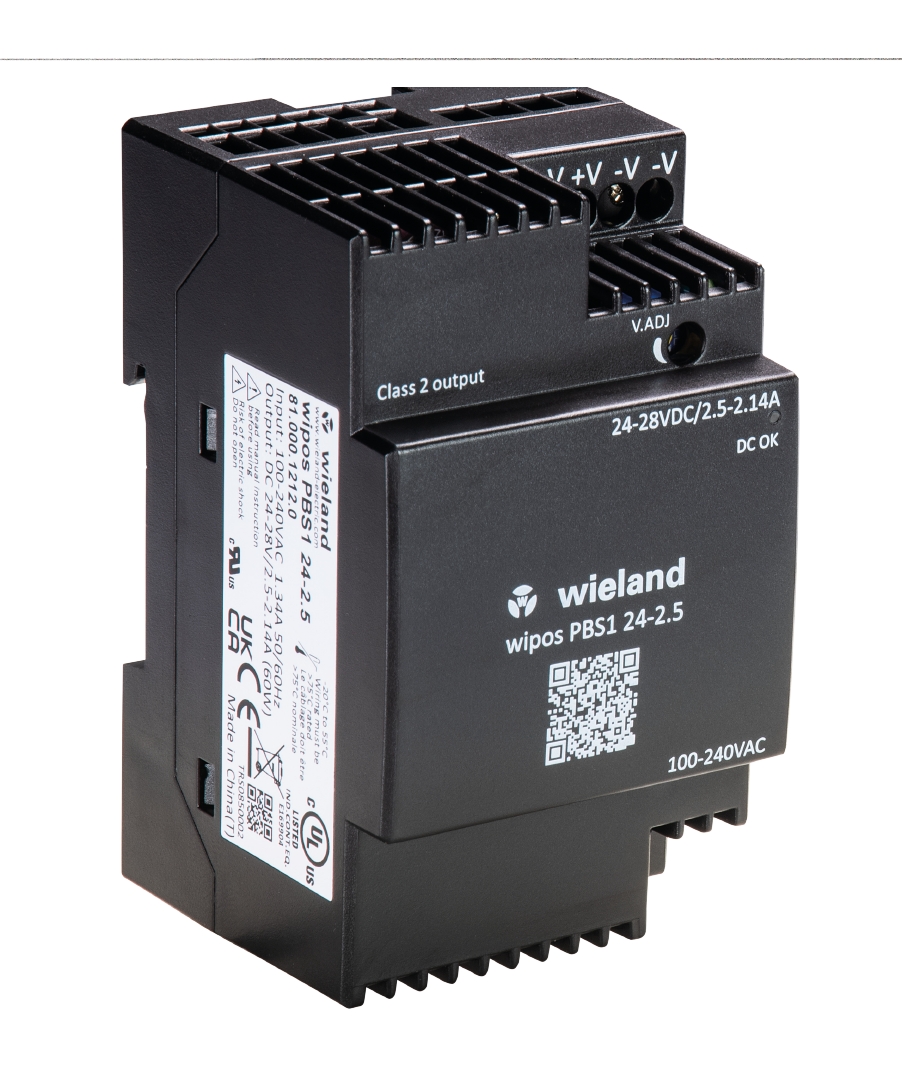

switched-mode power supply WIPOS PBS1 24-2.5
Article number 81.000.1212.0
Primary-switched power supply unit wipos PBS1, Screw connection, DIN Rail mounting, Input: 85-264 V AC, Output: 24-28 V DC / 2,5 A, Power: 60 W, Efficiency: 90.0%, WxHxD: 54x91x55,6
commercial data
|
article number
|
81.000.1212.0
|
|---|---|
|
article description
|
switched-mode power supply WIPOS PBS1 24-2.5
|
|
EAN
|
4049088730863
|
|
Minimum order quantitiy
|
1
|
|
country of origin
|
CN
|
|
customs tariff number
|
85044083
|
packaging dimensions
|
length packed
|
0 mm
|
|---|---|
|
width packed
|
0 mm
|
|
height packed
|
0 mm
|
|
gross weight packed
|
0 g
|
|
volume packed
|
0 ccm
|
|
net weight single part
|
200 g
|
|
volume single part
|
430.14 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
1 piece(s)
|
certificates / approvals
general
|
connection type
|
screw connection
|
|---|---|
|
suitable for modular version
|
yes
|
|
mounting type, other
|
no
|
|
mounting type, wall mounting
|
no
|
|
rail mounting possible
|
yes
|
|
housing material
|
Polycarbonate (PC)
|
|
operating temperature min.
|
-20 °C
|
|
operating temperature max.
|
71 °C
|
|
storage temperature / transport min.
|
85 °C
|
|
storage temperature / transport max.
|
-40 °C
|
|
degree of protection (IP)
|
IP20
|
|
protection class
|
II
|
|
pollution degree
|
2
|
|
parallel-service possible
|
no
|
|
relative humidity min.
|
5 %
|
|
relative humidity max.
|
95 %
|
|
number of phases
|
single phase power supply
|
technical data
|
type of voltage (input voltage)
|
AC
|
|---|---|
|
power output
|
60 W
|
|
type of output voltage
|
DC
|
|
output voltage stabilized
|
yes
|
|
secondary voltage range max.
|
24 V
|
|
min. output voltage
|
24 V
|
|
max. output voltage
|
35 V
|
|
min. input voltage
|
100 V
|
|
output voltage
|
24 V
|
|
output current
|
2.5 A
|
|
max. input voltage
|
240 V
|
|
min. output voltage
|
24 V
|
|
max. output voltage
|
35 V
|
|
input voltage AC min.
|
85 V
|
|
input voltage AC max.
|
264 V
|
|
input voltage DC min.
|
120 V
|
|
input voltage DC max.
|
375 V
|
|
input current, max.
|
0.8 A
|
|
display
|
LED
|
|
connector cross section (input
|
min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
|
|
connector cross section (output)
|
min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
|
|
rated frequency min.
|
47 Hz
|
|
rated frequency max.
|
63 Hz
|
|
power-factor correction (PFC)
|
ja
|
|
overload protection min.
|
105 %
|
|
efficiency
|
90 %
|
|
grid control
|
1 %
|
|
load fluctuation
|
1 %
|
|
hold time 115V AC
|
20 ms
|
|
isolating voltage Input AC
|
3000 V
|
|
cohesive resistance (In-/Output)
|
100 MOhm
|
|
relative humidity min.
|
5 %
|
|
cooling
|
free convection
|
|
MTBF
|
-
|
|
wire strip length
|
5 mm
|
|
permissible torque max.
|
0.56 Nm
|
|
number of +
|
1
|
|
number of -
|
1
|
|
further terminals
|
L, N
|
|
relative humidity max.
|
95 %
|
|
control "Adj"
|
trimming potentiometer for fine-tuning of U(out)
|
|
short-circuit protective device
|
current limiting (hiccup mode)
|
|
max. starting current
|
60 A
|
output
|
type of output voltage
|
DC
|
|---|---|
|
power output
|
60 W
|
|
output voltage stabilized
|
yes
|
|
output voltage
|
24 V
|
|
min. output voltage
|
24 V
|
|
max. output voltage
|
35 V
|
|
min. output voltage
|
24 V
|
|
max. output voltage
|
35 V
|
|
output current
|
2.5 A
|
input
|
type of voltage (input voltage)
|
AC
|
|---|---|
|
input voltage DC min.
|
120 V
|
|
input voltage DC max.
|
375 V
|
|
min. input voltage
|
100 V
|
|
max. input voltage
|
240 V
|
|
input voltage AC min.
|
85 V
|
|
input voltage AC max.
|
264 V
|
|
rated frequency min.
|
47 Hz
|
|
rated frequency max.
|
63 Hz
|
|
input current, max.
|
0.8 A
|
|
max. starting current
|
60 A
|
dimensions
|
depth
|
55.6 mm
|
|---|---|
|
width
|
54 mm
|
|
height
|
94 mm
|
|
weight
|
200 g
|
classification
|
ETIM 5.0
|
DC-power supply
|
|---|---|
|
ECLASS 8.1
|
DC-power supply
|
|
ETIM 6.0
|
EC002540
|
|
ETIM 7.0
|
EC002540
|
|
ECLASS 11
|
27040701
|
|
ETIM 8.0
|
EC002540
|
|
ETIM 9.0
|
EC002540
|
product compliance
|
REACH-SVHC conformity status
|
compliant
|
|---|
Documentation
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 2.11MB | |
|
|
- | 2.21MB | |
|
|
- | 463.11kB | |
|
|
- | 105.97kB |
Approbation
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 226.75kB | |
|
|
- | 215.98kB | |
|
|
- | 281.67kB |
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 197.06kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 43.43kB | |
|
|
- | 41.18kB | TIF |
|
|
- | 1.27MB | DXF |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
|
|
- | 680.28kB | |
|
|
- | 6.23MB | STP |
|
|
- | 22.51MB | IGS |
|
|
- | 4.71MB | JT |
