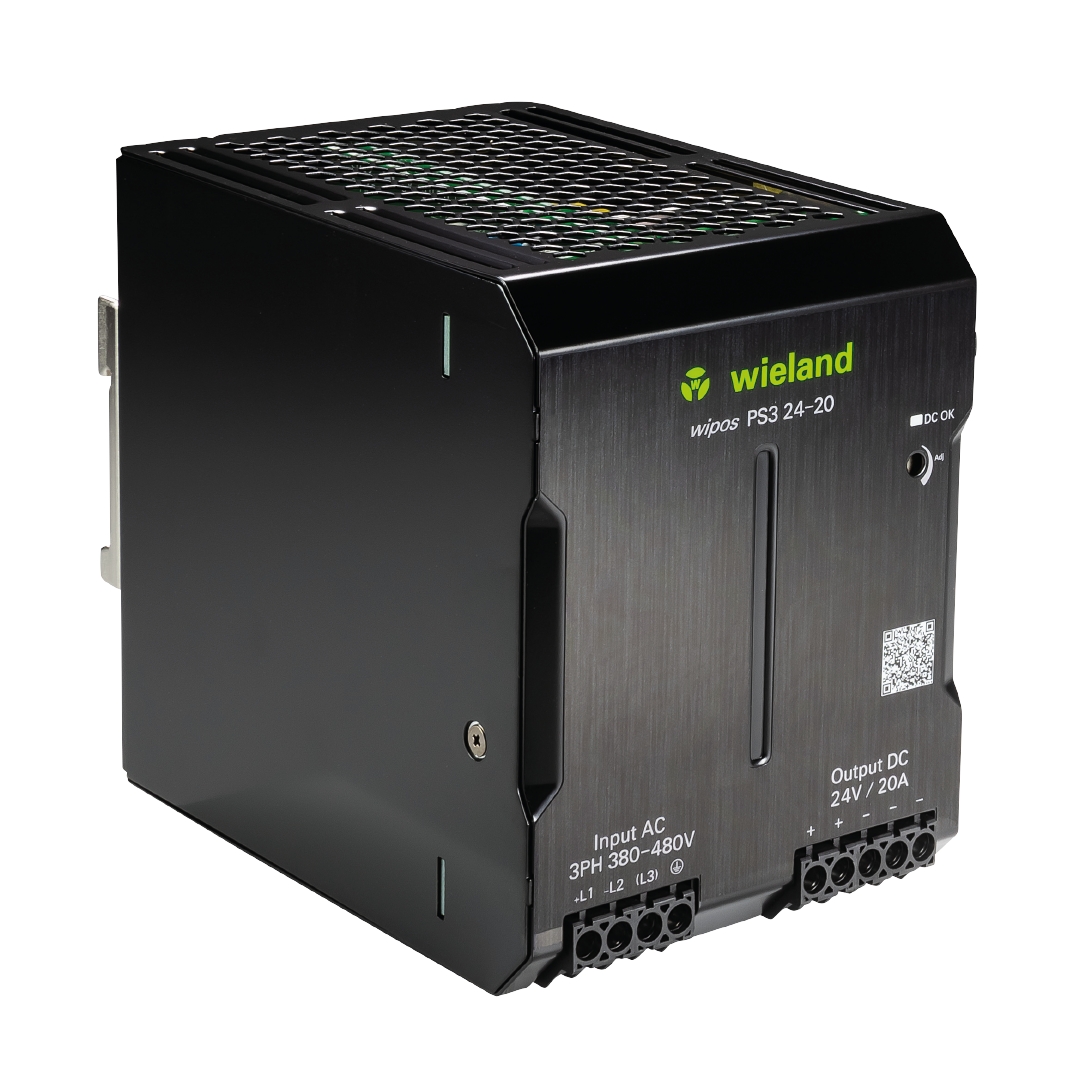

switched-mode power supply WIPOS PS3 24-20

DISCONTINUATION - LAST ORDER

Article number 81.000.6580.0

wipos PS3 switched-mode power supply, nominal voltage: 24 V DC / 20 A (setting range 22,5-29,5 V DC), sustained short-circuit protection, input voltage range: 320-576 V AC / 450-810 V DC, three-phase, W x H x D: 95 × 125 × 150 mm

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Downloads

Retailer

commercial data

article number	81.000.6580.0
article description	switched-mode power supply WIPOS PS3 24-20
EAN	4049088269707
Minimum order quantitiy	1
country of origin	CN
customs tariff number	85044083

packaging dimensions

length packed	186 mm
width packed	179 mm
height packed	161 mm
gross weight packed	1730 g
volume packed	5360.334 ccm
net weight single part	1500 g
volume single part	5360.334 ccm
packaging	cardboard
packaging quantity	1 piece(s)

certificates / approvals

general

connection type	screw connection
suitable for modular version	no
mounting type, other	no
mounting type, wall mounting	no
rail mounting possible	yes
housing material	metal
operating temperature min.	-40 °C
operating temperature max.	70 °C
storage temperature / transport min.	85 °C
storage temperature / transport max.	-40 °C
degree of protection (IP)	IP20
protection class	I
pollution degree	2
parallel-service possible	no
relative humidity min.	0 %
relative humidity max.	95 %
number of phases	3 phase power supply

technical data

type of voltage (input voltage)	AC/DC
power output	480 W
type of output voltage	DC
output voltage stabilized	yes
secondary voltage range max.	22.5 V
min. output voltage	22.5 V
max. output voltage	29.5 V
min. input voltage	380 V
output voltage	24 V
output current	20 A
max. input voltage	480 V
min. output voltage	22.5 V
max. output voltage	28.5 V
input voltage AC min.	320 V
input voltage AC max.	576 V
input voltage DC min.	450 V
input voltage DC max.	810 V
input current, max.	1.2 A
display	LED
connector cross section (input	0.5-6mm²/0.5-4mm² (AWG20-10/AWG20-12)
connector cross section (output)	4-6mm²/4mm² (AWG12-10/AWG12)
rated frequency min.	47 Hz
rated frequency max.	63 Hz
function display	DC OK U(o) ﹥ 19.4V DC
overload protection min.	130 %
power-Boost	120 %
power-Boost time	10 s
efficiency	91 %
grid control	0.5 %
load fluctuation	1.5 %
temperature coefficient	±0.05%/K
ripple and noise	0.19 V
isolating voltage Input AC	3000 V
isolating voltage Output DC	4242 V
cohesive resistance (In-/Output)	100 MOhm
relative humidity min.	0 %
cooling	free convection
MTBF	280,000h
wire strip length	10 mm
permissible torque min.	0.5 Nm
permissible torque max.	0.6 Nm
standards	SELV: EN50178 PELV:50178/EN60204-1
number of +	2
number of -	3
further terminals	+L1, -L2, (L3) (CA: Fasi L1/L2/L3, DC: Positivo +L1, Negativo -L2), PE
relative humidity max.	95 %
control "Adj"	trimming potentiometer for fine-tuning of U(out)
max. starting current	28 A

output

type of output voltage	DC
power output	480 W
output voltage stabilized	yes
output voltage	24 V
min. output voltage	22.5 V
max. output voltage	28.5 V
min. output voltage	22.5 V
max. output voltage	29.5 V
output current	20 A
Over voltage proctection (OVP)	33 V

input

type of voltage (input voltage)	AC/DC
input voltage DC min.	450 V
input voltage DC max.	810 V
min. input voltage	380 V
max. input voltage	480 V
input voltage AC min.	320 V
input voltage AC max.	576 V
rated frequency min.	47 Hz
rated frequency max.	63 Hz
input current, max.	1.2 A
max. starting current	28 A

dimensions

depth	150 mm
width	95 mm
height	125 mm
mounting distance horizontal	20 mm
mounting distance vertical	75 mm
weight	1.6 kg

classification

ETIM 5.0	DC-power supply
ECLASS 8.1	DC-power supply
ETIM 6.0	EC002540
ETIM 7.0	EC002540
ECLASS 11	27040701
ETIM 8.0	EC002540
ETIM 9.0	EC002540

product compliance

ROHS conformity status	compliant/exempted
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	Duty-To-Declare
REACH-SVHC substances	Plumbum
REACH-SVHC CAS numbers	7439-92-1

Documentation

Filename	Description	Filesize	File type
Manual	-	3.57MB	PDF
Mounting instructions	-	2.47MB	PDF
Technical data sheet - catalogue excerpts	-	282.80kB	PDF
Data sheet	-	102.73kB	PDF

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	53.87kB	PDF
UKCA declaration of conformity	-	52.69kB	PDF
Approval cULus	-	441.37kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	197.85kB	PDF
RoHS certificate	-	197.76kB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	43.27kB	PDF
Customer drawings (TIFF)	-	40.95kB	TIF
Customer drawings (DXF)	-	577.37kB	DXF

CAD model

Filename	Description	Filesize	File type
CAD STEP data	-	1.96MB	STP
