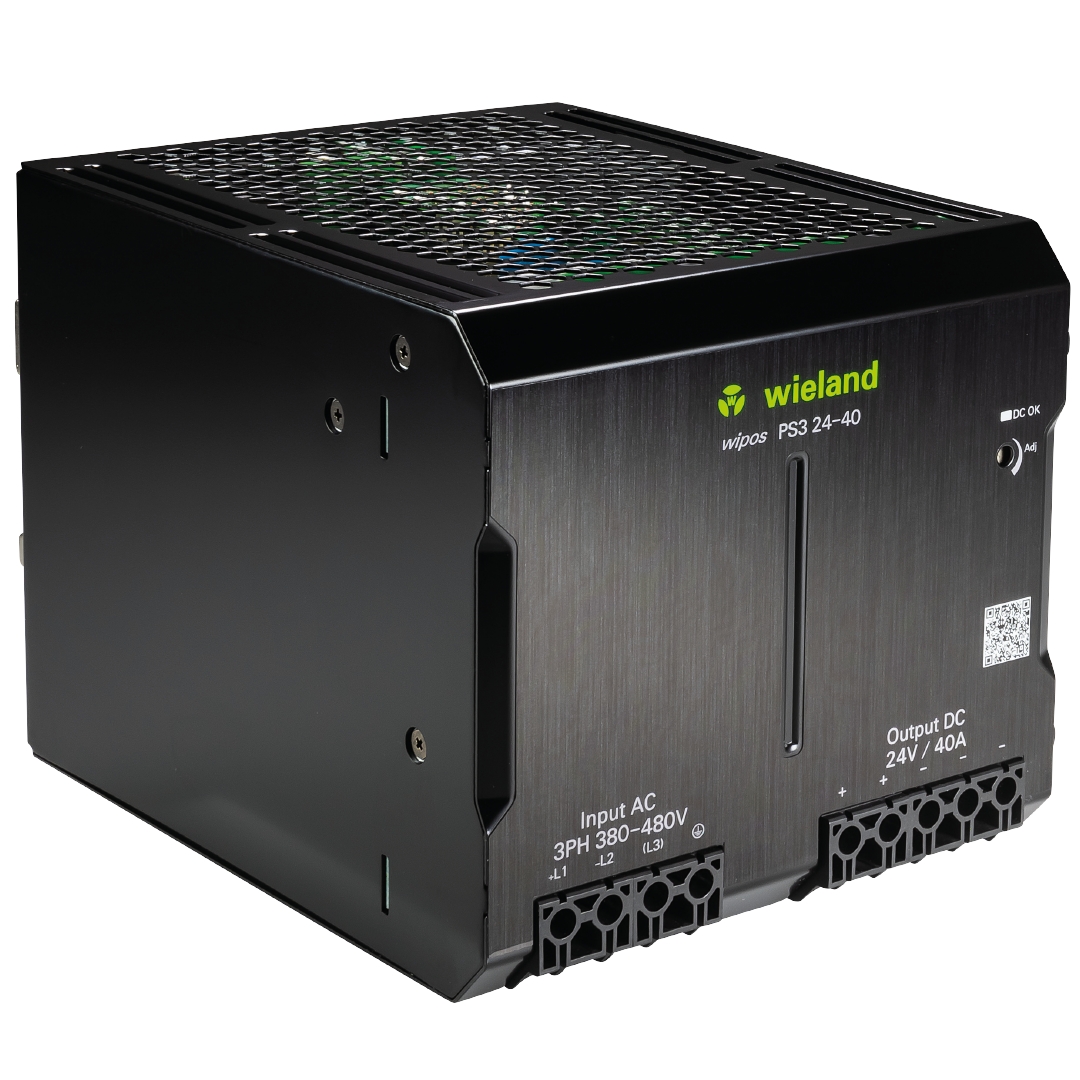

switched-mode power supply WIPOS PS3 24-40
Article number 81.000.6590.0
wipos PS3 switched-mode power supply, nominal voltage: 24 V DC / 40 A (setting range 22,5-29,5 V DC), sustained short-circuit protection, input voltage range: 320-576 V AC, three-phase, W x H x D: 135 × 125 × 180 mm
commercial data
|
article number
|
81.000.6590.0
|
|---|---|
|
article description
|
switched-mode power supply WIPOS PS3 24-40
|
|
EAN
|
4049088269714
|
|
Minimum order quantitiy
|
1
|
|
country of origin
|
CN
|
|
customs tariff number
|
85044083
|
packaging dimensions
|
length packed
|
230 mm
|
|---|---|
|
width packed
|
190 mm
|
|
height packed
|
190 mm
|
|
gross weight packed
|
2190 g
|
|
volume packed
|
8303 ccm
|
|
net weight single part
|
1965 g
|
|
volume single part
|
8303 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
1 piece(s)
|
certificates / approvals
general
|
connection type
|
screw connection
|
|---|---|
|
suitable for modular version
|
no
|
|
mounting type, other
|
no
|
|
mounting type, wall mounting
|
no
|
|
rail mounting possible
|
yes
|
|
housing material
|
metal
|
|
operating temperature min.
|
-40 °C
|
|
operating temperature max.
|
70 °C
|
|
storage temperature / transport min.
|
85 °C
|
|
storage temperature / transport max.
|
-40 °C
|
|
degree of protection (IP)
|
IP20
|
|
protection class
|
I
|
|
pollution degree
|
2
|
|
parallel-service possible
|
no
|
|
relative humidity min.
|
0 %
|
|
relative humidity max.
|
95 %
|
|
number of phases
|
3 phase power supply
|
technical data
|
type of voltage (input voltage)
|
AC
|
|---|---|
|
power output
|
960 W
|
|
type of output voltage
|
DC
|
|
output voltage stabilized
|
yes
|
|
secondary voltage range max.
|
22.5 V
|
|
min. output voltage
|
22.5 V
|
|
max. output voltage
|
29.5 V
|
|
min. input voltage
|
380 V
|
|
output voltage
|
24 V
|
|
output current
|
40 A
|
|
max. input voltage
|
480 V
|
|
min. output voltage
|
22.5 V
|
|
max. output voltage
|
28.5 V
|
|
input voltage AC min.
|
320 V
|
|
input voltage AC max.
|
576 V
|
|
input current, max.
|
2.1 A
|
|
display
|
LED
|
|
connector cross section (input
|
0.5-6mm²/0.5-4mm² (AWG20-10/AWG20-12)
|
|
connector cross section (output)
|
4-6mm²/4mm² (AWG12-10/AWG12)
|
|
rated frequency min.
|
47 Hz
|
|
rated frequency max.
|
63 Hz
|
|
function display
|
DC OK U(o) ﹥ 19.4V DC
|
|
overload protection min.
|
130 %
|
|
power-Boost
|
120 %
|
|
power-Boost time
|
10 s
|
|
efficiency
|
92 %
|
|
grid control
|
0.5 %
|
|
load fluctuation
|
1.5 %
|
|
temperature coefficient
|
±0.05%/K
|
|
ripple and noise
|
0.09 V
|
|
isolating voltage Input AC
|
3000 V
|
|
isolating voltage Output DC
|
4242 V
|
|
cohesive resistance (In-/Output)
|
100 MOhm
|
|
relative humidity min.
|
0 %
|
|
cooling
|
free convection
|
|
MTBF
|
260,000h
|
|
wire strip length
|
10 mm
|
|
permissible torque min.
|
0.5 Nm
|
|
permissible torque max.
|
0.6 Nm
|
|
standards
|
SELV: EN50178 PELV:50178/EN60204-1
|
|
number of +
|
2
|
|
number of -
|
3
|
|
further terminals
|
+L1, -L2, (L3) (CA: Fasi L1/L2/L3, DC: Positivo +L1, Negativo -L2), PE
|
|
relative humidity max.
|
95 %
|
|
control "Adj"
|
trimming potentiometer for fine-tuning of U(out)
|
|
max. starting current
|
28 A
|
output
|
type of output voltage
|
DC
|
|---|---|
|
power output
|
960 W
|
|
output voltage stabilized
|
yes
|
|
output voltage
|
24 V
|
|
min. output voltage
|
22.5 V
|
|
max. output voltage
|
28.5 V
|
|
min. output voltage
|
22.5 V
|
|
max. output voltage
|
29.5 V
|
|
output current
|
40 A
|
|
Over voltage proctection (OVP)
|
33 V
|
input
|
type of voltage (input voltage)
|
AC
|
|---|---|
|
min. input voltage
|
380 V
|
|
max. input voltage
|
480 V
|
|
input voltage AC min.
|
320 V
|
|
input voltage AC max.
|
576 V
|
|
rated frequency min.
|
47 Hz
|
|
rated frequency max.
|
63 Hz
|
|
input current, max.
|
2.1 A
|
|
max. starting current
|
28 A
|
dimensions
|
depth
|
180 mm
|
|---|---|
|
width
|
135 mm
|
|
height
|
125 mm
|
|
mounting distance horizontal
|
20 mm
|
|
mounting distance vertical
|
75 mm
|
|
weight
|
2.7 kg
|
classification
|
ETIM 5.0
|
DC-power supply
|
|---|---|
|
ECLASS 8.1
|
DC-power supply
|
|
ETIM 6.0
|
EC002540
|
|
ETIM 7.0
|
EC002540
|
|
ECLASS 11
|
27040701
|
|
ETIM 8.0
|
EC002540
|
|
ETIM 9.0
|
EC002540
|
product compliance
|
ROHS conformity status
|
compliant/exempted
|
|---|---|
|
ROHS exceptions
|
III-6(c)
|
|
REACH-SVHC conformity status
|
Duty-To-Declare
|
|
REACH-SVHC substances
|
Plumbum
|
|
REACH-SVHC CAS numbers
|
7439-92-1
|
