cable assembly RST08I3 KS12 75 40SW
Article number 4L.437.4030.1

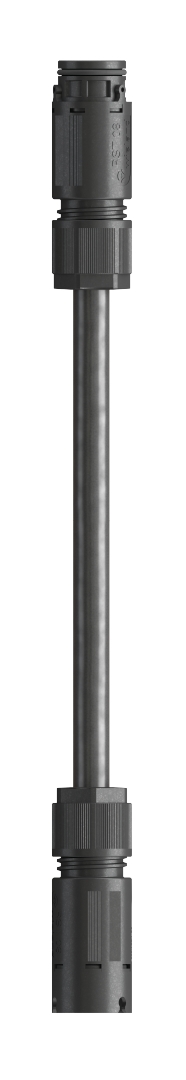

RST® MICRO connecting cable, female - male, number of poles 3, rated voltage 250 V / 400 V, rated current 6 A, cable type H05RN-F, total length 4 m, nominal cross section conductor 0.75 mm², longitudinal sealing yes, color of coding/ contact carrier black
commercial data
|
article number
|
4L.437.4030.1
|
|---|---|
|
article description
|
cable assembly RST08I3 KS12 75 40SW
|
|
EAN
|
4049088562709
|
|
Minimum order quantitiy
|
1
|
|
country of origin
|
CZ
|
|
customs tariff number
|
85444290
|
packaging dimensions
|
length packed
|
398 mm
|
|---|---|
|
width packed
|
302 mm
|
|
height packed
|
198 mm
|
|
gross weight packed
|
8075 g
|
|
volume packed
|
23799 ccm
|
|
net weight single part
|
310 g
|
|
volume single part
|
951.96 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
25 piece(s)
|
general
|
rated current
|
6 A
|
|---|---|
|
rated voltage
|
250 V / 400 V
|
|
rated voltage 2
|
400 V
|
|
rated impulse voltage
|
2.5 kV
|
|
pollution degree
|
3
|
|
mechanical coding
|
yes
|
|
continuity resistor
|
92.3 mOhm
|
|
lockable
|
self-locking (unlocking by hand)
|
|
color of coding/ contact carrier
|
black
|
|
Pole codification
|
1, PE, 2/N
|
|
color of housing inclusive strain relief
|
black
|
model
|
nominal cross section conductor
|
0.75 mm²
|
|---|---|
|
degree of protection (IP)
|
IP66/68 (3m;2h) /IP69
|
|
cable type
|
H05RN-F
|
|
cable color
|
black
|
|
cable diameter max.
|
7 mm
|
|
version of cable
|
female - male
|
|
type of cord set
|
connecting cable
|
|
version cable end 1
|
female
|
|
version cable end 2
|
male
|
|
type of construction
|
cable screw gland
|
|
connection type
|
screw connection
|
|
cable diameter min.
|
6.2 mm
|
material
|
surface finish
|
silver-plated
|
|---|---|
|
halogen free
|
no
|
|
continuous temperature of cable
|
60 °C
|
|
insulation components continous temperature
|
100 °C
|
|
fire load
|
1.312 kWh/St
|
dimensions
|
total length
|
4 m
|
|---|
classification
|
ETIM 5.0
|
patch cord for plug-in building installation
|
|---|---|
|
ECLASS 8.1
|
patch cord for plug-in building installation
|
|
ETIM 4.0
|
patch cord for plug-in building installation
|
|
ETIM 6.0
|
EC002587
|
|
ETIM 7.0
|
EC002587
|
|
ECLASS 11
|
27440604
|
|
ETIM 8.0
|
EC002587
|
|
ETIM 9.0
|
EC002587
|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Documentation
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Data sheet | - | 205.38kB | |
| Tender specifications (DOCX) | - | 11.79kB | DOCX |
| REACH info | - | 68.37kB |
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
| REACH-SVHC certificate | - | 196.96kB | |
| RoHS certificate | - | 197.19kB |
Marketing
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Catalogues | - | 15.38MB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Customer drawings | - | 174.52kB | |
| Customer drawings (TIFF) | - | 172.62kB | TIF |
| Customer drawings (DXF) | - | 2.67MB | DXF |

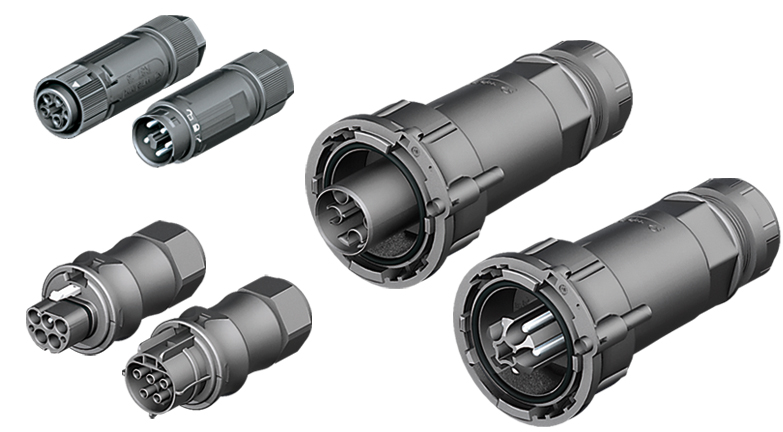

| Product group images | - | 148.33kB | JPG |
