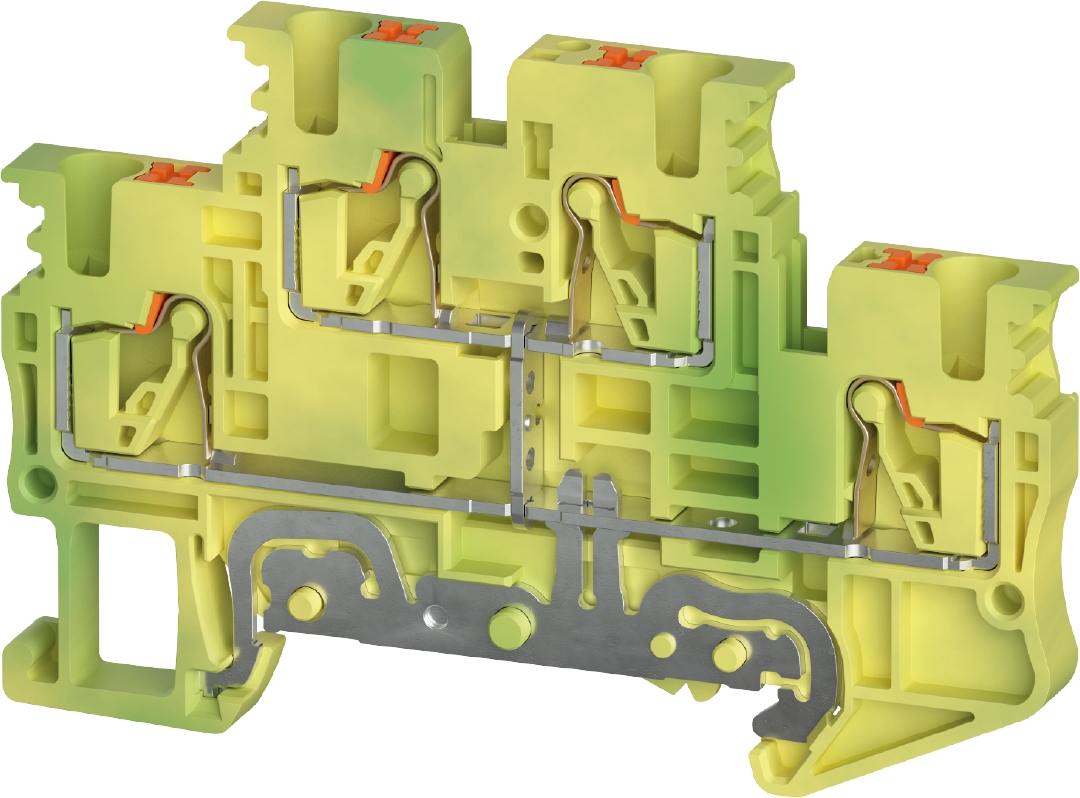

earth terminal WTPN 2.5 E PE
Article number 5D.203.9655.0
earth terminal WTPN 2.5 E PE rated voltage 500 V, push-In connection//true, number of levels 2, number of clamp positions per level 2, nominal cross section 2.5 mm², connectable conductor cross section fine stranded without cable end sleeve 0,14mm² - 2,5mm², mounting method DIN rail (top hat rail), color green/yellow, width/grid dimension 5.1 mm, inflammability class of insulation material acc. with ul94 V0, terminal blocks for electrical installations yes
commercial data
|
article number
|
5D.203.9655.0
|
|---|---|
|
article description
|
earth terminal WTPN 2.5 E PE
|
|
EAN
|
4049088706653
|
|
Minimum order quantitiy
|
50
|
|
country of origin
|
CN
|
|
customs tariff number
|
85369010
|
packaging dimensions
|
length packed
|
180 mm
|
|---|---|
|
width packed
|
126 mm
|
|
height packed
|
54 mm
|
|
gross weight packed
|
711 g
|
|
volume packed
|
1224.72 ccm
|
|
net weight single part
|
13.3 g
|
|
volume single part
|
24.494 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
50 piece(s)
|
certificates / approvals
general
|
nominal cross section
|
2.5 mm²
|
|---|---|
|
color
|
green/yellow
|
|
number of levels
|
2
|
|
number of clamp positions per level
|
2
|
|
width/grid dimension
|
5.1 mm
|
|
insulating housing
|
PA
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
mounting method
|
DIN rail (top hat rail)
|
|
terminal blocks for electrical installations
|
yes
|
|
connection type
|
push-In connection//true
|
|
number of clamp positions per level
|
2
|
|
mounting method
|
DIN rail (top hat rail)
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
terminal blocks for electrical installations
|
yes
|
|
halogen free
|
yes
|
technical data
|
rated voltage
|
500 V
|
|---|---|
|
rated impulse voltage
|
6 kV
|
|
pollution degree
|
3
|
|
closing plate required
|
yes
|
|
length
|
69 mm
|
|
type of insulation material
|
thermoplastic
|
|
width
|
5.1 mm
|
|
height
|
47.5 mm
|
|
operating temperature
|
-40 bis 55 °C
|
connection data
|
connection type
|
push-In connection//true
|
|---|---|
|
connection type 1
|
plug-in connection
|
|
minimum cross section solid
|
0.14 mm²
|
|
maximum cross section solid
|
4 mm²
|
|
minimum cross section fine stranded
|
0.14 mm²
|
|
maximum cross section fine stranded
|
2.5 mm²
|
|
minumum conductor cross section (flex., stranded) with cable end sleeve
|
0.25 mm²
|
|
maximum conductor cross section (flex., stranded) with cable end sleeve
|
2.5 mm²
|
|
wire strip length
|
10 mm
|
technical data UL/CSA
|
cross section UL
|
26-12 AWG
|
|---|---|
|
voltage UL
|
300 V
|
|
cross section CSA
|
26-12 AWG
|
|
voltage CSA
|
300 V
|
classification
|
ETIM 9.0
|
EC000901
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Accessories
| Article number | Article-type description | Price | Quantity |
|---|---|---|---|
| 0D.202.7381.0 | marking strips WML 7.4/60 |
|
|
| 0D.203.7156.0 | marking plate WMP 5,10-5,8 |
|
|
| 0D.203.8155.5 | spacer SPS 2.5 |
|
|
| 0D.203.2355.0 | end plate APWTPN 2.5 E |
|
|
| 0D.203.8055.5 | test plug PS 2.5 |
|
|
