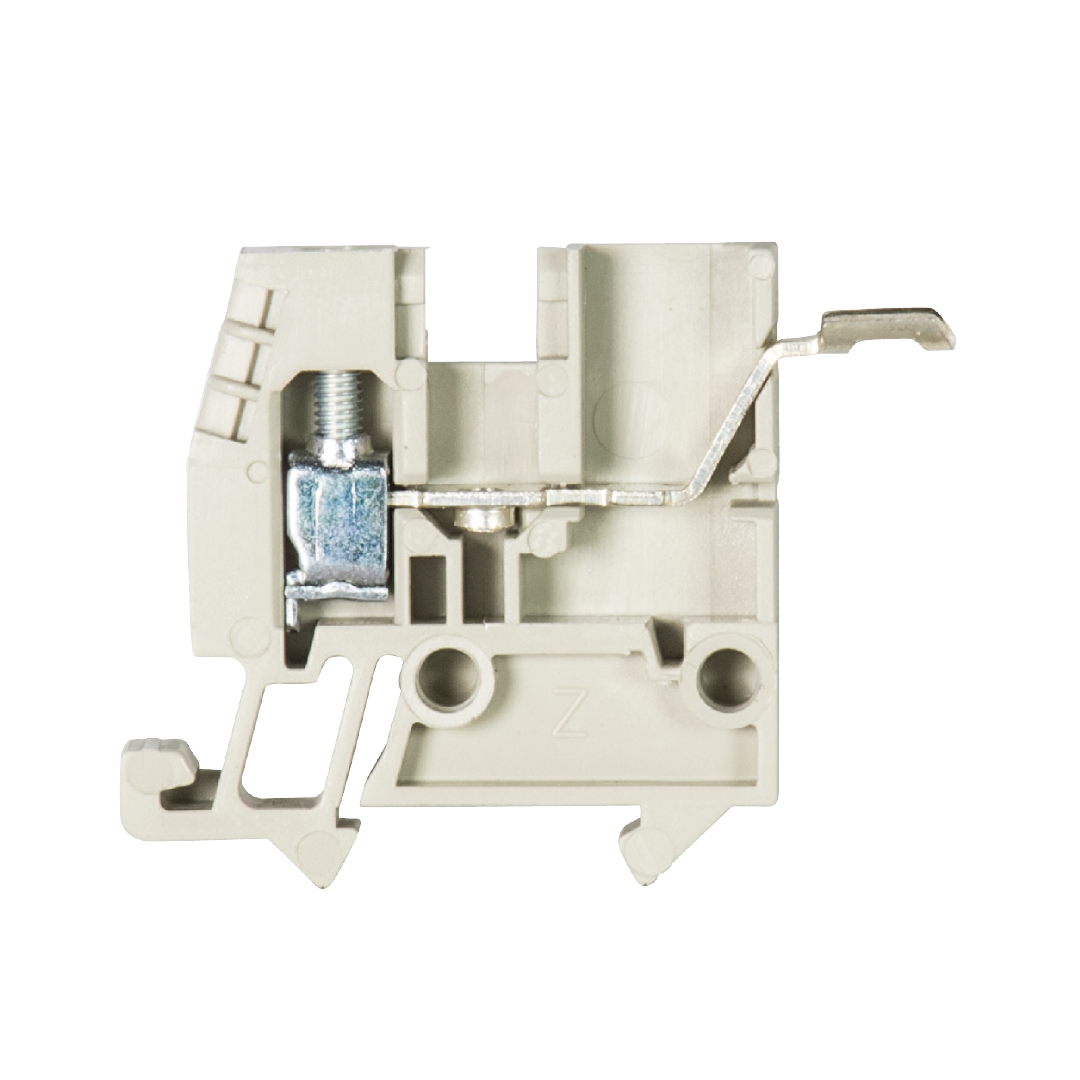

feed-through terminal WKM 2,5 F1 / 15/V0

NO LONGER AVAILABLE

Article number 55.503.1253.0

Feed-through terminal with 0 for mounting on TS 15 , nominal cross section: 2.5 mm², width: 5 mm, color: grey

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	55.503.1253.0
article description	feed-through terminal WKM 2,5 F1 / 15/V0
EAN	4015573210295
Minimum order quantitiy	100
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	182 mm
width packed	132 mm
height packed	38 mm
gross weight packed	367.9 g
volume packed	913 ccm
net weight single part	3.289 g
volume single part	9.13 ccm
packaging	cardboard
packaging quantity	100 piece(s)

general

nominal cross section	2.5 mm²
color	grey
number of levels	1
number of clamp positions per level	2
width/grid dimension	5 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	no
mounting method	DIN rail (top hat rail) 15 mm
terminal blocks for electrical installations	yes
number of clamp positions per level	2
mounting method	DIN rail (top hat rail) 15 mm
inflammability class of insulation material acc. with UL94	V0
terminal blocks for electrical installations	yes

technical data

rated current	24 A
rated voltage	500 V
rated impulse voltage	6 kV
pollution degree	3
closing plate required	yes
length	40.5 mm
type of insulation material	thermoplastic
operating temperature	-40 - 55 °C

connection data

connection type 2	screw connection
connection type 1	soldering flag connection
minimum cross section solid	0.5 mm²
maximum cross section solid	4 mm²
minimum cross section fine stranded	0.5 mm²
maximum cross section fine stranded	2.5 mm²
wire strip length	9 mm
torque conductor mounting	0.4 Nm

additional data

remark to rated voltage	400V when using cross-connection links

classification

ETIM 5.0	feed-through terminal block
ECLASS 8.1	feed-through terminal block
ETIM 4.0	feed-through terminal block
ETIM 3.0	feed-through terminal block
ETIM 6.0	EC000897
ETIM 7.0	EC000897
ECLASS 11	27141120
ETIM 8.0	EC000897
ETIM 9.0	EC000897

product compliance

ROHS conformity status	compliant/exempted
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
Z7.215.4627.0	jumper bar VB WKM 2,5 / 15 - 6
Z7.215.4227.0	jumper bar VB WKM 2,5 / 15 - 2
07.311.0653.0	end plate APM 2,5 F. / 15
Z7.215.4427.0	jumper bar VB WKM 2,5 / 15 - 4
Z7.215.4327.0	jumper bar VB WKM 2,5 / 15 - 3
Z7.215.4527.0	jumper bar VB WKM 2,5 / 15 - 5
98.090.0015.0	mounting rail TS 15 PERF - l:2000mm

Documentation

Filename	Description	Filesize	File type
Data sheet	-	82.92kB	PDF
Tender specifications	-	1.16kB	HTM

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	182.67kB	PDF
UKCA declaration of conformity	-	38.48kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.97kB	PDF
RoHS certificate	-	197.87kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	41.40kB	PDF
Customer drawings (TIFF)	-	39.47kB	TIF
Customer drawings (DXF)	-	469.11kB	DXF

Software

Filename	Description	Filesize	File type
EPLAN P8 data	-	1.80MB	ZIP
