fuse terminal WK 4/THSI6,3 GL 500U/V0

NO LONGER AVAILABLE

Article number 57.904.6855.0

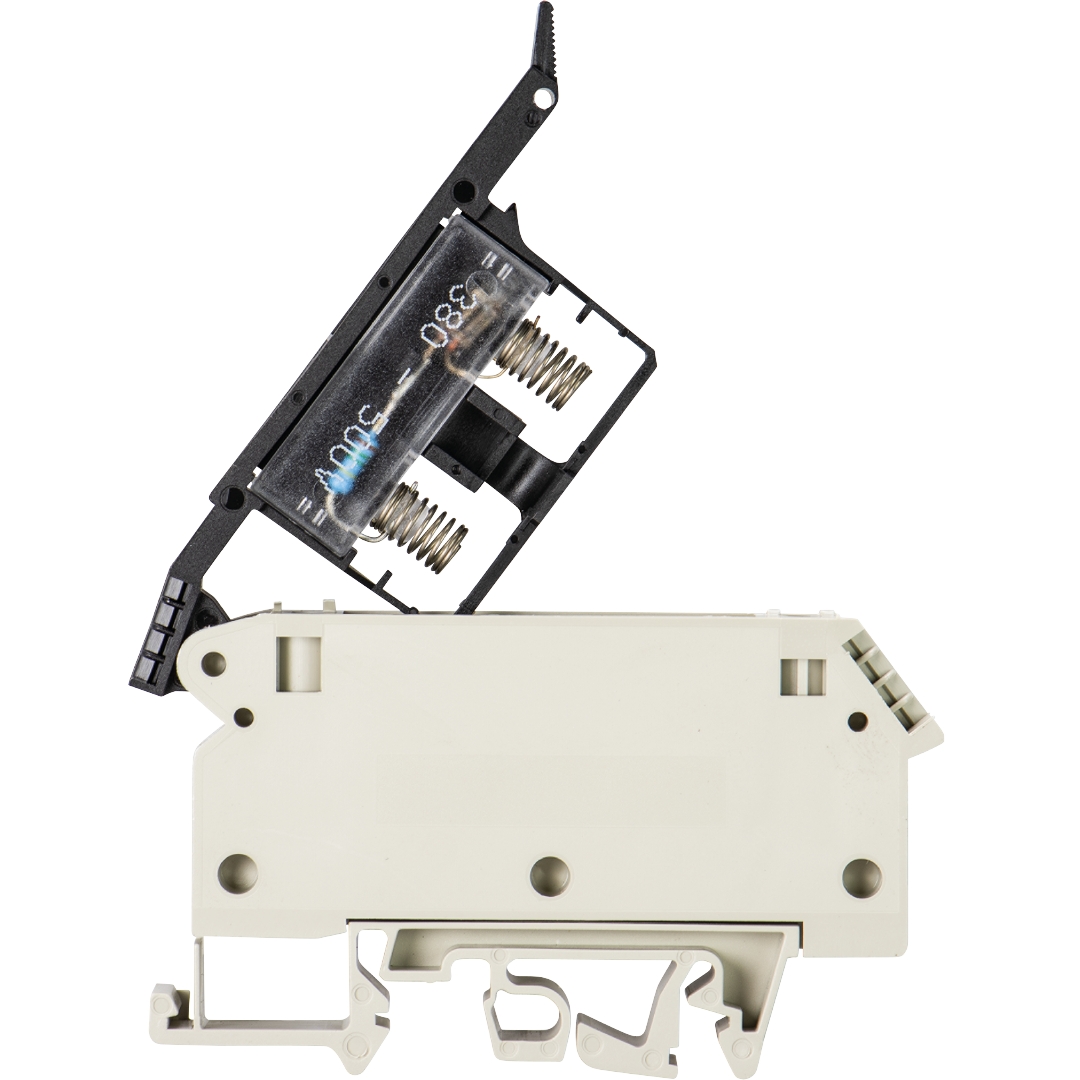

Fuse terminal block with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm², width 6 mm, color gray

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Downloads

Retailer

commercial data

article number	57.904.6855.0
article description	fuse terminal WK 4/THSI6,3 GL 500U/V0
EAN	4015573528390
Minimum order quantitiy	200
country of origin	DE
customs tariff number	85369095

packaging dimensions

length packed	271 mm
width packed	154 mm
height packed	58 mm
gross weight packed	1172 g
volume packed	2421 ccm
net weight single part	21.8 g
volume single part	48.42 ccm
packaging	cardboard
packaging quantity	50 piece(s)

certificates / approvals

general

nominal cross section	4 mm²
color	grey
number of levels	1
width/grid dimension	10 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
mounting method	DIN rail (top hat rail)/G-rail
terminal blocks for electrical installations	no
fuse insert	G-fuse 6.3x32 mm
mounting method	DIN rail (top hat rail)/G-rail
inflammability class of insulation material acc. with UL94	V0
terminal blocks for electrical installations	no

technical data

rated current	10 A
rated voltage	500 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	no
length	77.2 mm
type of insulation material	thermoplastic
operating temperature	-40 - 55 °C

connection data

connection type 2	screw connection
connection type 1	screw connection
minimum cross section solid	0.5 mm²
maximum cross section solid	6 mm²
minimum cross section fine stranded	0.5 mm²
maximum cross section fine stranded	4 mm²
wire strip length	8 mm
torque conductor mounting	0.5 Nm

technical data UL/CSA

cross section UL	22-10 AWG
voltage UL	500 V
current factory wiring	15 A
current field wiring	15 A
cross section CSA	22-10 AWG
voltage CSA	500 V
current CSA	10 A

additional data

remark to rated voltage	note max power loss
remark to rated current	note max power loss
defect indicator	glow lamp
voltage type for defect indication	AC/DC
minimum operating voltage of defective display	380 V
maximum operating voltage of defective display	500 V

classification

ETIM 5.0	fuse terminal block
ECLASS 8.1	fuse terminal block
ETIM 4.0	fuse terminal block
ETIM 3.0	fuse terminal block
ETIM 6.0	EC000899
ETIM 7.0	EC000899
ECLASS 11	27141116
ETIM 8.0	EC000899
ETIM 9.0	EC000899

product compliance

ROHS conformity status	compliant/exempted
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	Duty-To-Declare
REACH-SVHC substances	Plumbum
REACH-SVHC CAS numbers	7439-92-1

Documentation

Filename	Description	Filesize	File type
Data sheet	-	110.17kB	PDF
Tender specifications	-	1.48kB	HTM

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	182.67kB	PDF
UKCA declaration of conformity	-	38.48kB	PDF
Approval SEV	-	1.71MB	PDF
Approval CSA	-	106.47kB	PDF
Approval UR	-	180.24kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	197.85kB	PDF
RoHS certificate	-	197.87kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	64.88kB	PDF
Customer drawings (TIFF)	-	62.76kB	TIF
Customer drawings (DXF)	-	313.46kB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	193.19kB	PDF
CAD STEP data	-	678.26kB	STP
CAD IGES data	-	1.42MB	IGS
CAD JT data	-	251.35kB	JT

Software

Filename	Description	Filesize	File type
EPLAN P8 data	-	1.80MB	ZIP
