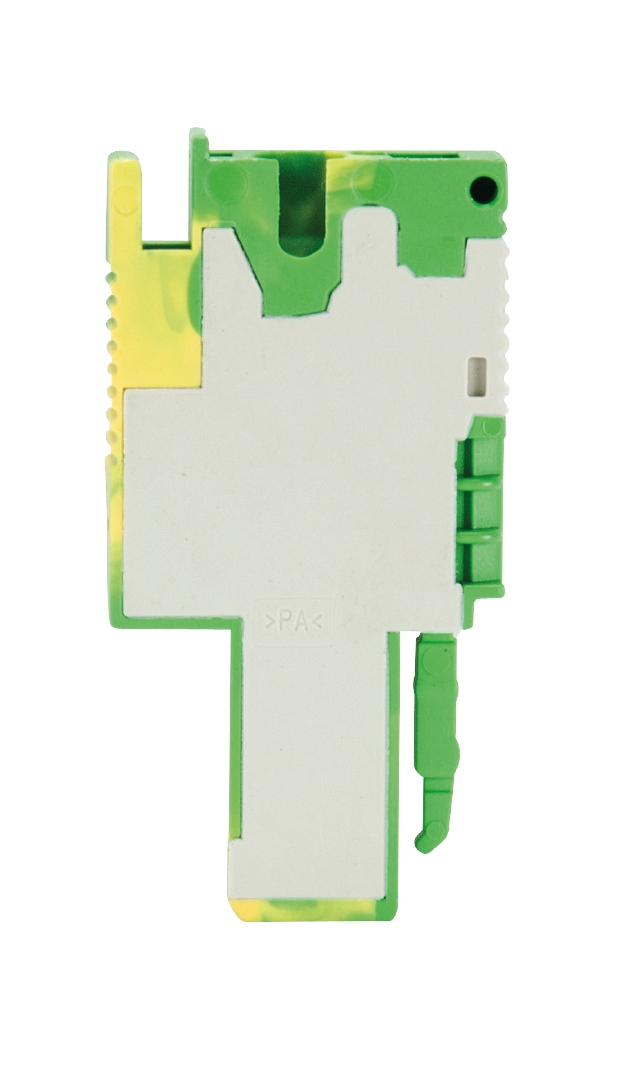

socket plug WBF 2,5 1/R/SL
Article number Z1.110.9055.7
Socket plug with spring clamp connection - end-modul, color green/yellow
commercial data
|
article number
|
Z1.110.9055.7
|
|---|---|
|
article description
|
socket plug WBF 2,5 1/R/SL
|
|
EAN
|
4049088048883
|
|
Minimum order quantitiy
|
500
|
|
country of origin
|
DE
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
104 mm
|
|---|---|
|
width packed
|
89 mm
|
|
height packed
|
67 mm
|
|
gross weight packed
|
227.2 g
|
|
volume packed
|
620 ccm
|
|
net weight single part
|
4.04 g
|
|
volume single part
|
12.4 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
50 piece(s)
|
certificates / approvals
general
|
nominal cross section
|
2.5 mm²
|
|---|---|
|
color
|
green/yellow
|
|
number of levels
|
1
|
|
number of clamp positions per level
|
2
|
|
width/grid dimension
|
5 mm
|
|
insulating housing
|
PA666
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
explosion-tested version "Ex e"
|
no
|
|
mounting method
|
direct mounting
|
|
terminal blocks for electrical installations
|
no
|
|
number of clamp positions per level
|
2
|
|
mounting method
|
direct mounting
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
terminal blocks for electrical installations
|
no
|
technical data
|
rated current
|
32 A
|
|---|---|
|
rated voltage
|
500 V
|
|
rated impulse voltage
|
8 kV
|
|
pollution degree
|
3
|
|
closing plate required
|
no
|
|
length
|
20.8 mm
|
|
type of insulation material
|
thermoplastic
|
|
operating temperature
|
-40 bis 55 °C
|
connection data
|
connection type 2
|
plug-in connection
|
|---|---|
|
connection type 1
|
spring clamp connection
|
|
minimum cross section solid
|
0.13 mm²
|
|
maximum cross section solid
|
4 mm²
|
|
minimum cross section fine stranded
|
0.13 mm²
|
|
maximum cross section fine stranded
|
4 mm²
|
|
wire strip length
|
11 mm
|
technical data UL/CSA
|
cross section UL
|
24-12 AWG
|
|---|---|
|
voltage UL
|
500 V
|
|
current factory wiring
|
20 A
|
|
current field wiring
|
20 A
|
|
cross section CSA
|
24-12 AWG
|
|
voltage CSA
|
500 V
|
|
current CSA
|
20 A
|
classification
|
ETIM 5.0
|
feed-through terminal block
|
|---|---|
|
ECLASS 8.1
|
feed-through terminal block
|
|
ETIM 4.0
|
feed-through terminal block
|
|
ETIM 3.0
|
feed-through terminal block
|
|
ETIM 6.0
|
EC000897
|
|
ETIM 7.0
|
EC000897
|
|
ECLASS 11
|
27141120
|
|
ETIM 8.0
|
EC000897
|
|
ETIM 9.0
|
EC000897
|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
