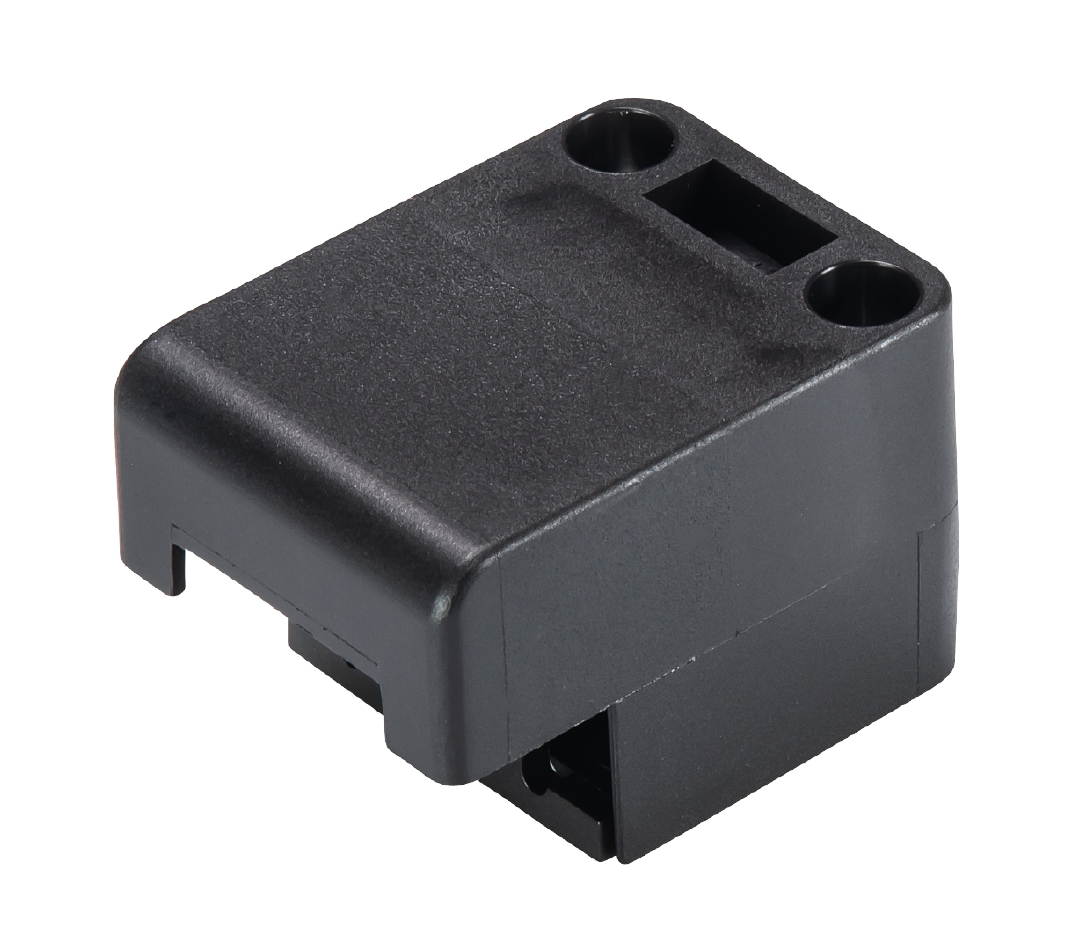

strain relief GST18I3 HOCH SW
Article number 99.005.8210.0
gesis® strain relief for device connectors GST18i3 with screw connection; no integrated locking; use with separate locking or snap-in parts; colour: black
commercial data
|
article number
|
99.005.8210.0
|
|---|---|
|
article description
|
strain relief GST18I3 HOCH SW
|
|
EAN
|
4015573481497
|
|
Minimum order quantitiy
|
1
|
|
country of origin
|
DE
|
|
customs tariff number
|
85389099
|
packaging dimensions
|
length packed
|
304 mm
|
|---|---|
|
width packed
|
256 mm
|
|
height packed
|
202 mm
|
|
gross weight packed
|
2115 g
|
|
volume packed
|
15720 ccm
|
|
net weight single part
|
9.83 g
|
|
volume single part
|
78.6 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
200 piece(s)
|
technical data
|
length
|
37.7 mm
|
|---|---|
|
width
|
28 mm
|
|
height
|
25 mm
|
|
color
|
black
|
|
description 1
|
strain relief
|
|
description 2
|
for GST18i3
|
classification
|
ETIM 5.0
|
accessories for plug-in building installation
|
|---|---|
|
ETIM 6.0
|
EC002863
|
|
ETIM 7.0
|
EC002863
|
|
ECLASS 11
|
27440690
|
|
ETIM 8.0
|
EC002863
|
|
ETIM 9.0
|
EC002863
|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Documentation
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Data sheet | - | 95.19kB | |
| Tender specifications (DOCX) | - | 11.73kB | DOCX |
| REACH info | - | 68.37kB |
Product compliance
| Filename | Description | Filesize | File type |
|---|---|---|---|
| REACH-SVHC certificate | - | 196.96kB | |
| RoHS certificate | - | 197.17kB |
Drawings
| Filename | Description | Filesize | File type |
|---|---|---|---|
| Customer drawings | - | 52.71kB | |
| Customer drawings (TIFF) | - | 50.88kB | TIF |
| Customer drawings (DXF) | - | 1.87MB | DXF |
| Product group images | - | 23.43kB | JPG |
CAD model
| Filename | Description | Filesize | File type |
|---|---|---|---|
| 3D product images | - | 393.96kB | |
| CAD STEP data | - | 79.87kB | STP |
| CAD IGES data | - | 148.71kB | IGS |
| CAD JT data | - | 36.71kB | JT |
