switched-mode power supply WIPOS PS3 24-5

DISCONTINUATION - LAST ORDER

Article number 81.000.6560.0

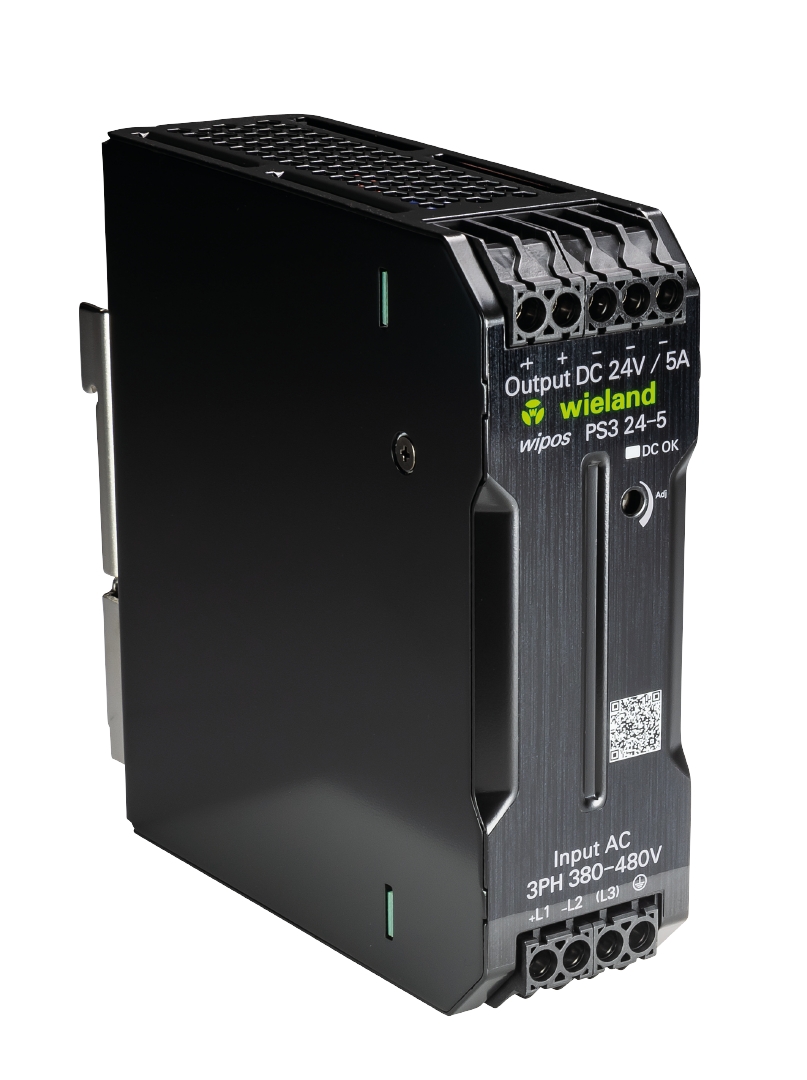

wipos PS3 switched-mode power supply, nominal voltage: 24 V DC / 5 A (setting range 22,5-29,5 V DC), sustained short-circuit protection, input voltage range: 320-576 V AC / 450-810 V DC, three-phase, W x H x D: 40 × 125 × 122,2 mm

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Downloads

Retailer

commercial data

article number	81.000.6560.0
article description	switched-mode power supply WIPOS PS3 24-5
EAN	4049088269684
Minimum order quantitiy	1
country of origin	CN
customs tariff number	85044083

packaging dimensions

length packed	180 mm
width packed	141 mm
height packed	100 mm
gross weight packed	735 g
volume packed	2538 ccm
net weight single part	635 g
volume single part	2236.416 ccm
packaging	cardboard
packaging quantity	1 piece(s)

certificates / approvals

general

connection type	push-In connection//true
suitable for modular version	no
mounting type, other	no
mounting type, wall mounting	no
rail mounting possible	yes
housing material	metal
operating temperature min.	-25 °C
operating temperature max.	70 °C
storage temperature / transport min.	85 °C
storage temperature / transport max.	-40 °C
degree of protection (IP)	IP20
protection class	I
pollution degree	2
parallel-service possible	no
relative humidity min.	0 %
relative humidity max.	95 %
number of phases	3 phase power supply

technical data

type of voltage (input voltage)	AC/DC
power output	120 W
type of output voltage	DC
output voltage stabilized	yes
primary voltage range	400 V
secondary voltage range max.	22.5 V
min. output voltage	22.5 V
max. output voltage	29 V
min. input voltage	380 V
output voltage	24 V
output current	5 A
max. input voltage	480 V
min. output voltage	22.5 V
max. output voltage	28.5 V
input voltage AC min.	320 V
input voltage AC max.	575 V
input voltage DC min.	450 V
input voltage DC max.	675 V
input current, max.	0.38 A
display	LED
connector cross section (input	0.35-6mm²/0.35-4mm² (AWG22-10/AWG22-12)
connector cross section (output)	0.75-6mm²/0.75-4mm² (AWG20-10/AWG20-12)
rated frequency min.	47 Hz
rated frequency max.	63 Hz
power-factor correction (PFC)	ja
function display	DC OK U(o) ﹥ 19.4V DC
overload protection min.	142 %
power-Boost	120 %
power-Boost time	10 s
efficiency	89 %
grid control	0.5 %
load fluctuation	0.6 %
temperature coefficient	±0.05%/K
ripple and noise	0.16 V
isolating voltage Input AC	3000 V
isolating voltage Output DC	4242 V
cohesive resistance (In-/Output)	100 MOhm
relative humidity min.	0 %
cooling	free convection
MTBF	390,000h
wire strip length	10 mm
permissible torque min.	0.5 Nm
permissible torque max.	0.6 Nm
standards	SELV: EN50178 PELV:50178/EN60204-1
number of +	2
number of -	3
further terminals	+L1, -L2, (L3) (CA: Fasi L1/L2/L3, DC: Positivo +L1, Negativo -L2), PE
relative humidity max.	95 %
control "Adj"	trimming potentiometer for fine-tuning of U(out)
short-circuit protective device	current limiting (hiccup mode)
max. starting current	25 A

output

type of output voltage	DC
power output	120 W
output voltage stabilized	yes
output voltage	24 V
min. output voltage	22.5 V
max. output voltage	28.5 V
min. output voltage	22.5 V
max. output voltage	29 V
output current	5 A
Over voltage proctection (OVP)	32.9 V

input

type of voltage (input voltage)	AC/DC
input voltage DC min.	450 V
input voltage DC max.	675 V
min. input voltage	380 V
max. input voltage	480 V
input voltage AC min.	320 V
input voltage AC max.	575 V
rated frequency min.	47 Hz
rated frequency max.	63 Hz
input current, max.	0.38 A
max. starting current	25 A
primary voltage range	400 V

dimensions

depth	122.2 mm
width	40 mm
height	125 mm
mounting distance horizontal	20 mm
mounting distance vertical	75 mm
weight	700 g

classification

ETIM 5.0	DC-power supply
ECLASS 8.1	DC-power supply
ETIM 6.0	EC002540
ETIM 7.0	EC002540
ECLASS 11	27040701
ETIM 8.0	EC002540
ETIM 9.0	EC002540

product compliance

ROHS conformity status	compliant
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	Duty-To-Declare
REACH-SVHC substances	Plumbum
REACH-SVHC CAS numbers	7439-92-1

Documentation

Filename	Description	Filesize	File type
Manual	-	4.60MB	PDF
