feed-through terminal WTP 2,5/4

NO LONGER AVAILABLE

Article number 56.203.0055.0

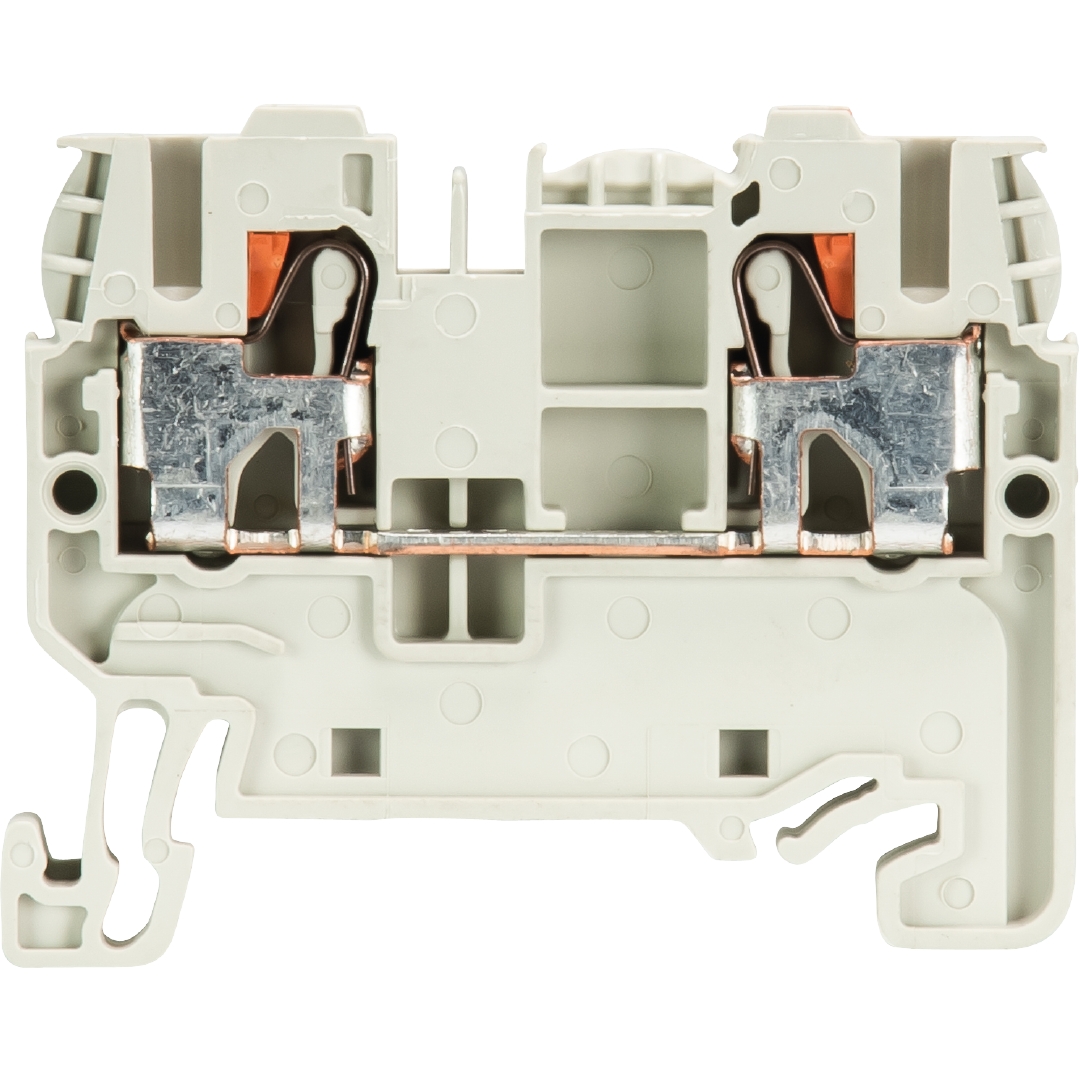

Feed-through terminal with push in connection for mounting on TS 35, nominal cross section: 2,5 mm², width: 5 mm, color: grey

To the successor product

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	56.203.0055.0
article description	feed-through terminal WTP 2,5/4
EAN	4049088181153
Minimum order quantitiy	100
country of origin	IN
customs tariff number	85369010

packaging dimensions

length packed	250 mm
width packed	105 mm
height packed	40 mm
gross weight packed	750 g
volume packed	1050 ccm
net weight single part	6.8 g
volume single part	10.5 ccm
packaging	cardboard
packaging quantity	100 piece(s)

certificates / approvals

general

nominal cross section	4 mm²
color	grey
number of clamp positions per level	2
width/grid dimension	5 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
mounting method	DIN rail (top hat rail)
connection type	plug-in connection
number of clamp positions per level	2
mounting method	DIN rail (top hat rail)
inflammability class of insulation material acc. with UL94	V0

technical data

rated current	32 A
rated voltage	800 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	yes
length	47 mm
type of insulation material	thermoplastic
operating temperature	-40 bis 55 °C

connection data

connection type	plug-in connection
connection type 1	plug-in connection
minimum cross section solid	0.2 mm²
maximum cross section solid	4 mm²
minimum cross section fine stranded	0.2 mm²
maximum cross section fine stranded	4 mm²
minimum cross section stranded	0.2 mm²
maximum cross section stranded	4 mm²
minumum conductor cross section (flex., stranded) with cable end sleeve	0.2 mm²
maximum conductor cross section (flex., stranded) with cable end sleeve	4 mm²
wire strip length	11 mm

technical data UL/CSA

cross section UL	24-12 AWG
voltage UL	600 V
current factory wiring	30 A
current field wiring	20 A
cross section CSA	22-12 AWG
voltage CSA	600 V
current CSA	20 A

additional data

remark to rated voltage	in use with IVE WKF 2,5-... rated voltage 630 V

classification

ETIM 5.0	feed-through terminal block
ECLASS 8.1	feed-through terminal block
ETIM 4.0	feed-through terminal block
ETIM 6.0	EC000897
ETIM 7.0	EC000897
ECLASS 11	27141120
ETIM 8.0	EC000897
ETIM 9.0	EC000897

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
04.242.5053.0	marking tag strips 9705 A / 5 / 10
Z7.280.6327.0	jumper bar IVBWKF 2,5- 3
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm
04.344.2355.8	warning cover AD WTP 2,5
Z7.280.6227.0	jumper bar IVBWKF 2,5- 2
Z7.280.7027.0	jumper bar IVBWKF 2,5- 10
07.312.6755.0	end plate APFN 2,5 /35
Z7.280.6727.0	jumper bar IVBWKF 2,5- 7
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm
98.380.0000.0	mounting rail TS 35x15-1,5 UNPERF CU - l:2000mm
0D.S04.1255.9	partition TW 008 WTN
Z7.280.6427.0	jumper bar IVBWKF 2,5- 4
Z7.280.8027.0	jumper bar IVBWKF 2,5- 20
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm
0D.S04.2055.0	end plate APWTN 2.5/4
05.564.3755.0	wire entry guides LEL 2,5/1 white
Z7.280.6627.0	jumper bar IVBWKF 2,5- 6
Z7.280.6827.0	jumper bar IVBWKF 2,5- 8
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm
0D.S04.1155.9	partition TW 005 WTN
Z7.280.7227.0	jumper bar IVBWKF 2,5- 12
Z7.280.7127.0	jumper bar IVBWKF 2,5- 11
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm
Z7.280.6927.0	jumper bar IVBWKF 2,5- 9
Z7.280.6527.0	jumper bar IVBWKF 2,5- 5
07.312.6855.0	partition TWFN 2,5 /35

Documentation

Filename	Description	Filesize	File type
Data sheet	-	149.99kB	PDF

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	177.63kB	PDF
UKCA declaration of conformity	-	39.32kB	PDF
Approval CSA	-	407.97kB	PDF
Approval DNV	-	214.57kB	PDF
Approval VDE	-	401.82kB	PDF
Approval UR	-	139.05kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF
RoHS certificate	-	197.17kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	86.61kB	PDF
Customer drawings (TIFF)	-	84.47kB	TIF
Customer drawings (DXF)	-	4.71MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	192.51kB	PDF
CAD STEP data	-	847.54kB	STP
CAD IGES data	-	2.02MB	IGS
CAD JT data	-	406.07kB	JT
