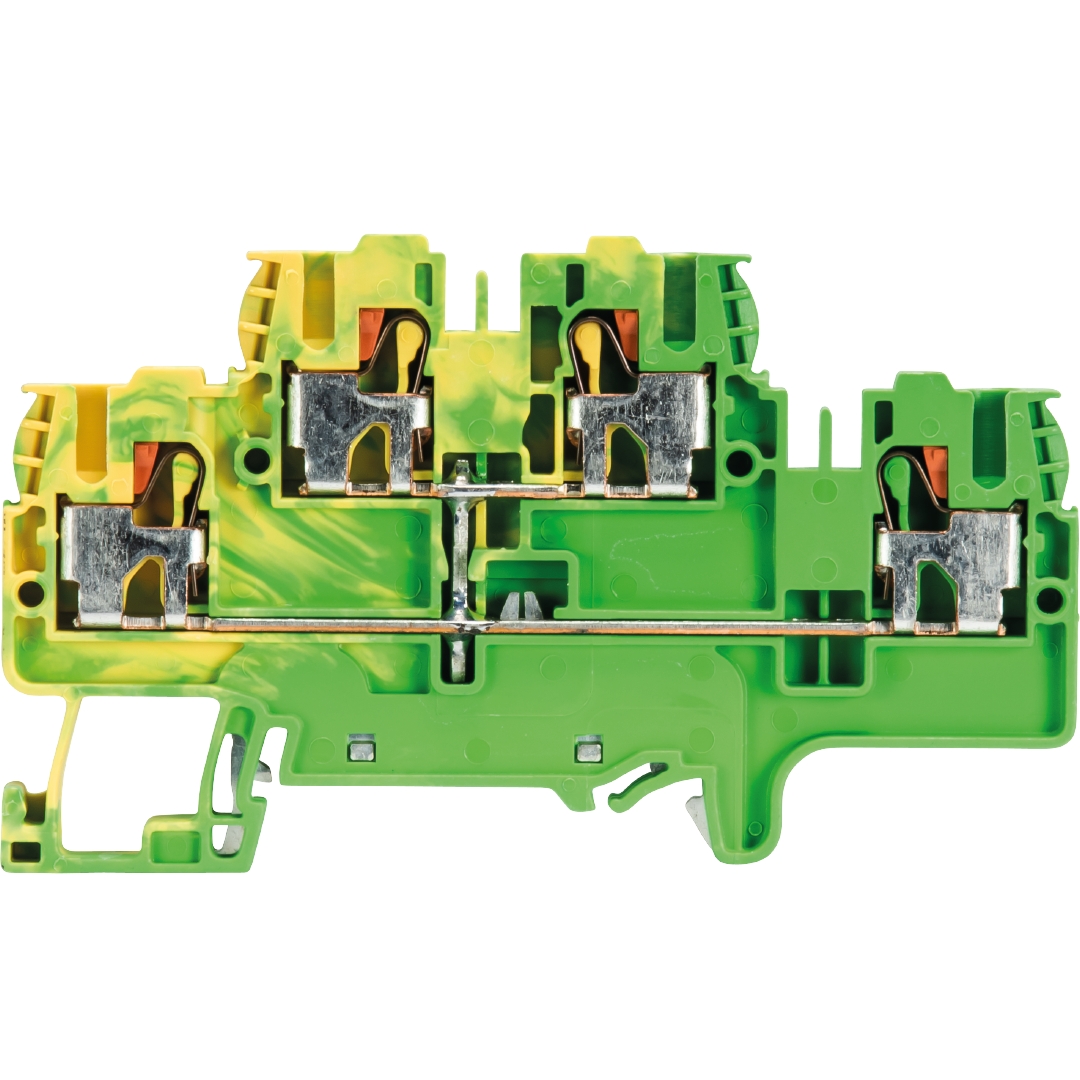

earth terminal WTP 2,5/4 E PE

NO LONGER AVAILABLE

Article number 56.203.8955.0

Ground terminal with push in connection for mounting on TS 35, nominal cross section: 2,5 mm², width: 5 mm, color: Green-yellow

To the successor product

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	56.203.8955.0
article description	earth terminal WTP 2,5/4 E PE
EAN	4049088186424
Minimum order quantitiy	100
country of origin	IN
customs tariff number	85369010

packaging dimensions

length packed	340 mm
width packed	130 mm
height packed	50 mm
gross weight packed	1865 g
volume packed	2210 ccm
net weight single part	17.9 g
volume single part	22.1 ccm
packaging	cardboard
packaging quantity	100 piece(s)

certificates / approvals

general

nominal cross section	4 mm²
color	green/yellow
number of levels	2
number of clamp positions per level	2
width/grid dimension	5 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
mounting method	DIN rail (top hat rail)
connection type	plug-in connection
number of clamp positions per level	2
mounting method	DIN rail (top hat rail)
inflammability class of insulation material acc. with UL94	V0

technical data

rated voltage	500 V
rated impulse voltage	6 kV
pollution degree	3
closing plate required	yes
length	82 mm
type of insulation material	thermoplastic
width	5 mm
operating temperature	-40 bis 55 °C

connection data

connection type	plug-in connection
connection type 1	plug-in connection
minimum cross section solid	0.2 mm²
maximum cross section solid	4 mm²
minimum cross section fine stranded	0.2 mm²
maximum cross section fine stranded	4 mm²
minimum cross section stranded	0.2 mm²
maximum cross section stranded	4 mm²
minumum conductor cross section (flex., stranded) with cable end sleeve	0.2 mm²
maximum conductor cross section (flex., stranded) with cable end sleeve	4 mm²
wire strip length	11 mm

technical data UL/CSA

cross section UL	24-12 AWG
voltage UL	600 V
cross section CSA	24-12 AWG
voltage CSA	600 V

classification

ETIM 5.0	feed-through terminal block
ECLASS 8.1	feed-through terminal block
ETIM 4.0	feed-through terminal block
ETIM 3.0	feed-through terminal block
ETIM 6.0	EC000897
ETIM 7.0	EC000897
ECLASS 11	27141120
ETIM 8.0	EC000897
ETIM 9.0	EC000897

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
04.242.5053.0	marking tag strips 9705 A / 5 / 10
Z7.280.6327.0	jumper bar IVBWKF 2,5- 3
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm
04.344.2355.8	warning cover AD WTP 2,5
Z7.280.6227.0	jumper bar IVBWKF 2,5- 2
Z7.280.7027.0	jumper bar IVBWKF 2,5- 10
Z7.280.6727.0	jumper bar IVBWKF 2,5- 7
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm
07.312.7455.0	partition TWFN 2,5 E/35
98.380.0000.0	mounting rail TS 35x15-1,5 UNPERF CU - l:2000mm
Z7.280.6427.0	jumper bar IVBWKF 2,5- 4
Z7.280.8027.0	jumper bar IVBWKF 2,5- 20
07.312.7355.0	end plate APFN 2,5 E/35
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm
05.564.3755.0	wire entry guides LEL 2,5/1 white
Z7.280.6627.0	jumper bar IVBWKF 2,5- 6
Z7.280.6827.0	jumper bar IVBWKF 2,5- 8
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm
Z7.280.7227.0	jumper bar IVBWKF 2,5- 12
Z7.280.7127.0	jumper bar IVBWKF 2,5- 11
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm
Z7.280.6927.0	jumper bar IVBWKF 2,5- 9
Z7.280.6527.0	jumper bar IVBWKF 2,5- 5
