feed-through terminal WK2,5U/D/8113S/V.../V0

NO LONGER AVAILABLE

Article number 57.503.2155.0

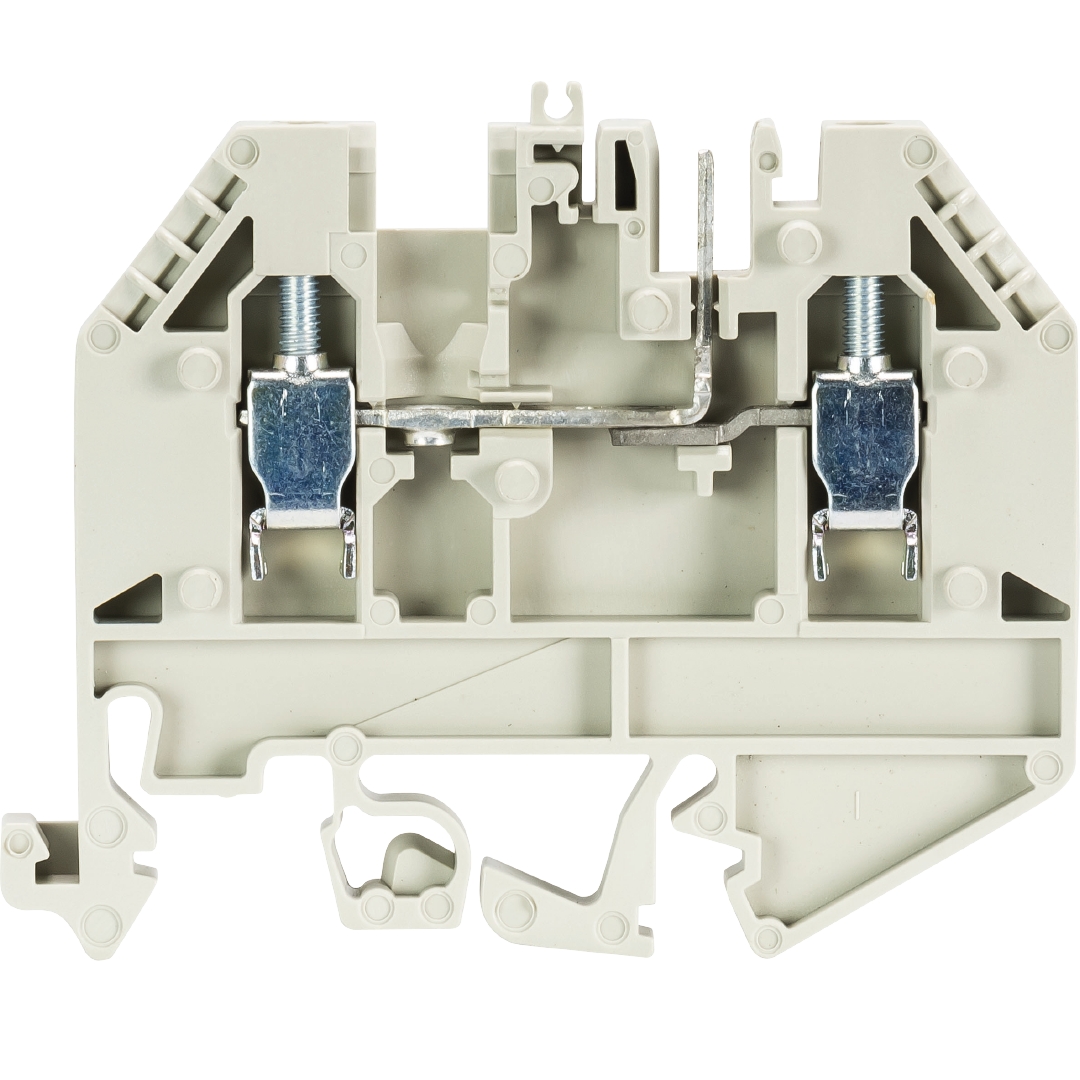

Plugable terminal block with screw connection for mounting on TS 35 and TS 32, nominal cross section 2.5 mm², width 5 mm, color gray

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	57.503.2155.0
article description	feed-through terminal WK2,5U/D/8113S/V.../V0
EAN	4015573604810
Minimum order quantitiy	500
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	169 mm
width packed	123 mm
height packed	53 mm
gross weight packed	480 g
volume packed	1102 ccm
net weight single part	8.59 g
volume single part	22.04 ccm
packaging	cardboard
packaging quantity	50 piece(s)

certificates / approvals

general

nominal cross section	2.5 mm²
color	grey
number of levels	1
number of clamp positions per level	3
width/grid dimension	5 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	no
mounting method	DIN rail (top hat rail)/G-rail
terminal blocks for electrical installations	yes
number of clamp positions per level	3
mounting method	DIN rail (top hat rail)/G-rail
inflammability class of insulation material acc. with UL94	V0
terminal blocks for electrical installations	yes

technical data

rated current	12 A
rated voltage	250 V
rated impulse voltage	4 kV
pollution degree	3
closing plate required	yes
length	60.8 mm
type of insulation material	thermoplastic
operating temperature	-40 - 55 °C

connection data

connection type 2	screw connection
connection type 1	screw connection
minimum cross section solid	0.5 mm²
maximum cross section solid	4 mm²
minimum cross section fine stranded	0.5 mm²
maximum cross section fine stranded	2.5 mm²
wire strip length	9 mm
torque conductor mounting	0.4 Nm

technical data UL/CSA

cross section UL	22-12 AWG
voltage UL	300 V
current factory wiring	15 A
current field wiring	15 A
cross section CSA	24-12 AWG
voltage CSA	300 V
current CSA	15 A

classification

ETIM 5.0	feed-through terminal block
ECLASS 8.1	feed-through terminal block
ETIM 4.0	feed-through terminal block
ETIM 3.0	feed-through terminal block
ETIM 6.0	EC000897
ETIM 7.0	EC000897
ECLASS 11	27141120
ETIM 8.0	EC000897
ETIM 9.0	EC000897

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
Z7.280.2427.0	insulated jumper bar IVBWK 2,5 - 4
Z7.280.2627.0	insulated jumper bar IVBWK 2,5 - 6
Z7.280.2527.0	insulated jumper bar IVBWK 2,5 - 5
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm
Z7.280.3027.0	insulated jumper bar IVBWK 2,5 -10
Z7.280.2327.0	insulated jumper bar IVBWK 2,5 - 3
Z7.280.2227.0	insulated jumper bar IVBWK 2,5 - 2
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm
Z7.280.2927.0	insulated jumper bar IVBWK 2,5 - 9
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm
98.380.0000.0	mounting rail TS 35x15-1,5 UNPERF CU - l:2000mm
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm
Z7.280.3227.0	insulated jumper bar IVBWK 2,5 -12
Z7.280.3127.0	insulated jumper bar IVBWK 2,5 -11
Z7.280.2827.0	insulated jumper bar IVBWK 2,5 - 8
Z7.280.2727.0	insulated jumper bar IVBWK 2,5 - 7
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm
07.311.9055.0	end plate AP 2,5 U/D/8113 S/V/V0
