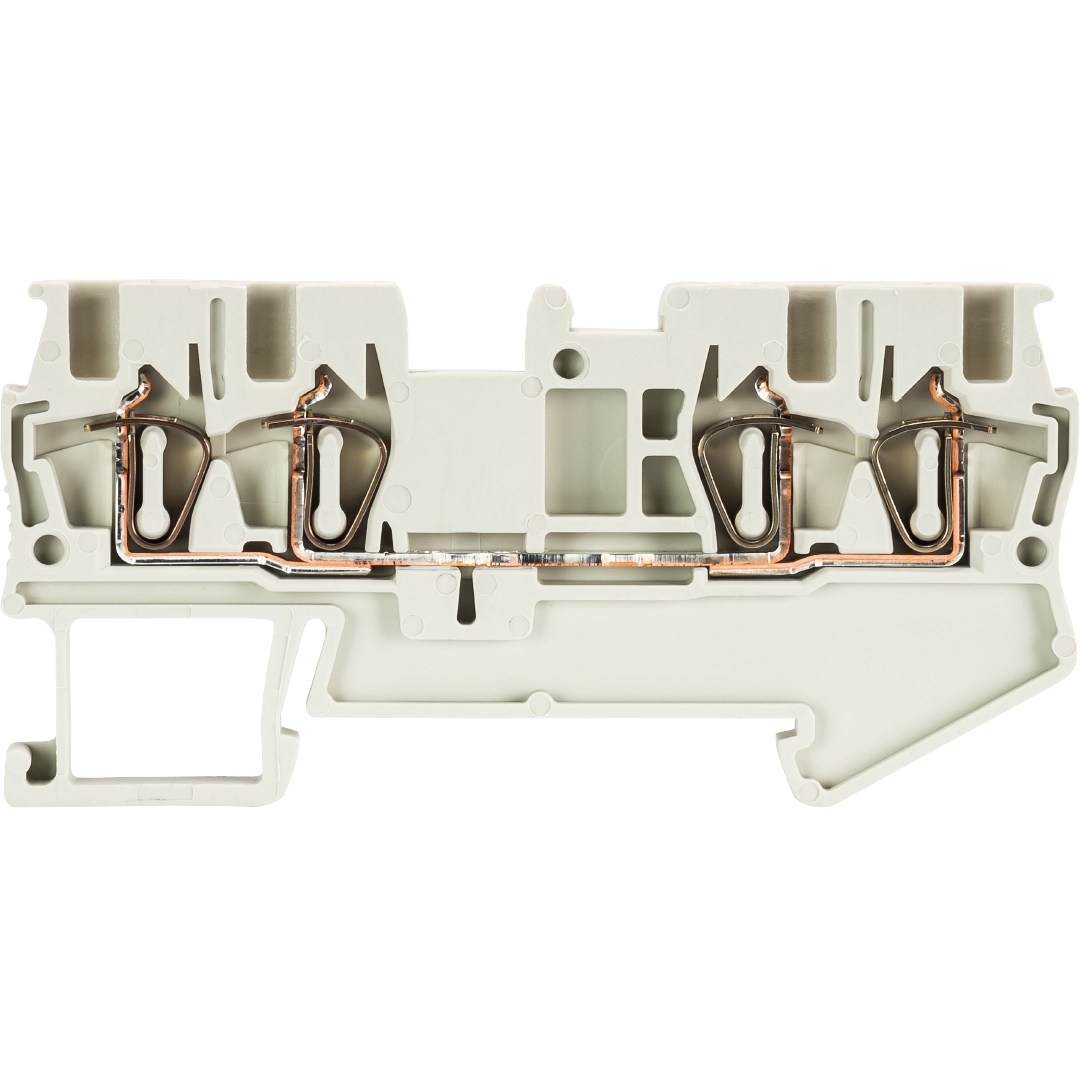

feed-through terminal WKF 1,5 D2/2/35

NO LONGER AVAILABLE

Article number 56.702.5153.0

Feed-through terminal with tension spring connection for mounting on TS35, nominal cross section: 1.5 mm², width: 4.15 mm, color: grey

To the successor product

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	56.702.5153.0
article description	feed-through terminal WKF 1,5 D2/2/35
EAN	4015573731837
Minimum order quantitiy	50
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	275 mm
width packed	80 mm
height packed	40 mm
gross weight packed	391.5 g
volume packed	825 ccm
net weight single part	7.19 g
volume single part	17.6 ccm
packaging	cardboard
packaging quantity	50 piece(s)

certificates / approvals

general

nominal cross section	1.5 mm²
color	grey
number of levels	1
number of clamp positions per level	4
width/grid dimension	4.15 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	yes
mounting method	DIN rail (top hat rail) 35/7.5 mm
terminal blocks for electrical installations	yes
number of clamp positions per level	4
mounting method	DIN rail (top hat rail) 35/7.5 mm
inflammability class of insulation material acc. with UL94	V0
terminal blocks for electrical installations	yes

technical data

rated current	17.5 A
rated voltage	500 V
rated impulse voltage	6 kV
pollution degree	3
closing plate required	yes
length	72.2 mm
type of insulation material	thermoplastic
operating temperature	-40 bis 55 °C

connection data

connection type 2	spring clamp connection
connection type 1	spring clamp connection
minimum cross section solid	0.08 mm²
maximum cross section solid	1.5 mm²
minimum cross section fine stranded	0.08 mm²
maximum cross section fine stranded	1.5 mm²
wire strip length	10 mm

technical data UL/CSA

cross section UL	26-14 AWG
voltage UL	300 V
current factory wiring	15 A
current field wiring	15 A
cross section CSA	26-14 AWG
voltage CSA	300 V
current CSA	15 A

technical data ATEX

cross section fine-stranded	0,14 - 1,5
connectable conductor cross section solid	0,14 - 1,5
rated current	17.5/16.5 A**
rated voltage	440 V*
rated current	17.5 A
Rated current with jumper	16.5 A
rated voltage	440 V
rated voltage with jumper	352 V

classification

ETIM 5.0	feed-through terminal block
ECLASS 8.1	feed-through terminal block
ETIM 4.0	feed-through terminal block
ETIM 3.0	feed-through terminal block
ETIM 6.0	EC000897
ETIM 7.0	EC000897
ECLASS 11	27141120
ETIM 8.0	EC000897
ETIM 9.0	EC000897

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
Z7.268.0227.0	jumper bar IVB WKF 1,5- 2
07.312.8553.0	end plate APF 1,5 D2/2
Z4.243.2053.0	marking tag plate BZ/WKF 1,5/10
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm
Z7.268.0427.0	jumper bar IVB WKF 1,5- 4
04.243.2053.0	marking tag strips BZ/WKF 1,5
Z7.268.0327.0	jumper bar IVB WKF 1,5- 3
Z7.268.0527.0	jumper bar IVB WKF 1,5- 5
Z7.268.1027.0	jumper bar IVB WKF 1,5- 10
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm
Z7.268.2027.0	jumper bar IVB WKF 1,5- 20
98.380.0000.0	mounting rail TS 35x15-1,5 UNPERF CU - l:2000mm
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm

Documentation

Filename	Description	Filesize	File type
Mounting instructions	-	79.85kB	PDF
Data sheet	-	99.59kB	PDF
Tender specifications	-	1.24kB	HTM

Approbation

Filename	Description	Filesize	File type
EX information	-	15.24MB	ZIP
EC declaration of conformity	-	177.63kB	PDF
UKCA declaration of conformity	-	39.32kB	PDF
Certificate of conformity (ATEX)	-	94.66kB	PDF
Approval CSA	-	2.69MB	PDF
Approval cURus	-	4.42MB	PDF
Approval DEKRA-ATEX	-	2.15MB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF
RoHS certificate	-	197.18kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	44.92kB	PDF
Customer drawings (TIFF)	-	42.79kB	TIF
Customer drawings (DXF)	-	888.02kB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	150.91kB	PDF
CAD STEP data	-	371.10kB	STP
CAD IGES data	-	873.33kB	IGS
CAD JT data	-	2.60kB	JT

Software

Filename	Description	Filesize	File type
EPLAN P8 data	-	1.80MB	ZIP
