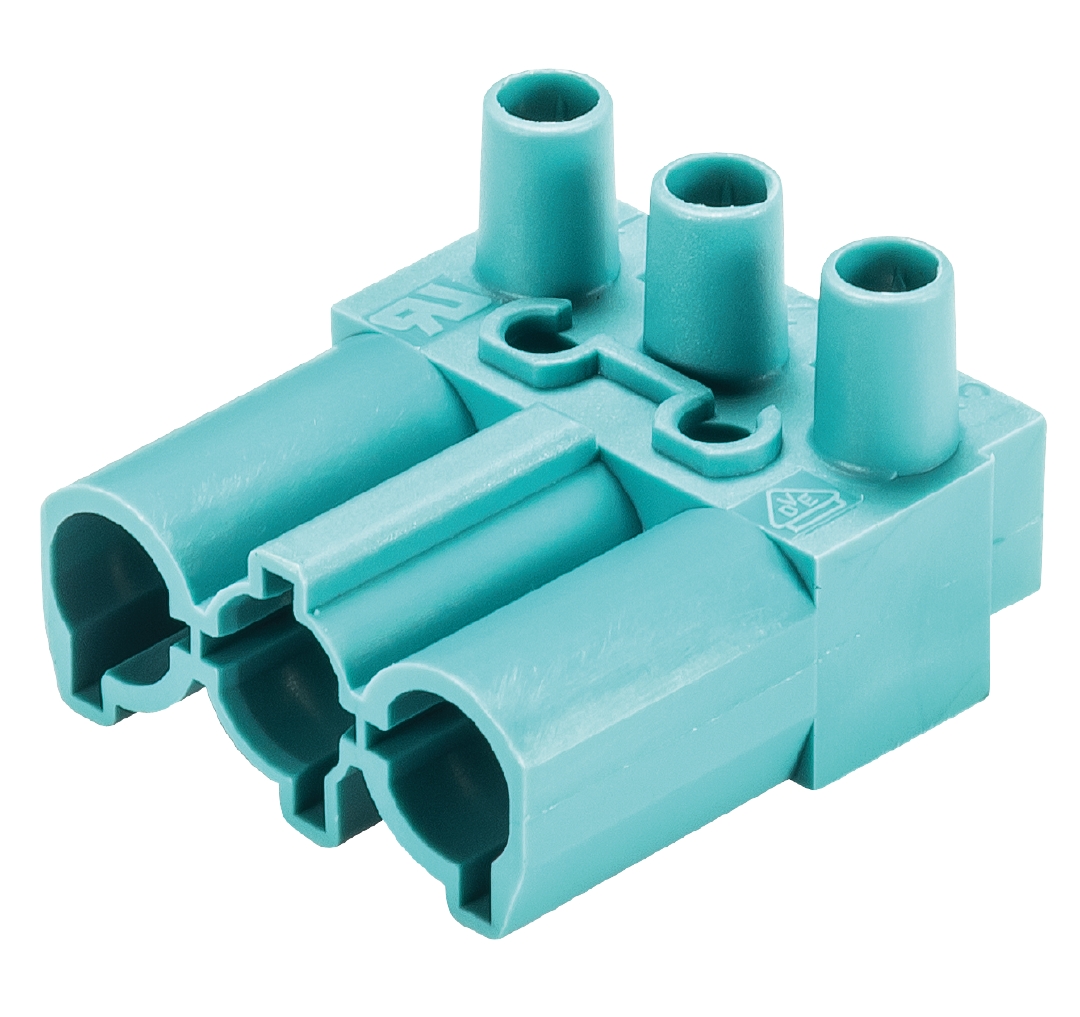

device connector GST18I3S S1 TB06
Article number 92.032.3958.0
gesis® CLASSIC device connector, built-in component, single screw connection, number of poles 3, model male, connection type screw connection, rated voltage 250 V, rated current 20 A, color of coding/ contact carrier turquoise blue
commercial data
|
article number
|
92.032.3958.0
|
|---|---|
|
article description
|
device connector GST18I3S S1 TB06
|
|
EAN
|
4049088231988
|
|
Minimum order quantitiy
|
1
|
|
country of origin
|
DE
|
|
customs tariff number
|
85366990
|
packaging dimensions
|
length packed
|
205 mm
|
|---|---|
|
width packed
|
180 mm
|
|
height packed
|
125 mm
|
|
gross weight packed
|
2376 g
|
|
volume packed
|
4612.5 ccm
|
|
net weight single part
|
11.38 g
|
|
volume single part
|
23.063 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
200 piece(s)
|
certificates / approvals
general
|
rated current
|
20 A
|
|---|---|
|
rated voltage
|
250 V
|
|
pollution degree
|
2
|
|
mechanical coding
|
code 6
|
|
rated impulse voltage
|
4 kV
|
|
lockable
|
self-locking (unlocking by tool)
|
|
color of coding/ contact carrier
|
turquoise blue
|
|
Pole codification
|
1, 2, 3
|
connection data
|
connection cross section solid mm² max.
|
4 mm²
|
|---|---|
|
connection cross section solid mm² min.
|
0.75 mm²
|
|
connection cross section fine stranded mm² max.
|
4 mm²
|
|
connection cross section fine stranded mm² min.
|
0.75 mm²
|
|
terminations per pole
|
1
|
|
wire strip length
|
7 mm
|
model
|
model
|
male
|
|---|---|
|
connection type
|
screw connection
|
|
angle of plug
|
straight
|
|
degree of protection (IP)
|
IP20
|
|
remark to type of connection
|
fine stranded wires 4 mm² only without ferrules
|
|
built-in component
|
built-in component/connector
|
material
|
housing material
|
polyamide
|
|---|---|
|
halogen free
|
yes
|
|
contact material
|
CuZn
|
|
fire load
|
0.038 kWh/St
|
|
insulation components continous temperature
|
100 °C
|
|
surface finish
|
tin-plated
|
dimensions
|
length
|
31.5 mm
|
|---|---|
|
width
|
28.2 mm
|
|
height
|
19.5 mm
|
classification
|
ETIM 5.0
|
device connection for plug-in building installation
|
|---|---|
|
ECLASS 8.1
|
device connection for plug-in building installation
|
|
ETIM 4.0
|
device connection for plug-in building installation
|
|
ETIM 6.0
|
EC002566
|
|
ETIM 7.0
|
EC002566
|
|
ECLASS 11
|
27440602
|
|
ETIM 8.0
|
EC002566
|
|
ETIM 9.0
|
EC002566
|
product compliance
|
ROHS conformity status
|
compliant/exempted
|
|---|---|
|
ROHS exceptions
|
III-6(c)
|
|
REACH-SVHC conformity status
|
Duty-To-Declare
|
|
REACH-SVHC substances
|
Plumbum
|
|
REACH-SVHC CAS numbers
|
7439-92-1
|
