hood BAS GOT GH 24H M25 A1

Article number 76.351.2435.1

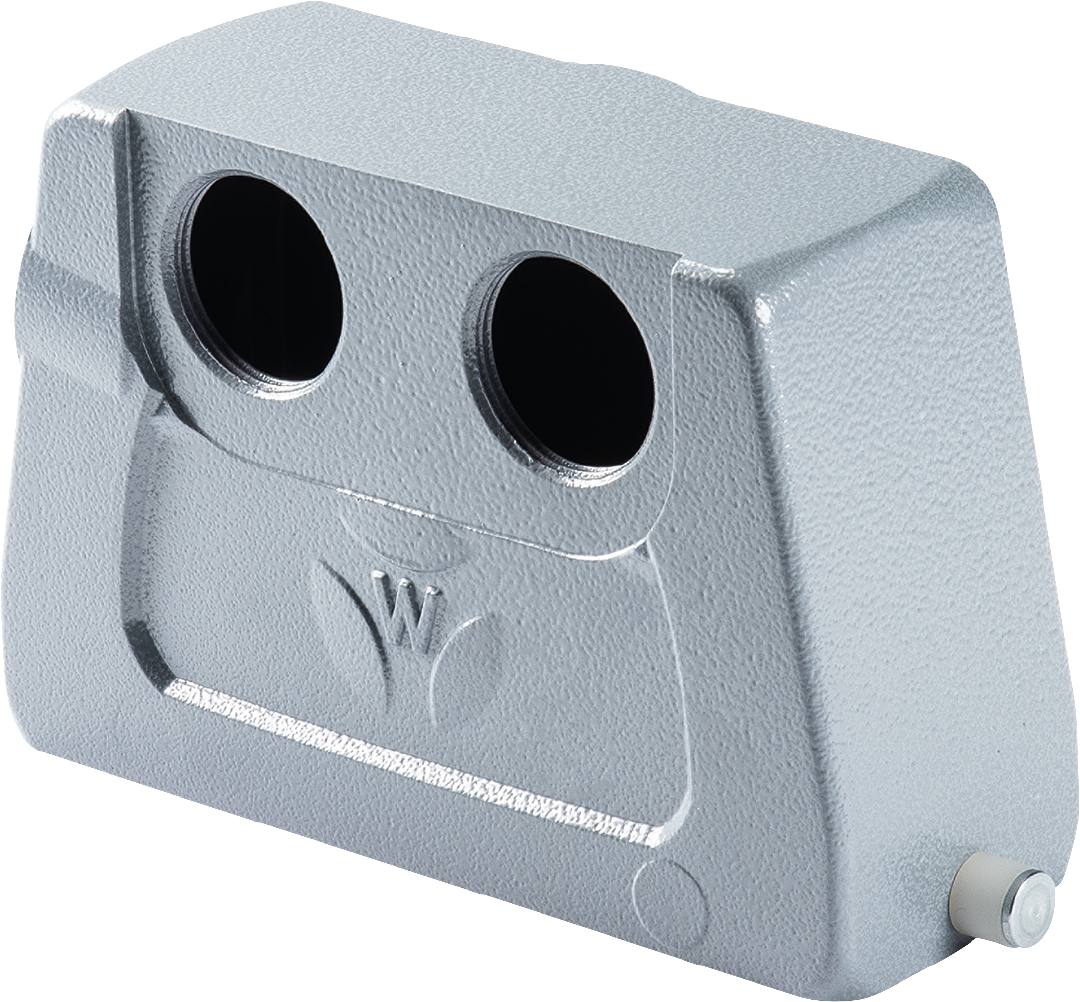

Hood revos basic made of aluminum, for single locking lever with threaded hole M25 on the front, low version, 24-poles

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Fits with

Downloads

Retailer

commercial data

article number	76.351.2435.1
article description	hood BAS GOT GH 24H M25 A1
EAN	4049088221736
Minimum order quantitiy	50
country of origin	DE
customs tariff number	85389099

packaging dimensions

length packed	250 mm
width packed	240 mm
height packed	43 mm
gross weight packed	242 g
volume packed	1000 ccm
net weight single part	201 g
volume single part	1000 ccm
packaging	bag
packaging quantity	1 piece(s)

general

housing material	aluminum
color	grey
surface	with powder coating
degree of protection (IP)	other
UV resistant	yes
inflammability class of insulation material acc. with UL94	other
operating temperature range min.	-40 °C
operating temperature range max.	120 °C

model

construction	24H
model of the housing	male
locking mechanism	single locking lever
cable entry	front side
type of cable	thread
with cable screw gland	no
thread size M	25
hinged lid	no
EMC-version	no
thread size PG
length	120 mm
width	43 mm
height	76 mm

classification

ETIM 5.0	housing for industrial connectors
ECLASS 8.1	housing for industrial connectors
ETIM 4.0	housing for industrial connectors
ETIM 3.0	housing for industry plug connectors
ETIM 6.0	EC000437
ETIM 7.0	EC000437
ECLASS 11	27440202
ETIM 8.0	EC000437
ETIM 9.0	EC000437

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Fits with

Article number	Article-type description	Price	Quantity
70.405.2453.0	female insert BAS BUP 24 2,5 50 AG
73.810.0853.0	male insert DD STC 108 1,5 25
70.310.2440.0	male insert BAS STS 24 2,5 50
70.415.2453.0	male insert BAS STP 24 2,5 50 AG
70.400.1640.0	female insert BAS BUS 16 2,5 64
73.710.6458.0	male insert HD STC 64 25
70.500.2453.0	female insert BAS BUF 24 2,5 50
70.410.1640.0	male insert BAS STS 16 2,5 64
72.700.2458.0	female insert BAS BUC 24 69
70.300.2402.0	female insert BAS BUS 24 2,5 50 AG
70.510.2453.0	male insert BAS STF 24 2,5 50
72.206.1253.0	female insert POW BUS 4/8 NL BB AG
70.311.2440.0	male insert BAS STS 24 2,5 50 AU
72.310.2453.0	male insert BAS STS 24 2,5 69
73.800.0853.0	female insert DD BUC 108 1,5 25
70.301.2440.0	female insert BAS BUS 24 2,5 50 AU
70.302.2440.0	female insert BAS BUS OD 24 2,5 50
72.300.2453.0	female insert BAS BUS 24 2,5 69
70.400.1040.0	female insert BAS BUS 10 2,5 64
72.216.1253.0	male insert POW STS 4/8 NL BB AG
70.310.2402.0	male insert BAS STS 24 2,5 50 AG
72.710.2458.0	male insert BAS STC 24 69
70.810.4656.0	male insert BAS STCK 46 50
70.502.2453.0	female insert BAS BUM 24 2,5 50 AG
70.710.2458.0	male insert BAS STC 24 50
70.410.1040.0	male insert BAS STS 10 2,5 64
70.312.2440.0	male insert BAS STS OD 24 2,5 50
73.700.6458.0	female insert HD BUC 64 25
70.800.4656.0	female insert BAS BUCK 46 50 PC
70.700.2458.0	female insert BAS BUC 24 50
70.512.2453.0	male insert BAS STM 24 2,5 50 AG
70.300.2440.0	female insert BAS BUS 24 2,5 50

Documentation

Filename	Description	Filesize	File type
Data sheet	-	111.03kB	PDF

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	45.12kB	PDF
UKCA declaration of conformity	-	39.31kB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF
RoHS certificate	-	197.29kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	41.84MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	76.58kB	PDF
Customer drawings (TIFF)	-	74.65kB	TIF
Customer drawings (DXF)	-	3.51MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	238.01kB	PDF
CAD STEP data	-	391.76kB	STP
CAD IGES data	-	1.15MB	IGS
CAD JT data	-	270.48kB	JT
