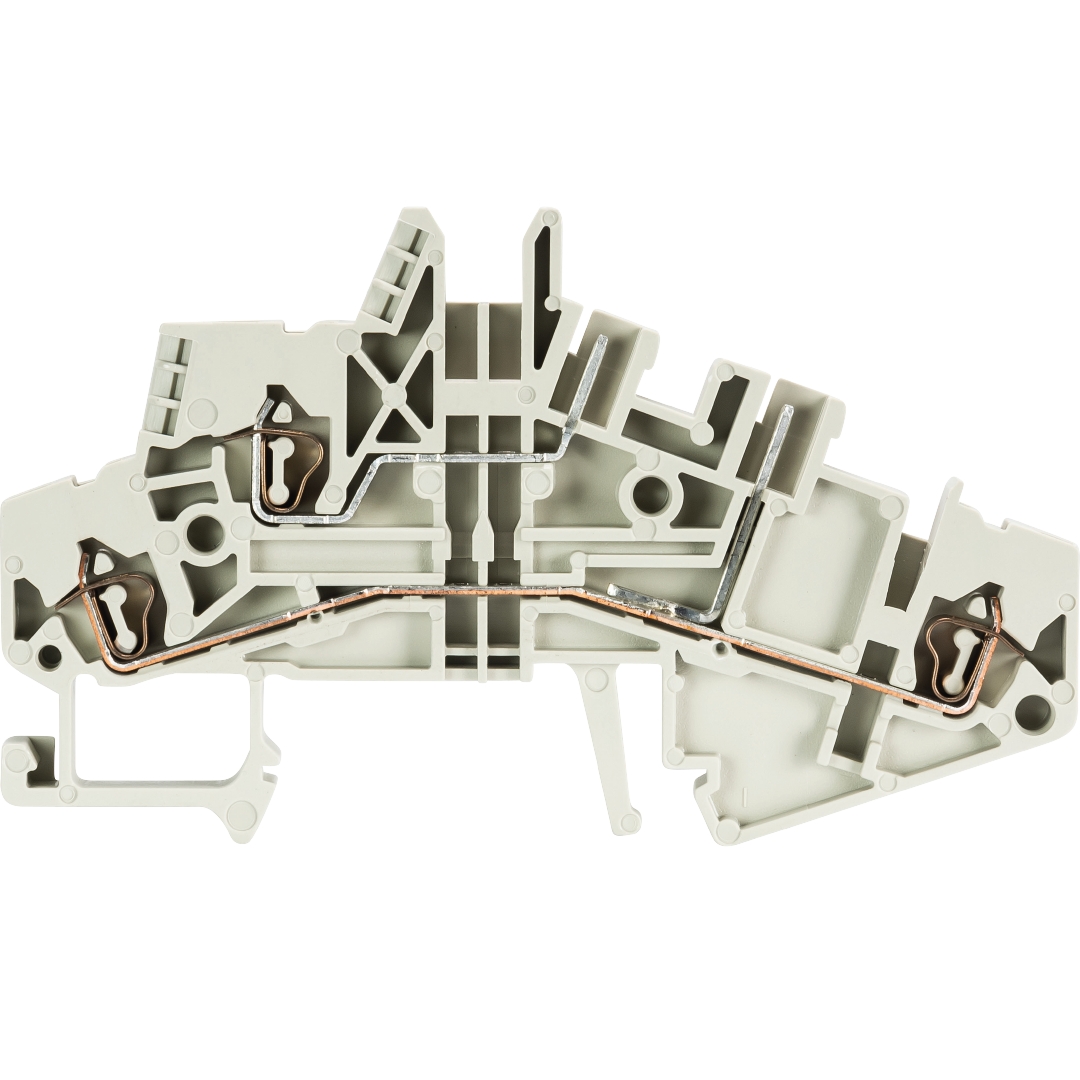

multi-tier terminal WKF 1,5E/8113/35

NO LONGER AVAILABLE

Article number 56.702.2053.0

Duo Feed-through terminal with Plug in connection for mounting on TS 35, nominal cross section: 1.5 mm², width: 5 mm, color: grey

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	56.702.2053.0
article description	multi-tier terminal WKF 1,5E/8113/35
EAN	4015573582590
Minimum order quantitiy	100
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	268 mm
width packed	175 mm
height packed	55 mm
gross weight packed	1033.6 g
volume packed	2580 ccm
net weight single part	10.1 g
volume single part	25.8 ccm
packaging	cardboard
packaging quantity	100 piece(s)

certificates / approvals

general

nominal cross section	1.5 mm²
color	grey
number of levels	2
number of clamp positions per level	2
width/grid dimension	5 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	no
mounting method	DIN rail (top hat rail) 35/7.5 mm
terminal blocks for electrical installations	yes
number of clamp positions per level	2
mounting method	DIN rail (top hat rail) 35/7.5 mm
inflammability class of insulation material acc. with UL94	V0
terminal blocks for electrical installations	yes

technical data

rated current	16 A
rated voltage	250 V
rated impulse voltage	4 kV
pollution degree	3
closing plate required	yes
length	83.4 mm
type of insulation material	thermoplastic
operating temperature	-40 bis 55 °C

connection data

connection type 2	spring clamp connection
connection type 1	plug-in connection
minimum cross section solid	0.13 mm²
maximum cross section solid	2.5 mm²
minimum cross section fine stranded	0.13 mm²
maximum cross section fine stranded	1.5 mm²
wire strip length	8 mm

technical data UL/CSA

cross section UL	22-14 AWG
voltage UL	300 V
current factory wiring	12 A
current field wiring	12 A
cross section CSA	24-12 AWG
voltage CSA	300 V
current CSA	15 A

classification

ETIM 5.0	feed-through terminal block
ECLASS 8.1	feed-through terminal block
ETIM 4.0	feed-through terminal block
ETIM 3.0	feed-through terminal block
ETIM 6.0	EC000897
ETIM 7.0	EC000897
ECLASS 11	27141120
ETIM 8.0	EC000897
ETIM 9.0	EC000897

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
04.242.5053.0	marking tag strips 9705 A / 5 / 10
Z7.280.6327.0	jumper bar IVBWKF 2,5- 3
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm
07.312.4753.0	end plate APF 1,5E/8113
Z7.280.6227.0	jumper bar IVBWKF 2,5- 2
Z7.280.7027.0	jumper bar IVBWKF 2,5- 10
04.343.8353.8	warning cover ADF.../4 GELB
Z7.280.6727.0	jumper bar IVBWKF 2,5- 7
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm
98.380.0000.0	mounting rail TS 35x15-1,5 UNPERF CU - l:2000mm
Z7.280.6427.0	jumper bar IVBWKF 2,5- 4
Z7.280.8027.0	jumper bar IVBWKF 2,5- 20
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm
Z7.280.6627.0	jumper bar IVBWKF 2,5- 6
Z7.280.6827.0	jumper bar IVBWKF 2,5- 8
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm
Z7.280.7227.0	jumper bar IVBWKF 2,5- 12
Z7.280.7127.0	jumper bar IVBWKF 2,5- 11
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm
Z7.280.6927.0	jumper bar IVBWKF 2,5- 9
Z7.280.6527.0	jumper bar IVBWKF 2,5- 5

Documentation

Filename	Description	Filesize	File type
Data sheet	-	118.14kB	PDF
Tender specifications	-	1.23kB	HTM

Approbation

Filename	Description	Filesize	File type
EC declaration of conformity	-	177.63kB	PDF
UKCA declaration of conformity	-	39.32kB	PDF
Approval UR	-	180.24kB	PDF
Approval CSA	-	2.69MB	PDF

Product compliance

Filename	Description	Filesize	File type
REACH-SVHC certificate	-	196.96kB	PDF
RoHS certificate	-	197.29kB	PDF

Marketing

Filename	Description	Filesize	File type
Catalogues	-	18.17MB	PDF

Drawings

Filename	Description	Filesize	File type
Customer drawings	-	64.78kB	PDF
Customer drawings (TIFF)	-	62.71kB	TIF
Customer drawings (DXF)	-	1.21MB	DXF

CAD model

Filename	Description	Filesize	File type
3D product images	-	140.36kB	PDF
CAD STEP data	-	742.00kB	STP
CAD IGES data	-	1.95MB	IGS
CAD JT data	-	376.77kB	JT

Software

Filename	Description	Filesize	File type
EPLAN P8 data	-	1.80MB	ZIP
